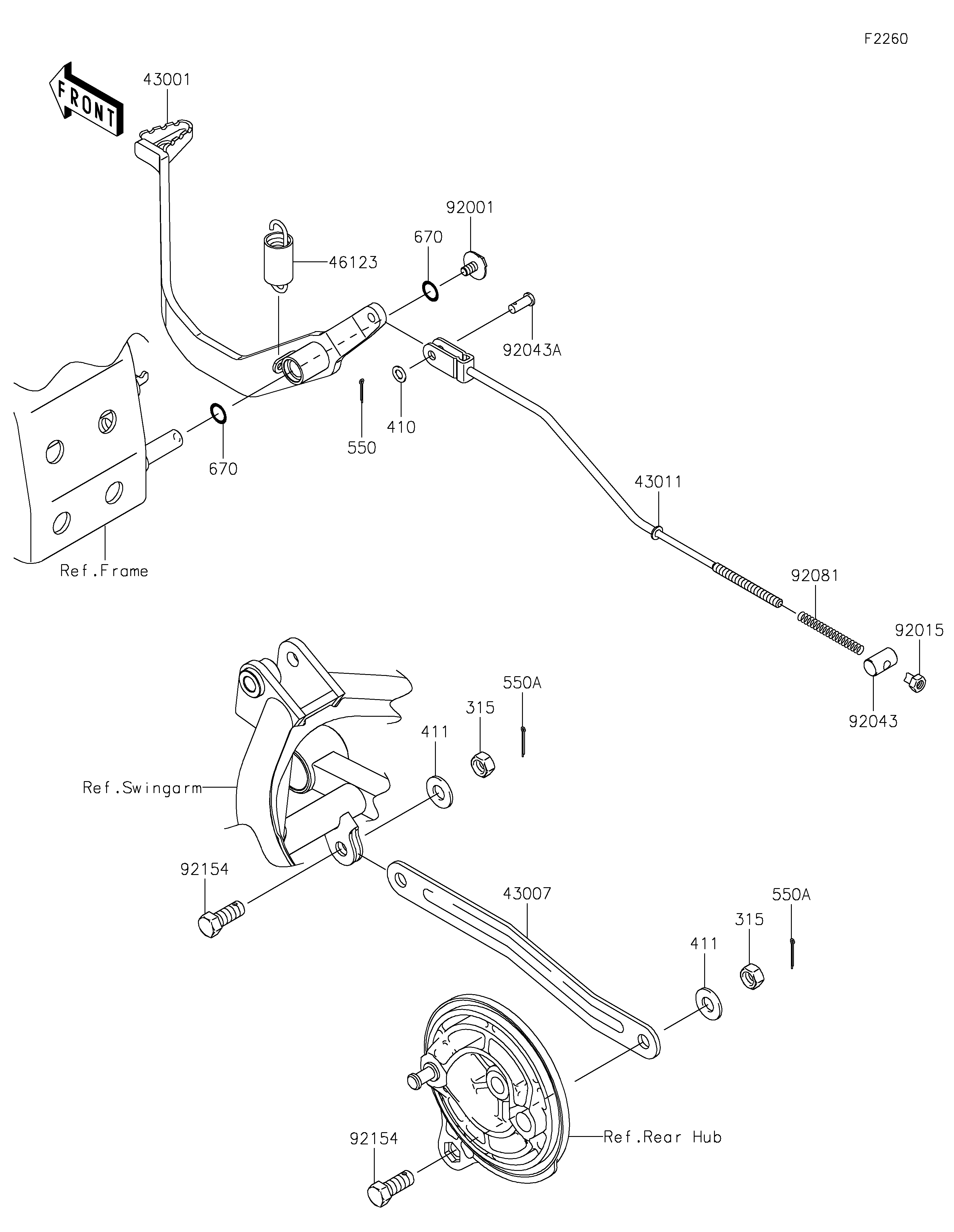

2021 KLX®110R - Brake Pedal

DOWNLOAD PDF
SELECT A NEW PART
43001
43007
43011
46123
92001
92015
92043
92043A
92081
92154
92154
315
315
410
411
411
550
550A
550A
670
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-BRAKE,PEDAL 43001 43001-0122 1
ROD-TORQUE 43007 43007-0015 1
ROD-BRAKE 43011 43011-0010 1
SPRING-COMP,BRAKE PEDAL RETURN 46123 46123-1060 1
BOLT,FLANGED,6X10 92001 92001-1034 1
NUT,BRAKE ROD 92015 92015-042 1
PIN,BRAKE ROD 92043 92043-0147 1
PIN,6X12.8 92043A 92043-1542 1
SPRING,BRAKE ROD 92081 92081-1688 1
BOLT,10X25 92154 92154-4368 2
NUT-HEX-FINE,10MM 315 315BA1000 2
WASHER-PLAIN-SMALL 410 410AA0600 1
WASHER-PLAIN,10MM 411 411AA1000 2
PIN-COTTER,2.0X15 550 550AA2015 1
PIN-COTTER,2.0X20 550A 550AA2020 2
O RING,12MM 670 670B2012 2
