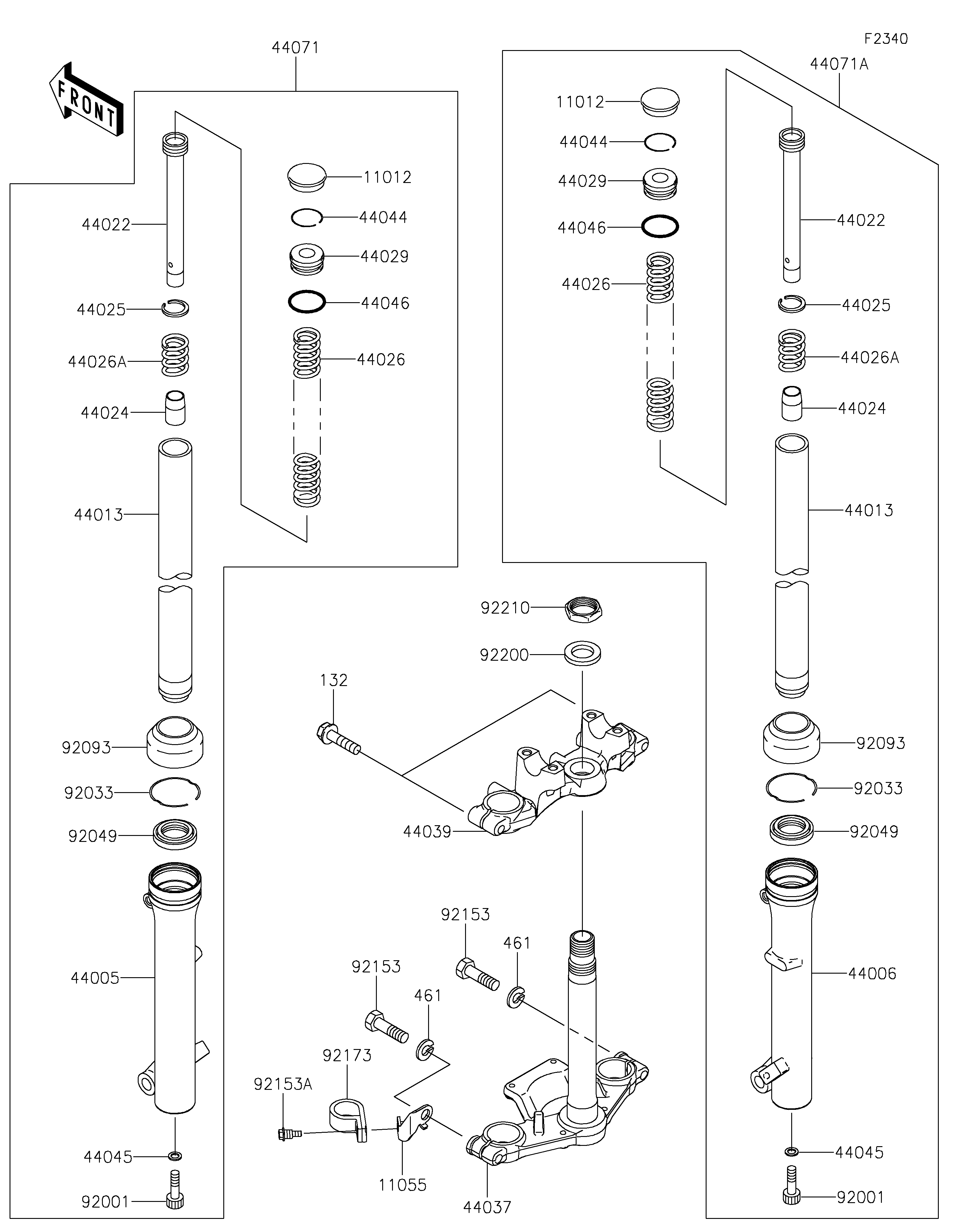

2021 KLX®110R - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11055
44005
44006
44013
44013
44022
44022
44024
44024
44025
44025
44026
44026
44026A
44026A
44029
44029
44037
44039
44044
44044
44045
44045
44046
44046
44071
44071A
92001
92001
92033
92033
92049
92049
92093
92093
92153
92153
92153A
92173
92200
92210
132
461
461
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,RUBBER,FORK TOP 11012 11012-1067 2
BRACKET 11055 11055-1631 1
PIPE-LEFT FORK OUTER,P.SILVER 44005 44005-0039-458 1
PIPE-RIGHT FORK OUTER,P.SILVER 44006 44006-0038-458 1
PIPE-FORK INNER 44013 44013-0018 2
CYLINDER-FORK 44022 44022-1346 2
CAP-OIL-LOCK 44024 44024-1071 2
RING-FORK PISTON 44025 44025-1061 2
SPRING-FRONT FORK 44026 44026-0147 2
SPRING-FRONT FORK,REBOUND 44026A 44026-060 2
SEAT-FORK SPRING 44029 44029-022 2
HOLDER-FORK UNDER,P.SILVER 44037 44037-0105-458 1
HOLDER-FORK UPPER 44039 44039-0093 1
RING-SNAP 44044 44044-023 2
GASKET,FORK CYLINDER BOLT 44045 44045-051 2
RING-O 44046 44046-025 2
DAMPER-ASSY,FORK,LH,P.SILVER 44071 44071-1443-458 1
DAMPER-ASSY,FORK,RH,P.SILVER 44071A 44071-1444-458 1
BOLT,FORK CYLINDER 92001 92001-1464 2
RING-SNAP,FORK OUTER TUBE 92033 92033-1028 2
SEAL-OIL,FORK OUTER TUBE 92049 92049-1069 2
DUST SHIELD,FORK 92093 92093-1054 2
BOLT,10X35 92153 92153-1199 2
BOLT,FLANGED 92153A 92153-1397 1
CLAMP 92173 92173-0166 1
WASHER,STEERING STEM 92200 92200-0517 1
NUT,STEERING STEM,22MM 92210 92210-1521 1
BOLT-FLANGED-SMALL,8X35 132 132BA0835 2
WASHER-SPRING,10MM 461 461DA1000 2
