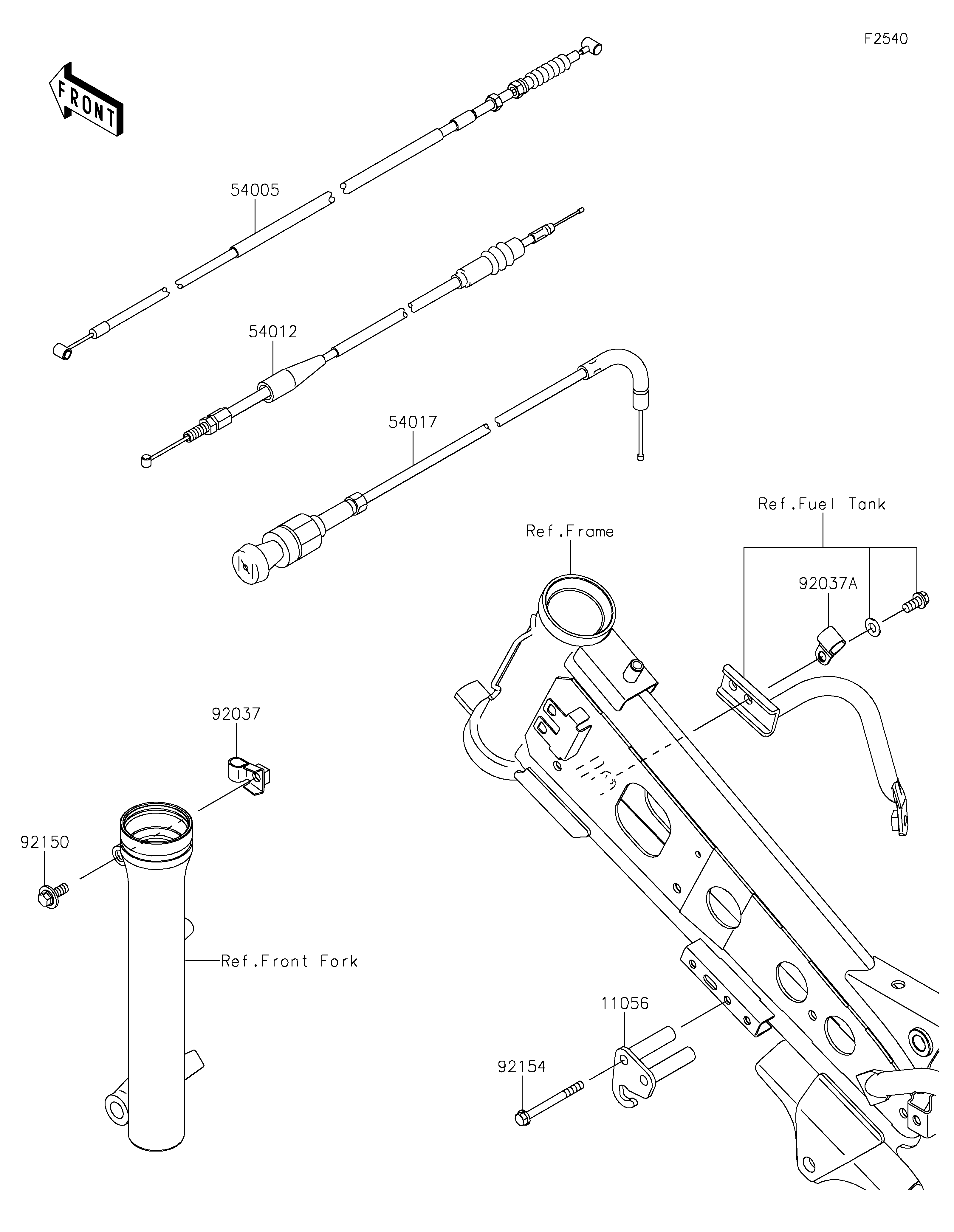

11056
54005
54012
54017
92037
92037A
92150
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CHOKE 11056 11056-0151 1
CABLE-BRAKE 54005 54005-0026 1
CABLE-THROTTLE 54012 54012-0643 1
CABLE-STARTER 54017 54017-1218 1
CLAMP,BRAKE CABLE 92037 92037-1353 1
CLAMP 92037A 92037-1608 1
BOLT,FLANGED,6X16 92150 92150-1506 1
BOLT,FLANGED,5X53 92154 92154-0374 2
