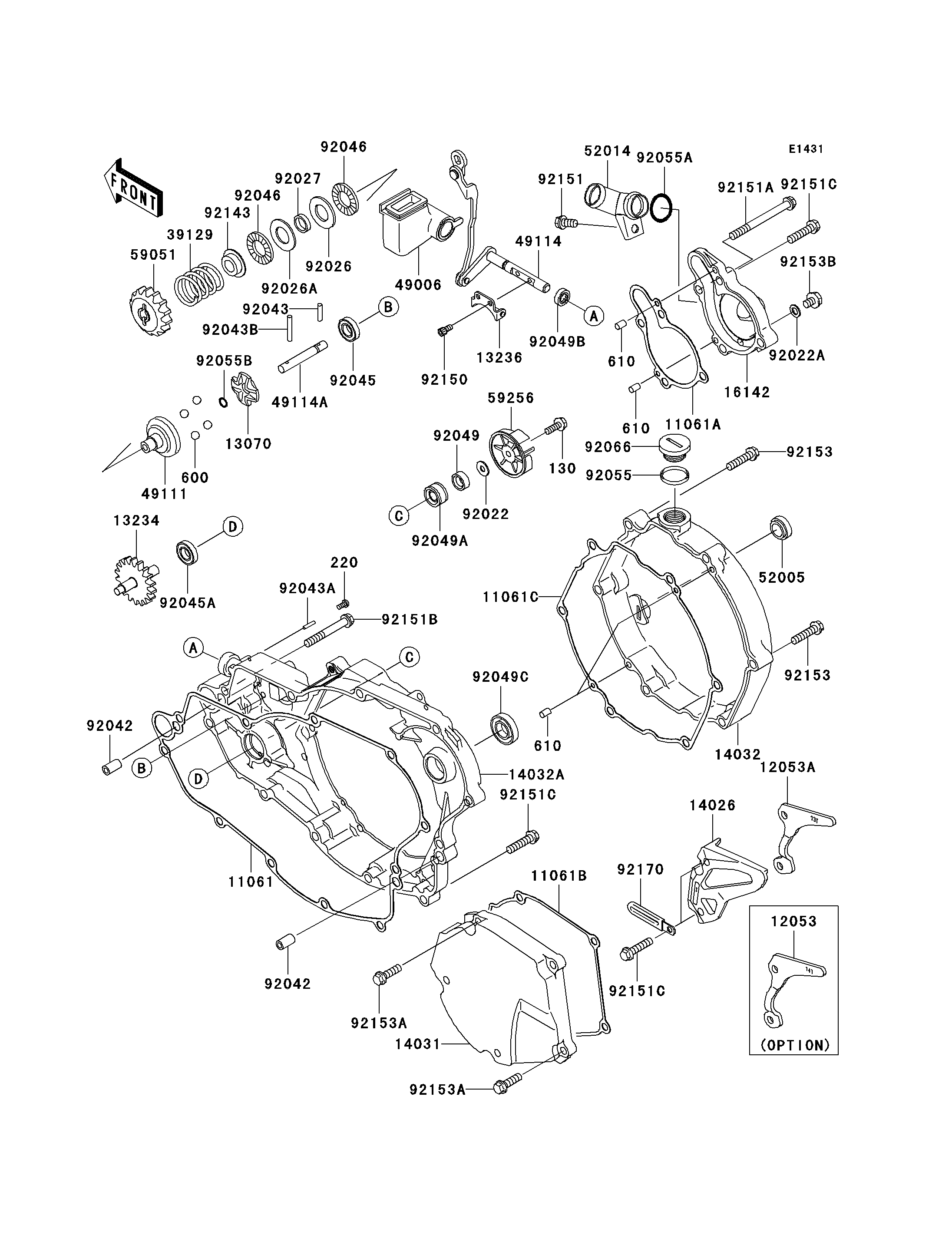

2005 KX250 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061
11061A
11061A
11061B
11061B
11061C
11061C
12053
12053
12053A
12053A
13070
13070
13234
13234
13236
13236
14026
14026
14031
14031
14032
14032
14032A
14032A
16142
16142
39129
39129
49006
49006
49111
49111
49114
49114
49114A
49114A
52005
52005
52014
52014
59051
59051
59256
59256
92022
92022
92022A
92022A
92026
92026
92026A
92026A
92027
92027
92042
92042
92042
92042
92043
92043
92043A
92043A
92043B
92043B
92045
92045
92045A
92045A
92046
92046
92046
92046
92049
92049
92049A
92049A
92049B
92049B
92049C
92049C
130
130
220
220
600
600
610
610
610
610
610
610
92055
92055
92055A
92055A
92055B
92055B
92066
92066
92143
92143
92150
92150
92151
92151
92151A
92151A
92151B
92151B
92151C
92151C
92151C
92151C
92151C
92151C
92153
92153
92153
92153
92153A
92153A
92153A
92153A
92153B
92153B
92170
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CLUTCH COVER,IN 11061 11061-0095 1
GASKET,PUMP COVER 11061A 11061-0097 1
GASKET,GENERATOR COVER 11061B 11061-0098 1
GASKET,CLUTCH COVER,OUTER 11061C 11061-0144 1
GUIDE-CHAIN,FOR 14T 12053 12053-0033 1 (OPTION)
GUIDE-CHAIN,FOR 13T 12053A 12053-0035 1
GUIDE 13070 13070-1206 1
SHAFT-COMP 13234 13234-0016 1
LEVER-COMP,GOVERNOR 13236 13236-1266 1
COVER-CHAIN 14026 14026-0010 1
COVER-GENERATOR 14031 14031-0022 1
COVER-CLUTCH,OUTER 14032 14032-0051 1
COVER-CLUTCH,INNER 14032A 14032-0052 1
COVER-PUMP 16142 16142-0013 1
SPRING-GOVERNOR 39129 39129-0002 1
BOOT 49006 49006-0015 1
HOLDER-GOVERNOR WEIGHT 49111 49111-0001 1
SHAFT-GOVERNOR 49114 49114-0001 1
SHAFT-GOVERNOR 49114A 49114-1074 1
GAUGE,OIL LEVEL 52005 52005-1055 1
ELBOW 52014 52014-0003 1
GEAR-SPUR,GOVERNOR 59051 59051-1399 1
IMPELLER 59256 59256-0004 1
WASHER,5.2X13X1 92022 92022-1380 1
WASHER,6.2X11X1 92022A 92022-304 1
SPACER,T=2.0 92026 92026-1501 1
SPACER,T=1.5 92026A 92026-1590 1
COLLAR,15.2X17X4 92027 92027-1839 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,3X12.8 92043 92043-1256 1
PIN,2X9.8 92043A 92043-1293 1
PIN,3X19.8 92043B 92043-1319 1
BEARING-BALL,#628 92045 92045-1123 1
BEARING-BALL,608MC3 92045A 92045-1305 1
BEARING-NEEDLE 92046 92046-1252 2
SEAL-OIL,MA8.0N2 92049 92049-0033 1
SEAL-OIL 92049A 92049-0034 1
SEAL-OIL,SDO8144 92049B 92049-1207 1
SEAL-OIL,A80984H0 KICK SHAFT 92049C 92049-1594 1
BOLT-FLANGED 130 130P0514 1
SCREW-PAN-CROS 220 220B0306 1
BALL-STEEL,3/8" 600 600A1200 4
ROLLER,4X8 610 610A0408 4
RING-O 92055 92055-1146 1
RING-O,18.8X2.4 92055A 92055-1308 1
RING-O,5.5X1.5 92055B 92055-1343 1
PLUG 92066 92066-1456 1
COLLAR 92143 92143-1593 1
BOLT,SOCKET,4X8 92150 92150-1888 2
BOLT,6X12 92151 92151-1133 1
BOLT,6X65 92151A 92151-1199 1
BOLT,6X45 92151B 92151-1336 1
BOLT,6X25 92151C 92151-1930 14
BOLT,6X25 92153 92153-0604 6
BOLT,6X20 92153A 92153-0631 5
BOLT,6X8 92153B 92153-0860 1
CLAMP 92170 92170-1514 2
