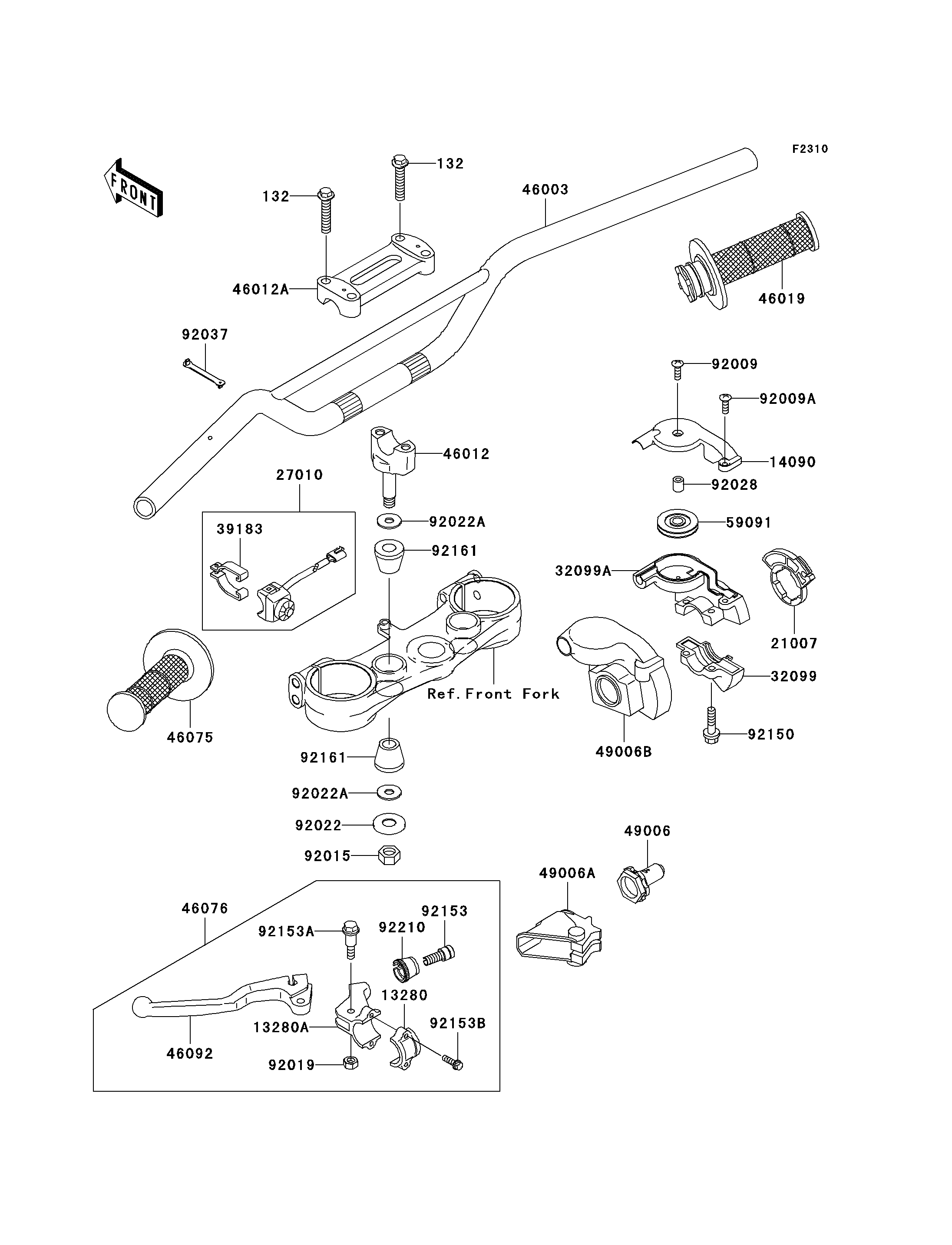

2005 KX250 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
132
132
13280
13280A
14090
21007
27010
32099
32099A
39183
46003
46012
46012A
46019
46075
46076
46092
49006
49006A
49006B
59091
92009
92009A
92015
92019
92022
92022A
92022A
92028
92037
92150
92153
92153A
92153B
92161
92161
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0830 4
HOLDER 13280 13280-0055 1
HOLDER,CLUTCH LEVER 13280A 13280-0118 1
COVER,THROTTLE CASE,UPP 14090 14090-1161 1
ROTOR,THROTTLE 21007 21007-1242 1
SWITCH,ENGINE STOP 27010 27010-0035 1
CASE,THROTTLE,LWR 32099 32099-1138 1
CASE,THROTTLE,UPP 32099A 32099-1168 1
BAND-ASSY,ENGINE STOP SWITCH 39183 39183-1059 1
HANDLE,P.SILVER 46003 46003-0036-458 1
HOLDER-HANDLE,LWR,P.SILVER 46012 46012-0013-458 2
HOLDER-HANDLE,UPP,P.SILVER 46012A 46012-0017-458 1
GRIP-ASSY,THROTTLE 46019 46019-1125 1
GRIP,LH 46075 46075-1213 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0019 1
LEVER-GRIP,CLUTCH 46092 46092-0007 1
BOOT,CLUTCH CABLE 49006 49006-0027 1
BOOT,CLUTCH LEVER 49006A 49006-0030 1
BOOT,THROTTLE 49006B 49006-1301 1
PULLEY,THROTTLE 59091 59091-1102 1
SCREW 92009 92009-1674 1
SCREW 92009A 92009-1675 1
NUT,LOCK,10MM 92015 92015-1962 2
NUT,LOCK,6MM 92019 92019-008 1
WASHER,10.2X28X2 92022 92022-1088 2
WASHER 92022A 92022-1737 4
BUSHING,THROTTLE CASE 92028 92028-1658 1
CLAMP,SPEED,L=43 92037 92037-1290 1
BOLT 92150 92150-1559 2
BOLT,BOLT ADJUSTING 92153 92153-0773 1
BOLT 92153A 92153-0807 1
BOLT,5X16 92153B 92153-0808 2
DAMPER,HANDLE HOLDER 92161 92161-0113 4
NUT,BOLT WIRE ADJUSTING 92210 92210-0167 1
