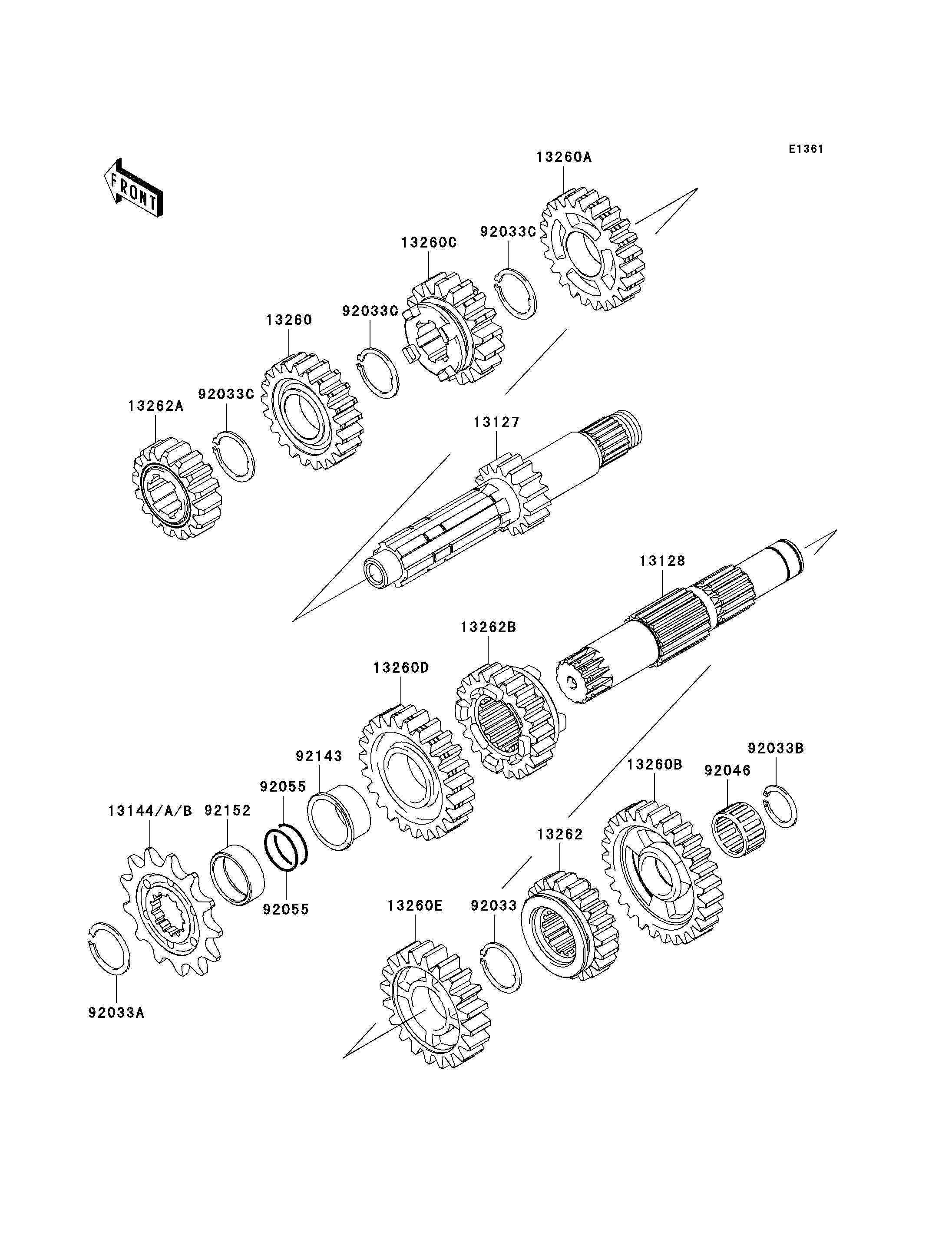

2007 KX250 - Transmission

DOWNLOAD PDF
SELECT A NEW PART
13127
13128
13144
13144A
13144B
13260
13260A
13260B
13260C
13260D
13260E
13262
13262A
13262B
92033
92033A
92033B
92033C
92033C
92033C
92046
92055
92055
92143
92152
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-TRANSMISSION INPUT,15T 13127 13127-1303 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-0011 1
SPROCKET-OUTPUT,13T 13144 13144-1294 1
SPROCKET-OUTPUT,14T 13144A 13144-1295 1 (OPTION)
SPROCKET-OUTPUT,15T 13144B 13144-1296 1 (OPTION)
GEAR,INPUT 4TH,21T 13260 13260-1928 1
GEAR,INPUT TOP,23T 13260A 13260-1929 1
GEAR,OUTPUT LOW,27T 13260B 13260-1930 1
GEAR,INPUT 3RD,17T 13260C 13260-1964 1
GEAR,OUTPUT 2ND,23T 13260D 13260-1965 1
GEAR,OUTPUT 3RD,20T 13260E 13260-1966 1
GEAR,OUTPUT TOP,20T 13262 13262-0141 1
GEAR,INPUT 2ND,16T 13262A 13262-0186 1
GEAR,OUTPUT 4TH,21T 13262B 13262-0219 1
RING-SNAP,25MM 92033 92033-0025 1
RING-SNAP,24MM 92033A 92033-026 1
RING-SNAP,18MM 92033B 92033-029 1
RING-SNAP,25MM 92033C 92033-1089 3
BEARING-NEEDLE,KT202614 92046 92046-1170 1
RING-O 92055 92055-035 2
COLLAR 92143 92143-1361 1
COLLAR,SPROCKET 92152 92152-0183 1
