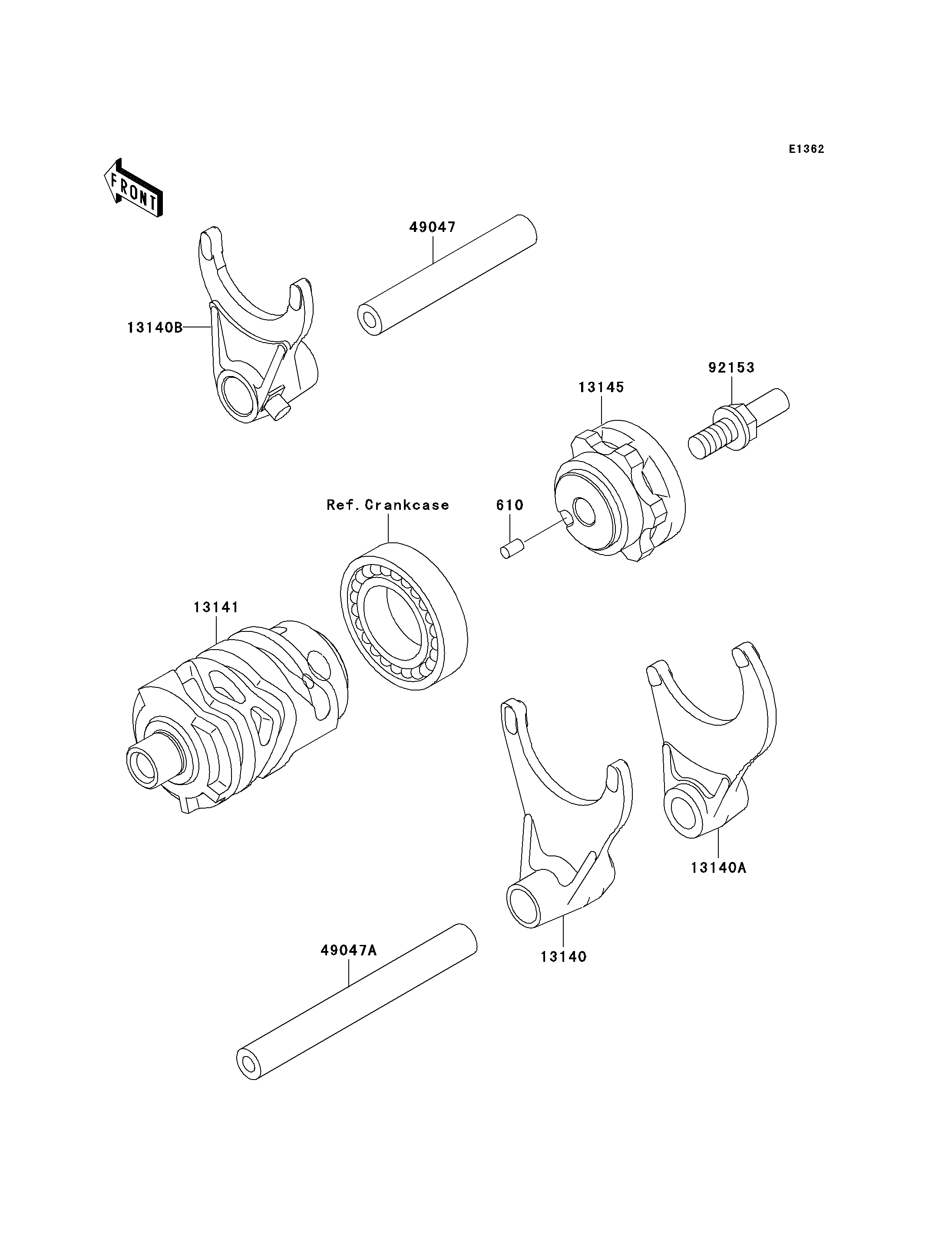

610
13140
13140A
13140B
13141
13145
49047
49047A
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROLLER,4X8 610 610A0408 1
FORK-SHIFT,OUT LH 13140 13140-1295 1
FORK-SHIFT,OUT RH 13140A 13140-1296 1
FORK-SHIFT,IN 13140B 13140-1312 1
DRUM-CHANGE 13141 13141-0008 1
CAM-CHANGE DRUM 13145 13145-1095 1
ROD-SHIFT,L=64.5 49047 49047-1107 1
ROD-SHIFT,L=90 49047A 49047-1108 1
BOLT,8X20 92153 92153-0530 1
