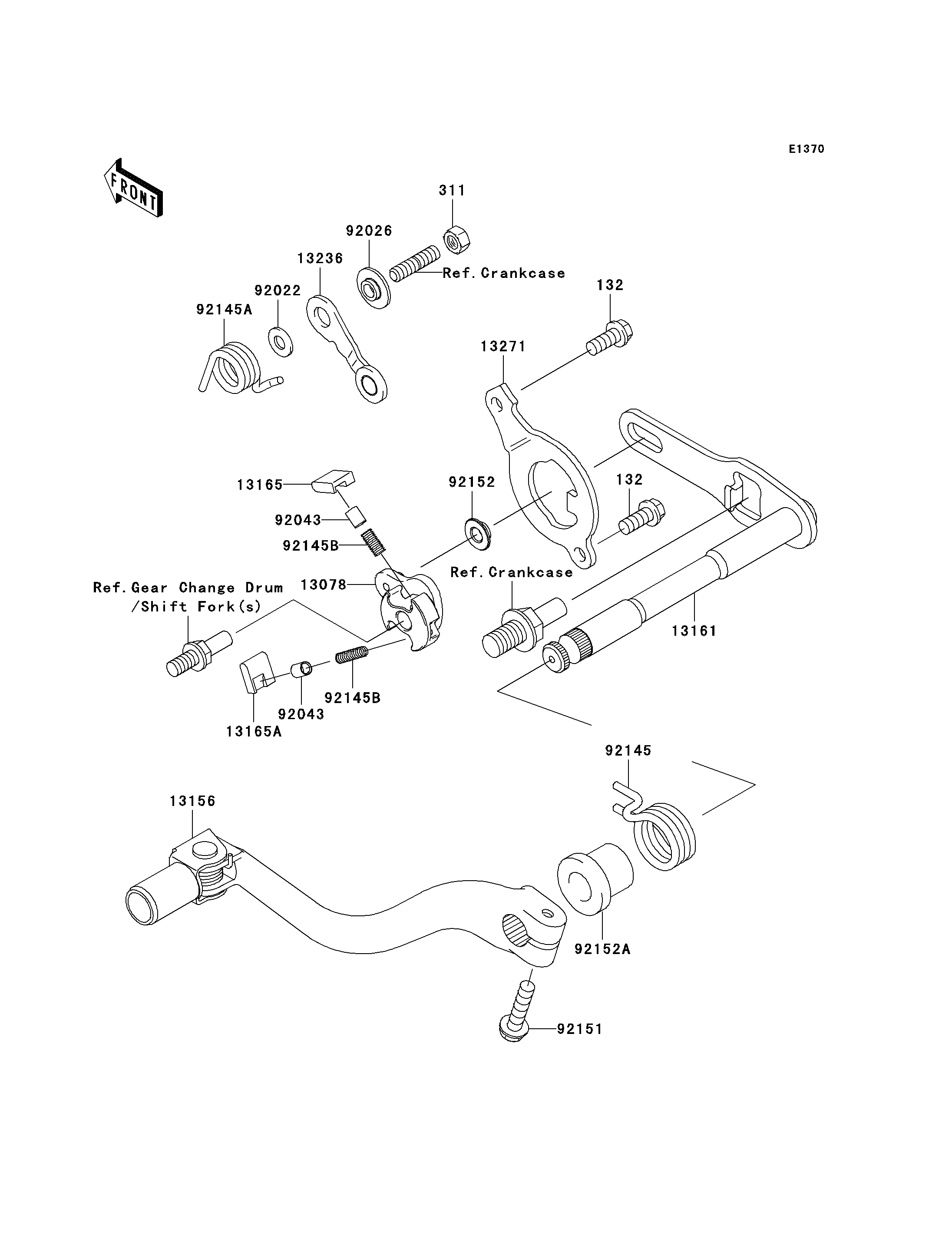

Parts Diagrams |
132
132
311
13078
13156
13161
13165
13165A
13236
13271
92022
92026
92043
92043
92145
92145A
92145B
92145B
92151
92152
92152A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL,6X14 | 132 | 132G0614 | 2 | ||
NUT-HEX,6MM | 311 | 311G0600 | 1 | ||
RATCHET | 13078 | 13078-1070 | 1 | ||
LEVER-CHANGE,PEDAL | 13156 | 13156-0049 | 1 | ||
LEVER-COMP-CHANGE SHAFT | 13161 | 13161-0029 | 1 | ||
PAWL | 13165 | 13165-1162 | 1 | ||
PAWL | 13165A | 13165-1163 | 1 | ||
LEVER-COMP | 13236 | 13236-1391 | 1 | ||
PLATE | 13271 | 13271-1968 | 1 | ||
WASHER,6X12.8X1.2 | 92022 | 92022-1827 | 1 | ||
SPACER | 92026 | 92026-1217 | 1 | ||
PIN,PLUNGER | 92043 | 92043-1676 | 2 | ||
SPRING,RETURN | 92145 | 92145-1488 | 1 | ||
SPRING,POSITION | 92145A | 92145-1489 | 1 | ||
SPRING | 92145B | 92145-1490 | 2 | ||
BOLT,FLANGED-SMALL,6X25 | 92151 | 92151-1930 | 1 | ||
COLLAR | 92152 | 92152-1414 | 1 | ||
COLLAR,SPRING SUPPORT | 92152A | 92152-1417 | 1 |
