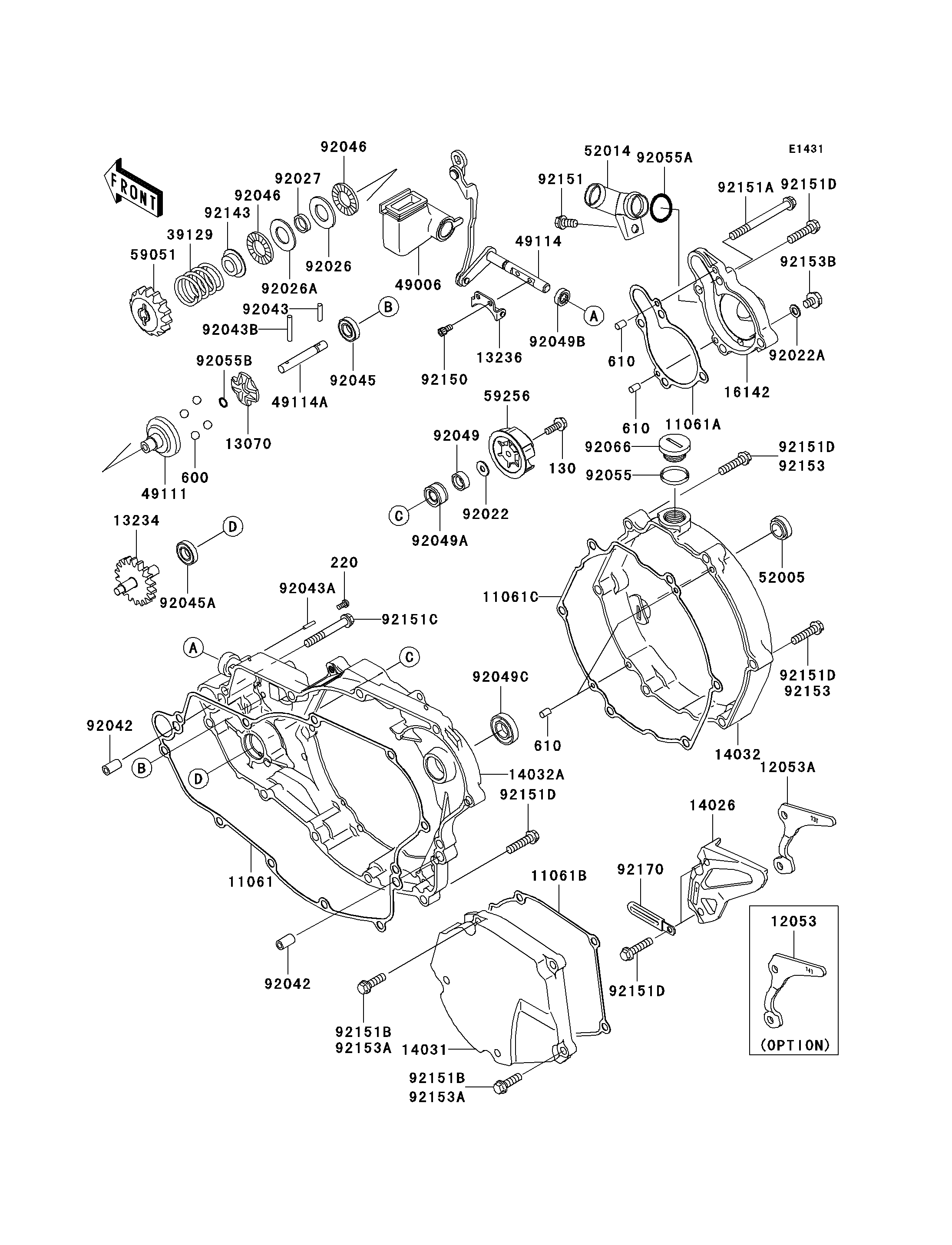

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,CLUTCH COVER,IN | 11061 | 11061-0095 | 1 | ||
GASKET,PUMP COVER | 11061A | 11061-0097 | 1 | ||
GASKET,GENERATOR COVER | 11061B | 11061-0098 | 1 | ||
GASKET,CLUTCH COVER,OUTER | 11061C | 11061-0144 | 1 | ||
GUIDE-CHAIN,FOR 14T | 12053 | 12053-0033 | 1 | (OPTION) | |
GUIDE-CHAIN,FOR 13T | 12053A | 12053-0035 | 1 | ||
GUIDE | 13070 | 13070-1206 | 1 | ||
SHAFT-COMP | 13234 | 13234-0016 | 1 | ||
LEVER-COMP,GOVERNOR | 13236 | 13236-1266 | 1 | ||
COVER-CHAIN | 14026 | 14026-0010 | 1 | ||
COVER-GENERATOR | 14031 | 14031-0022 | 1 | ||
COVER-CLUTCH,OUTER | 14032 | 14032-0051 | 1 | ||
COVER-CLUTCH,INNER | 14032A | 14032-0063 | 1 | ||
COVER-PUMP | 16142 | 16142-0013 | 1 | ||
SPRING-GOVERNOR | 39129 | 39129-0002 | 1 | ||
BOOT | 49006 | 49006-0040 | 1 | ||
HOLDER-GOVERNOR WEIGHT | 49111 | 49111-0001 | 1 | ||
SHAFT-GOVERNOR | 49114 | 49114-0001 | 1 | ||
SHAFT-GOVERNOR | 49114A | 49114-1074 | 1 | ||
GAUGE,OIL LEVEL | 52005 | 52005-0019 | 1 | ||
ELBOW | 52014 | 52014-0003 | 1 | ||
GEAR-SPUR,GOVERNOR | 59051 | 59051-1399 | 1 | ||
IMPELLER | 59256 | 59256-0005 | 1 | ||
WASHER,5.2X13X1 | 92022 | 92022-1380 | 1 | ||
WASHER,6.2X11X1 | 92022A | 92022-304 | 1 | ||
SPACER,T=2.0 | 92026 | 92026-1501 | 1 | ||
SPACER,T=1.5 | 92026A | 92026-1590 | 1 | ||
COLLAR,15.2X17X4 | 92027 | 92027-1839 | 1 | ||
PIN,DOWEL,6.3X8X14 | 92042 | 92042-007 | 2 | ||
PIN,3X12.8 | 92043 | 92043-1256 | 1 | ||
PIN,2X9.8 | 92043A | 92043-1293 | 1 | ||
PIN,3X19.8 | 92043B | 92043-1319 | 1 | ||
BEARING-BALL,#628 | 92045 | 92045-1123 | 1 | ||
BEARING-BALL,608MC3 | 92045A | 92045-1305 | 1 | ||
BEARING-NEEDLE | 92046 | 92046-1252 | 2 | ||
SEAL-OIL,MA8.0N2 | 92049 | 92049-0033 | 1 | ||
SEAL-OIL | 92049A | 92049-0034 | 1 | ||
SEAL-OIL,SDO8144 | 92049B | 92049-1207 | 1 | ||
SEAL-OIL,A80984H0 KICK SHAFT | 92049C | 92049-1594 | 1 | ||
BOLT-FLANGED,5X14 | 130 | 130P0514 | 1 | ||
SCREW-PAN-CROS,3X6 | 220 | 220B0306 | 1 | ||
BALL-STEEL,3/8" | 600 | 600A1200 | 4 | ||
ROLLER,4X8 | 610 | 610A0408 | 4 | ||
RING-O,20X2 | 92055 | 92055-1146 | 1 | ||
RING-O,18.8X2.4 | 92055A | 92055-1308 | 1 | ||
RING-O,5.5X1.5 | 92055B | 92055-1343 | 1 | ||
PLUG,OIL | 92066 | 92066-0060 | 1 | ||
COLLAR | 92143 | 92143-1593 | 1 | ||
BOLT,SOCKET,4X8 | 92150 | 92150-1888 | 2 | ||
BOLT,6X12 | 92151 | 92151-1133 | 1 | ||
BOLT,6X65 | 92151A | 92151-1199 | 1 | ||
BOLT,FLANGED-SMALL,6X20 | 92151B | 92151-1252 | 5 | ||
BOLT,6X45 | 92151C | 92151-1336 | 1 | ||
BOLT,FLANGED-SMALL,6X25 | 92151D | 92151-1930 | 20 | ||
BOLT,6X8 | 92153B | 92153-0860 | 1 | ||
CLAMP | 92170 | 92170-1514 | 2 |
