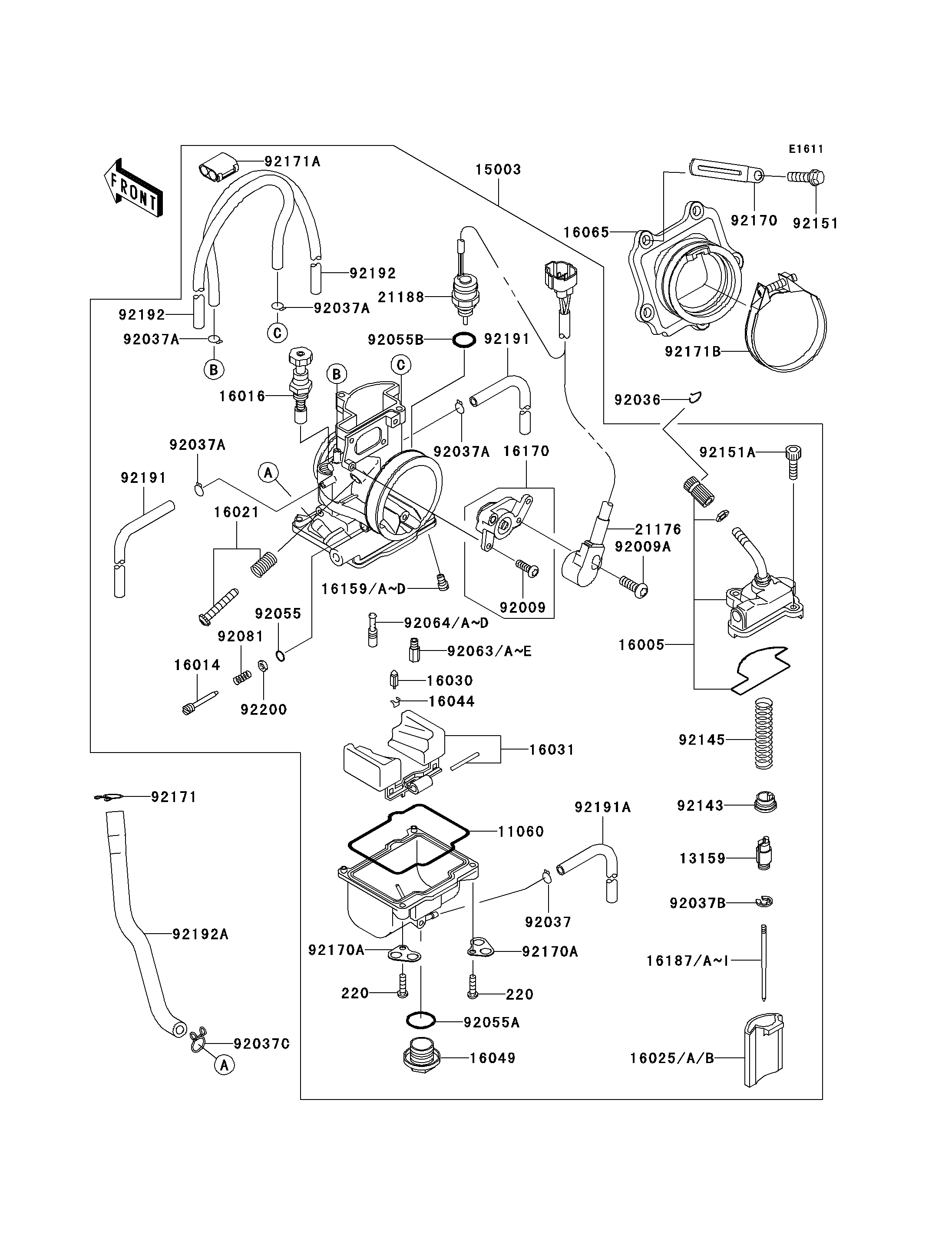

2007 KX250 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
11060
11060
11060
13159
13159
13159
15003
15003
15003
16005
16005
16005
16014
16014
16014
16016
16016
16016
16021
16021
16021
16025
16025
16025
16025A
16025A
16025A
16025B
16025B
16025B
16030
16030
16030
16031
16031
16031
16044
16044
16044
16049
16049
16049
16065
16065
16065
16159
16159
16159
16159A
16159A
16159A
16159B
16159B
16159B
16159C
16159C
16159C
16159D
16159D
16159D
16170
16170
16170
16187
16187
16187
16187A
16187A
16187A
16187B
16187B
16187B
16187C
16187C
16187C
16187D
16187D
16187D
16187E
16187E
16187E
16187F
16187F
16187F
16187G
16187G
16187G
16187H
16187H
16187H
16187I
16187I
16187I
21176
21176
21176
21188
21188
21188
92009
92009
92009
92009A
92009A
92009A
92036
92036
92036
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037B
92037B
92037B
92037C
92037C
92037C
92055
92055
92055
92055A
92055A
92055A
92055B
92055B
92055B
92063
92063
92063
92063A
92063A
92063A
92063B
92063B
92063B
92063C
92063C
92063C
92063D
92063D
92063D
92063E
92063E
92063E
92064
92064
92064
92064A
92064A
92064A
92064B
92064B
92064B
92064C
92064C
92064C
92064D
92064D
92064D
92081
92081
92081
92143
92143
92143
92145
92145
92145
92151
92151
92151
92151A
92151A
92151A
220
220
220
220
220
220
92170
92170
92170
92170A
92170A
92170A
92170A
92170A
92170A
92171
92171
92171
92171A
92171A
92171A
92171B
92171B
92171B
92191
92191
92191
92191
92191
92191
92191A
92191A
92191A
92192
92192
92192
92192
92192
92192
92192A
92192A
92192A
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT CHAMBER 11060 11060-1254 1
CONNECTOR,THROTTLE CABLE 13159 13159-1063 1
CARBURETOR-ASSY 15003 15003-0045 1
TOP-CHAMBER 16005 16005-1083 1
SCREW-PILOT AIR 16014 16014-1058 1
PLUNGER 16016 16016-1085 1
SCREW-THROTTLE STOP 16021 16021-1198 1
VALVE-THROTTLE,#6 16025 16025-1215 AR (OPTION)
VALVE-THROTTLE,#7 16025A 16025-1216 AR (OPTION)
VALVE-THROTTLE,#8 16025B 16025-1217 1
VALVE-FLOAT 16030 16030-1057 1
FLOAT 16031 16031-1100 1
CLAMP,FLOAT VALVE 16044 16044-007 1
COVER-MAIN JET 16049 16049-1051 1
HOLDER-CARBURETOR 16065 16065-0023 1
JET-POWER,#50 16159 16159-1053 AR (OPTION)
JET-POWER,#55 16159A 16159-1054 1
JET-POWER,#52 16159B 16159-1055 AR (OPTION)
JET-POWER,#58 16159C 16159-1056 AR (OPTION)
JET-POWER,#60 16159D 16159-1057 AR (OPTION)
LINK-ASSY 16170 16170-0001 1
NEEDLE-JET,NFTF 16187 16187-0157 AR (OPTION)
NEEDLE-JET,NFTG 16187A 16187-0158 1
NEEDLE-JET,NFTH 16187B 16187-0159 AR (OPTION)
NEEDLE-JET,NFTW 16187C 16187-0160 AR (OPTION)
NEEDLE-JET,NFUF 16187D 16187-0162 AR (OPTION)
NEEDLE-JET,NFUG 16187E 16187-0163 AR (OPTION)
NEEDLE-JET,NFUH 16187F 16187-0164 AR (OPTION)
NEEDLE-JET,NFUW 16187G 16187-0165 AR (OPTION)
NEEDLE-JET,NFTE 16187H 16187-0167 AR (OPTION)
NEEDLE-JET,NFUE 16187I 16187-0168 AR (OPTION)
SENSOR,THROTTLE 21176 21176-1114 1
SOLENOID 21188 21188-0002 1
SCREW 92009 92009-1889 2
SCREW,THROTTLE SENSOR 92009A 92009-1981 1
RING-SNAP 92036 92036-018 1
CLAMP,TUBE 92037 92037-1142 1
CLAMP,TUBE 92037A 92037-1396 4
CLAMP,JET NEEDLE 92037B 92037-1401 1
CLAMP,TUBE 92037C 92037-147 1
RING-O,PILOT ADJUST 92055 92055-1002 1
RING-O,MAIN JET COVER 92055A 92055-1167 1
RING-O 92055B 92055-1580 1
JET-MAIN,#155 92063 92063-1366 AR (OPTION)
JET-MAIN,#158 92063A 92063-1367 AR (OPTION)
JET-MAIN,#160 92063B 92063-1368 1
JET-MAIN,#162 92063C 92063-1369 AR (OPTION)
JET-MAIN,#165 92063D 92063-1370 AR (OPTION)
JET-MAIN,#170 92063E 92063-1372 AR (OPTION)
JET-PILOT,#52 92064 92064-1130 AR (OPTION)
JET-PILOT,#45 92064A 92064-1142 AR (OPTION)
JET-PILOT,#48 92064B 92064-1143 AR (OPTION)
JET-PILOT,#50 92064C 92064-1144 1
JET-PILOT,#55 92064D 92064-1145 AR (OPTION)
SPRING,ADJUST SCREW 92081 92081-1555 1
COLLAR,THROTTLE VALVE 92143 92143-1201 1
SPRING,THROTTLE VALVE 92145 92145-0012 1
BOLT,FLANGED-SMALL,6X20 92151 92151-1252 5
BOLT 92151A 92151-1507 2
SCREW-PAN-CROS,4X14 220 220D0414 4
CLAMP 92170 92170-1514 1
CLAMP 92170A 92170-1582 2
CLAMP 92171 92171-0149 1
CLAMP 92171A 92171-0246 1
CLAMP 92171B 92171-1105 1
TUBE,4X7X480 92191 92191-1254 2
TUBE,3.5X6.5X330 92191A 92191-1256 1
TUBE,4X7X580 92192 92192-0203 2
TUBE,L=190.2 92192A 92192-0235 1
WASHER 92200 92200-1466 1
