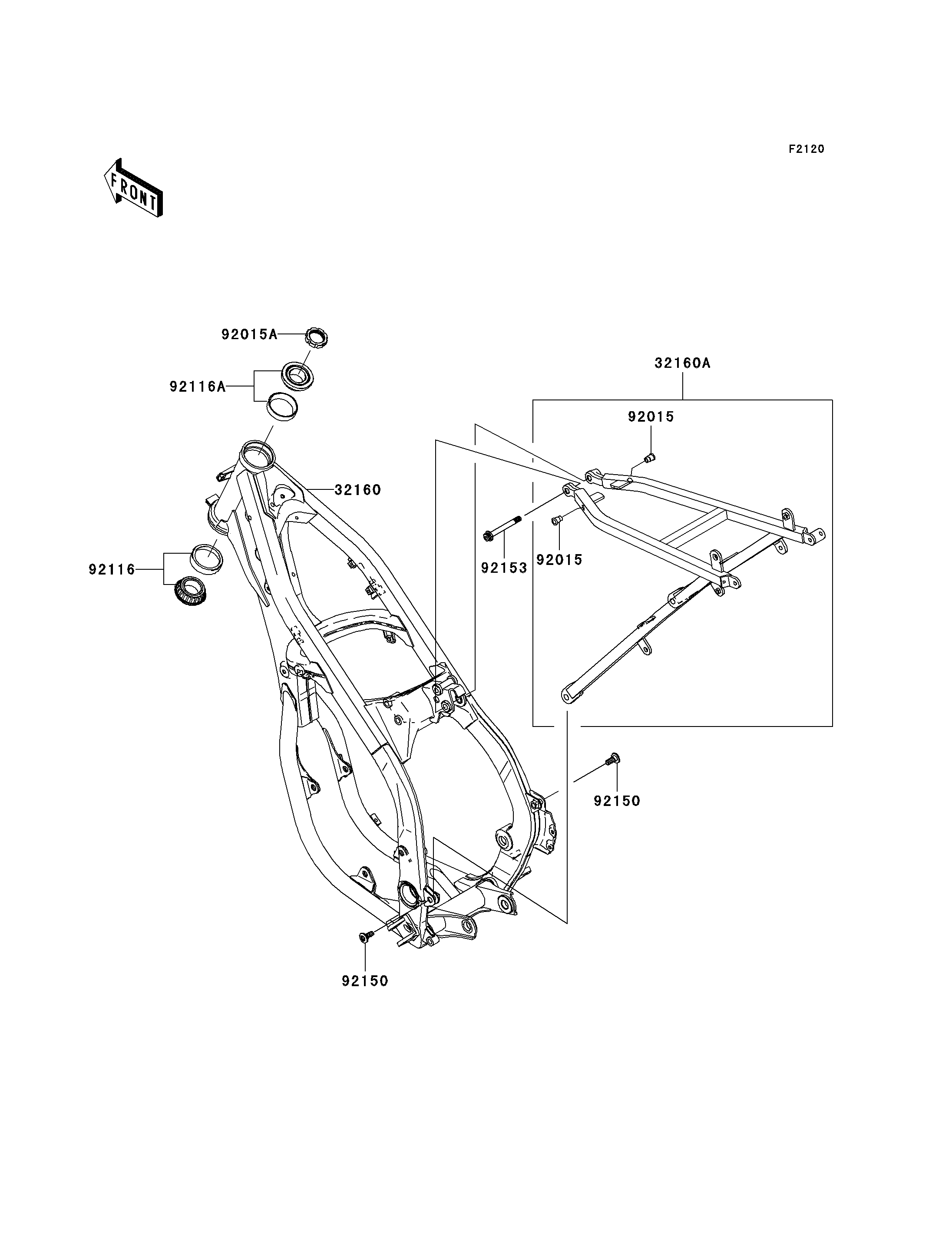

32160
32160A
92015
92015
92015A
92116
92116A
92150
92150
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME-COMP,FR,P.SILVER 32160 32160-0104-458 1
FRAME-COMP,RR 32160A 32160-0164 1
NUT,POP,6MM,L=15 92015 92015-1791 2
NUT,STEERING STEM,28MM 92015A 92015-1861 1
BEARING-ROLLER,HI-CAP32006JRRS 92116 92116-1069 1
BEARING-ROLLER,HI-CAP320/28JRR 92116A 92116-1076 1
BOLT,SOCKET,8X20 92150 92150-1760 2
BOLT,SOCKET,8X74 92153 92153-1326 1
