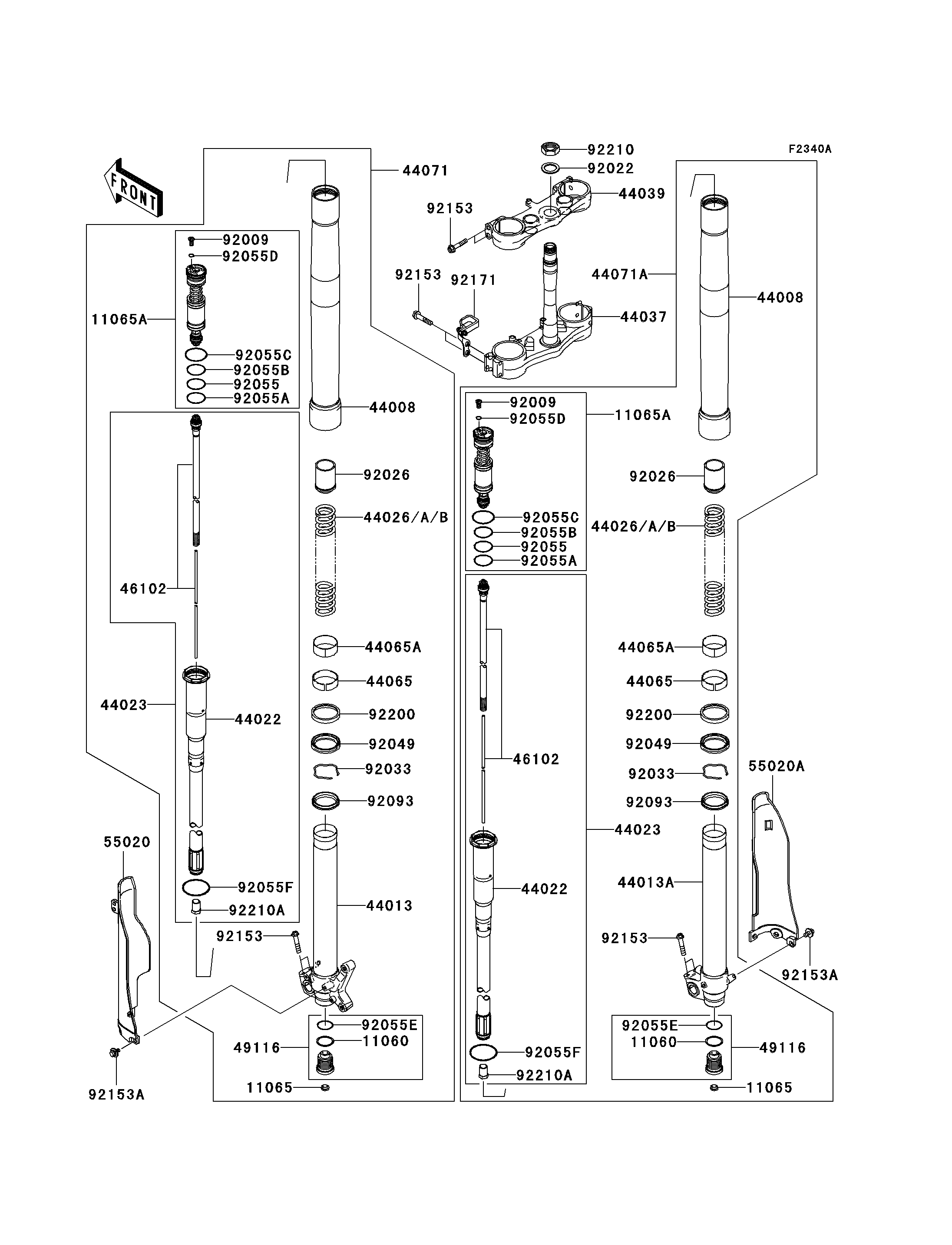

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET | 11060 | 11060-1707 | 2 | ||
CAP | 11065 | 11065-0097 | 2 | ||
CAP,BASE VALVE | 11065A | 11065-0139 | 2 | ||
PIPE-FORK OUTER,GOLD | 44008 | 44008-0022-828 | 2 | ||
PIPE-FORK INNER,LH | 44013 | 44013-0047 | 1 | ||
PIPE-FORK INNER,RH | 44013A | 44013-0048 | 1 | ||
CYLINDER-FORK | 44022 | 44022-0013 | 2 | ||
CYLINDER-SET-FORK | 44023 | 44023-0034 | 2 | ||
SPRING-FRONT FORK,K=4.4N/MM | 44026 | 44026-0052 | 2 | ||
SPRING-FRONT FORK,K=4.3N/MM | 44026A | 44026-0054 | 2 | (OPTION) | |
SPRING-FRONT FORK,K=4.5N/MM | 44026B | 44026-0056 | 2 | (OPTION) | |
HOLDER-FORK UNDER,M.M.GOLD | 44037 | 44037-0031-10Y | 1 | ||
HOLDER-FORK UPPER,M.M.GOLD | 44039 | 44039-0017-10Y | 1 | ||
BUSHING-FRONT FORK | 44065 | 44065-0006 | 2 | ||
BUSHING-FRONT FORK | 44065A | 44065-1140 | 2 | ||
DAMPER-ASSY,FORK,LH,GOLD | 44071 | 44071-0363-828 | 1 | ||
DAMPER-ASSY,FORK,RH,GOLD | 44071A | 44071-0364-828 | 1 | ||
ROD,PISTON | 46102 | 46102-0072 | 2 | ||
VALVE-ASSY | 49116 | 49116-0011 | 2 | ||
GUARD,FORK,LH,WHITE | 55020 | 55020-0172-RZ | 1 | ||
GUARD,FORK,RH,WHITE | 55020A | 55020-0173-RZ | 1 | ||
SCREW | 92009 | 92009-1884 | 2 | ||
WASHER,25X36X2.3 | 92022 | 92022-250 | 1 | ||
SPACER | 92026 | 92026-0072 | 2 | ||
RING-SNAP | 92033 | 92033-1329 | 2 | ||
SEAL-OIL | 92049 | 92049-0070 | 2 | ||
RING-O,30.7X37.7X3.5 | 92055 | 92055-0071 | 2 | ||
RING-O,29.7X36.7X3.5 | 92055A | 92055-0072 | 2 | ||
RING-O,30.7X37.7X3.5 | 92055B | 92055-0075 | 2 | ||
RING-O,37.2X42X2.4 | 92055C | 92055-0076 | 2 | ||
RING-O,2.8X6.6X1.9 | 92055D | 92055-1441 | 2 | ||
RING-O,FORK VALVE | 92055E | 92055-1547 | 2 | ||
RING-O | 92055F | 92055-1677 | 2 | ||
SEAL,FORK OUTER TUBE | 92093 | 92093-1566 | 2 | ||
BOLT,FLANGED,8X40 | 92153 | 92153-0484 | 12 | ||
BOLT,FLANGED,6X14 | 92153A | 92153-0936 | 6 | ||
CLAMP,HOSE | 92171 | 92171-0414 | 1 | ||
WASHER | 92200 | 92200-0067 | 2 | ||
NUT,24MM | 92210 | 92210-0066 | 1 | ||
NUT | 92210A | 92210-0196 | 2 |
