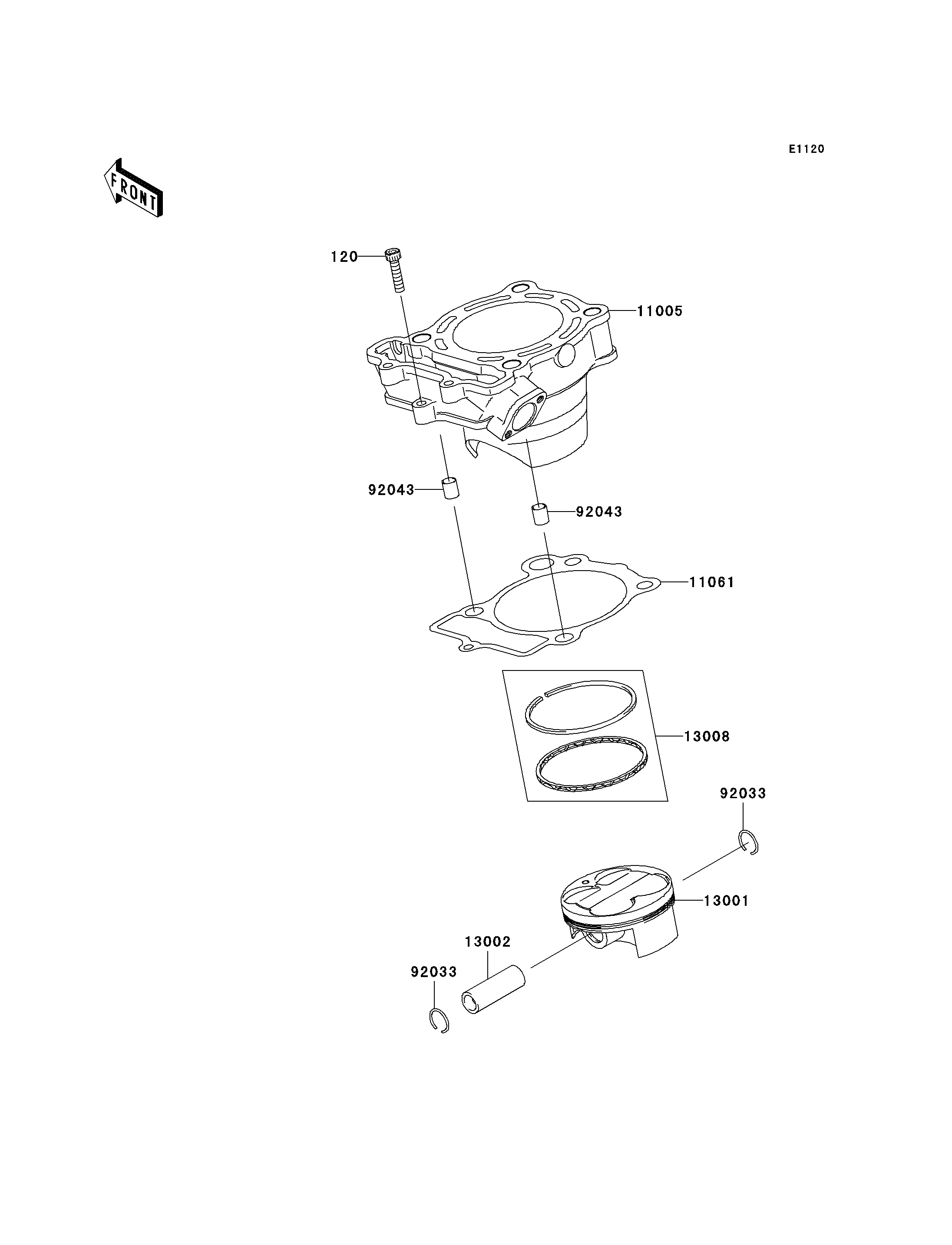

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X25 120 120P0625 1
CYLINDER-ENGINE 11005 11005-0069 1
GASKET,CYLINDER BASE 11061 11061-0025 1
PISTON-ENGINE 13001 13001-0062 1
PIN-PISTON 13002 13002-0002 1
RING-SET-PISTON 13008 13008-0017 1
RING-SNAP,PISTON PIN 92033 92033-1161 2
PIN,10.1X12X14 92043 92043-4009 2
