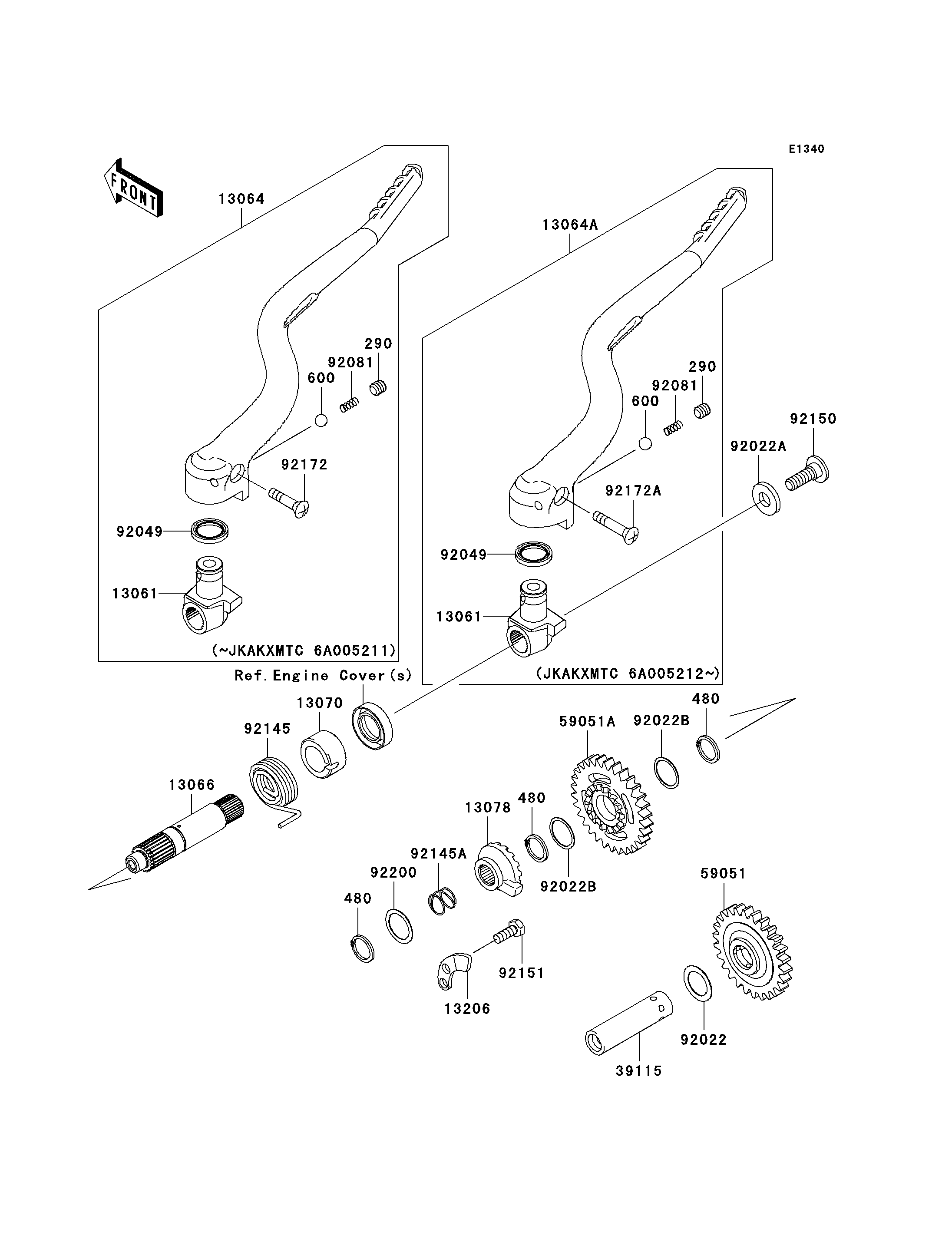

2006 KX250F - Kickstarter Mechanism

DOWNLOAD PDF
SELECT A NEW PART
290
290
480
480
480
600
600
13061
13061
13064
13064A
13066
13070
13078
13206
39115
59051
59051A
92022
92022A
92022B
92022B
92049
92049
92081
92081
92145
92145A
92150
92151
92172
92172A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-SET-SOCKET,8X8 290 290P0808 1
CIRCLIP-TYPE-C,18MM 480 480J1800 3
BALL-STEEL,1/4" 600 600A0800 1
BOSS 13061 13061-0147 1
LEVER-ASSY-KICK 13064 13064-0037 1 ( - JKAKXMTC 6A005211)
LEVER-ASSY-KICK 13064A 13064-0040 1 (JKAKXMTC 6A005212 - )
SHAFT-KICK 13066 13066-0004 1
GUIDE 13070 13070-0011 1
RATCHET 13078 13078-0005 1
GUIDE-KICK 13206 13206-1062 1
SHAFT-IDLER,KICK 39115 39115-0012 1
GEAR-SPUR,KICK STARTER,26T 59051 59051-0006 1
GEAR-SPUR,KICK STARTER,28T 59051A 59051-0033 1
WASHER,17.3X25X0.5 92022 92022-1614 1
WASHER 92022A 92022-1944 1
WASHER,18.3X22X0.5 92022B 92022-271 2
SEAL-OIL,KICK PEDAL 92049 92049-1387 1
SPRING,KICK PEDAL 92081 92081-020 1
SPRING,KICK STARTER 92145 92145-0051 1
SPRING 92145A 92145-0162 1
BOLT,8X25 92150 92150-1858 1
BOLT,6X16 92151 92151-1652 1
SCREW,6X27 92172 92172-0203 1 ( - JKAKXMTC 6A005211)
SCREW,6X33 92172A 92172-0248 1 (JKAKXMTC 6A005212 - )
WASHER,18.3X24X0.5 92200 92200-0075 1
