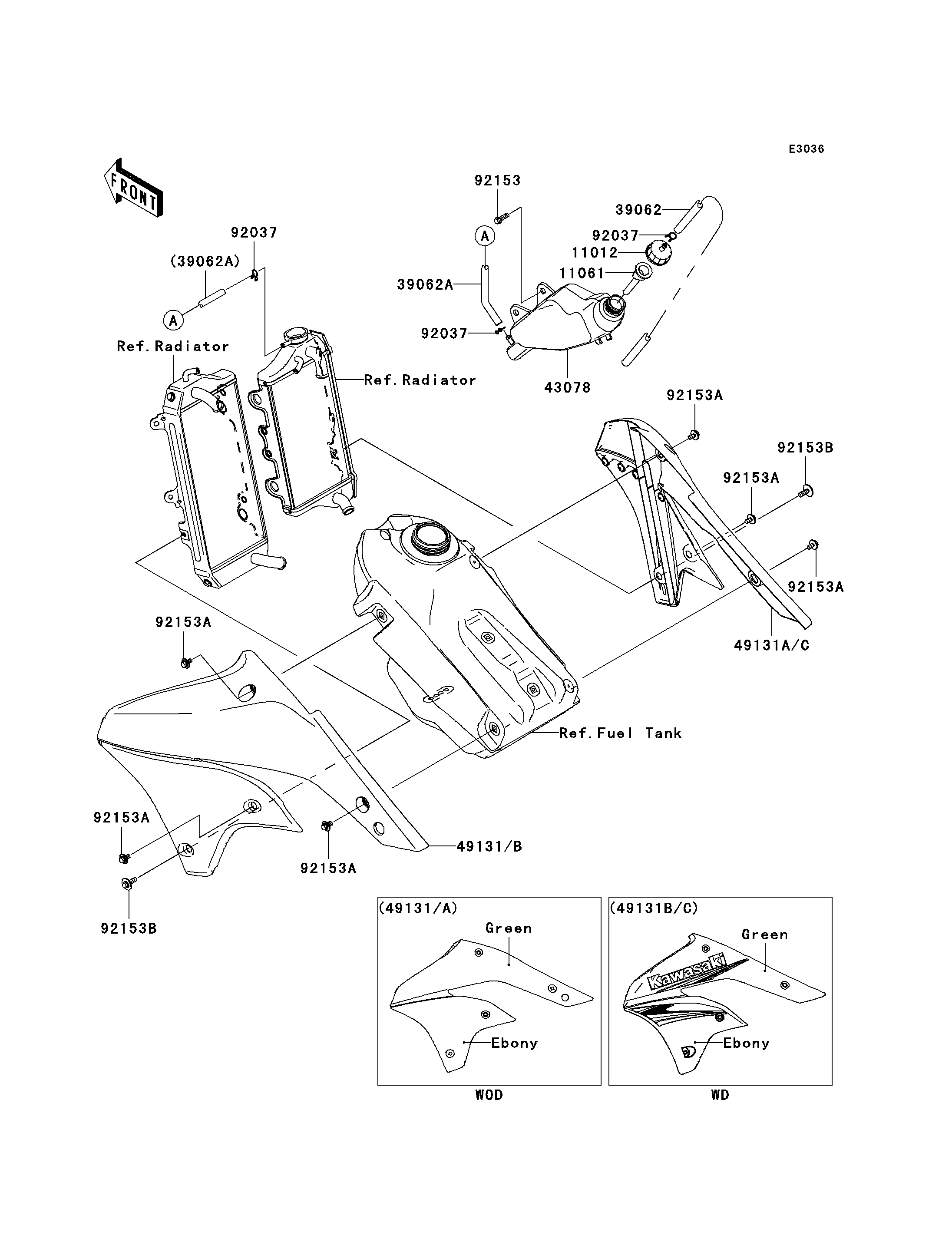

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1854 1
GASKET 11061 11061-0043 1
HOSE-COOLING,OVERFLOW 39062 39062-0187 1
HOSE-COOLING,RESERVOIR-RAD 39062A 39062-0235 1
RESERVOIR 43078 43078-0039 1
SHROUD-ENGINE,LH 49131 49131-5117 1
SHROUD-ENGINE,RH 49131A 49131-5118 1
CLAMP,TUBE 92037 92037-147 3
BOLT,6X20 92153 92153-0502 2
BOLT,6X12 92153A 92153-0503 6
BOLT,6X20 92153B 92153-0864 2
