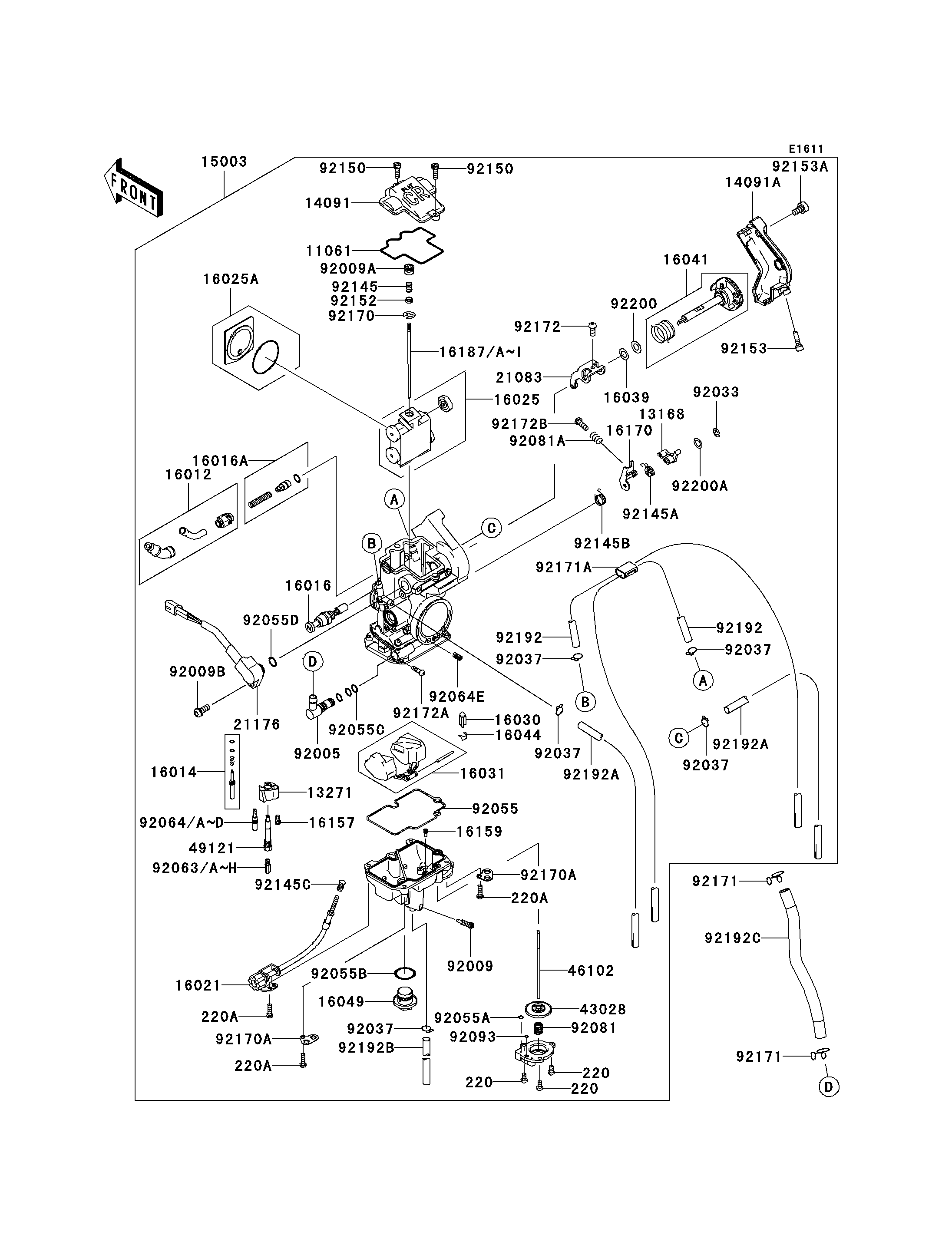

2006 KX250F - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
11061
11061
11061
13168
13168
13168
13271
13271
13271
14091
14091
14091
14091A
14091A
14091A
15003
15003
15003
16012
16012
16012
16014
16014
16014
16016
16016
16016
16016A
16016A
16016A
16021
16021
16021
16025
16025
16025
16025A
16025A
16025A
16030
16030
16030
16031
16031
16031
16039
16039
16039
16041
16041
16041
16044
16044
16044
16049
16049
16049
16157
16157
16157
16159
16159
16159
16170
16170
16170
16187
16187
16187
16187A
16187A
16187A
16187B
16187B
16187B
16187C
16187C
16187C
16187D
16187D
16187D
16187E
16187E
16187E
16187F
16187F
16187F
16187G
16187G
16187G
16187H
16187H
16187H
16187I
16187I
16187I
21083
21083
21083
21176
21176
21176
43028
43028
43028
46102
46102
46102
49121
49121
49121
92005
92005
92005
92009
92009
92009
92009A
92009A
92009A
92009B
92009B
92009B
92033
92033
92033
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92055
92055
92055
92055A
92055A
92055A
92055B
92055B
92055B
92055C
92055C
92055C
92055D
92055D
92055D
92063
92063
92063
92063A
92063A
92063A
92063B
92063B
92063B
92063C
92063C
92063C
92063D
92063D
92063D
92063E
92063E
92063E
92063F
92063F
92063F
92063G
92063G
92063G
92063H
92063H
92063H
92064
92064
92064
92064A
92064A
92064A
92064B
92064B
92064B
92064C
92064C
92064C
220
220
220
220
220
220
220
220
220
220A
220A
220A
220A
220A
220A
220A
220A
220A
92064D
92064D
92064D
92064E
92064E
92064E
92081
92081
92081
92081A
92081A
92081A
92093
92093
92093
92145
92145
92145
92145A
92145A
92145A
92145B
92145B
92145B
92145C
92145C
92145C
92150
92150
92150
92150
92150
92150
92152
92152
92152
92153
92153
92153
92153A
92153A
92153A
92170
92170
92170
92170A
92170A
92170A
92170A
92170A
92170A
92171
92171
92171
92171
92171
92171
92171A
92171A
92171A
92172
92172
92172
92172A
92172A
92172A
92172B
92172B
92172B
92192
92192
92192
92192
92192
92192
92192A
92192A
92192A
92192A
92192A
92192A
92192B
92192B
92192B
92192C
92192C
92192C
92200
92200
92200
92200A
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11061 11061-0077 1
LEVER 13168 13168-0051 1
PLATE 13271 13271-0241 1
COVER,TOP 14091 14091-0208 1
COVER 14091A 14091-0209 1
CARBURETOR-ASSY,FCR-MX37 15003 15003-0080 1
CAP-STARTER PLUNGER 16012 16012-0002 1
SCREW-PILOT AIR 16014 16014-0004 1
PLUNGER 16016 16016-0009 1
PLUNGER 16016A 16016-0017 1
SCREW-THROTTLE STOP 16021 16021-0005 1
VALVE-THROTTLE 16025 16025-0008 1
VALVE-THROTTLE 16025A 16025-0009 1
VALVE-FLOAT 16030 16030-1057 1
FLOAT 16031 16031-1100 1
WASHER 16039 16039-0230 1
SHAFT-CARBURETOR 16041 16041-0002 1
CLAMP,FLOAT VALVE 16044 16044-007 1
COVER-MAIN JET 16049 16049-1051 1
JET-STARTER,#68 16157 16157-0001 1
JET-POWER,#55 16159 16159-1054 1
LINK-ASSY 16170 16170-0003 1
NEEDLE-JET,NCYS 16187 16187-0191 AR (OPTION)
NEEDLE-JET,NCYT 16187A 16187-0192 AR (OPTION)
NEEDLE-JET,NCYU 16187B 16187-0193 1
NEEDLE-JET,NCYV 16187C 16187-0194 AR (OPTION)
NEEDLE-JET,NCYW 16187D 16187-0195 AR (OPTION)
NEEDLE-JET,NCVS 16187E 16187-0215 AR (OPTION)
NEEDLE-JET,NCVT 16187F 16187-0216 AR (OPTION)
NEEDLE-JET,NCVU 16187G 16187-0217 AR (OPTION)
NEEDLE-JET,NCVV 16187H 16187-0218 AR (OPTION)
NEEDLE-JET,NCVW 16187I 16187-0219 AR (OPTION)
ARM 21083 21083-0004 1
SENSOR,THROTTLE 21176 21176-0016 1
DIAPHRAGM 43028 43028-0001 1
ROD 46102 46102-0033 1
NOZZLE-MAIN 49121 49121-0001 1
FITTING 92005 92005-0016 1
SCREW,DRAIN,6X0.75 92009 92009-1551 1
SCREW 92009A 92009-1876 1
SCREW,THROTTLE SENSOR 92009B 92009-1981 1
RING-SNAP 92033 92033-0018 1
CLAMP,TUBE 92037 92037-1396 5
RING-O,FLOAT CHAMBER 92055 92055-0066 1
RING-O 92055A 92055-1004 1
RING-O,MAIN JET COVER 92055B 92055-1167 1
RING-O 92055C 92055-1223 3
RING-O 92055D 92055-1671 1
JET-MAIN,#170 92063 92063-1372 AR (OPTION)
JET-MAIN,#172 92063A 92063-1373 AR (OPTION)
JET-MAIN,#175 92063B 92063-1374 AR (OPTION)
JET-MAIN,#178 92063C 92063-1375 AR (OPTION)
JET-MAIN,#180 92063D 92063-1376 1
JET-MAIN,#182 92063E 92063-1377 AR (OPTION)
JET-MAIN,#185 92063F 92063-1378 AR (OPTION)
JET-MAIN,#188 92063G 92063-1379 AR (OPTION)
JET-MAIN,#190 92063H 92063-1380 AR (OPTION)
JET-PILOT,#35 92064 92064-1138 AR (OPTION)
JET-PILOT,#38 92064A 92064-1139 AR (OPTION)
JET-PILOT,#40 92064B 92064-1140 1
JET-PILOT,#42 92064C 92064-1141 AR (OPTION)
SCREW-PAN-CROS,4X8 220 220D0408 3
SCREW-PAN-CROS,4X14 220A 220D0414 4
JET-PILOT,#45 92064D 92064-1142 AR (OPTION)
JET-PILOT,#100 92064E 92064-1160 1
SPRING,DIAPHRAGM 92081 92081-1092 1
SPRING 92081A 92081-1620 1
SEAL,"U"RING 92093 92093-1046 1
SPRING 92145 92145-0164 1
SPRING 92145A 92145-0166 1
SPRING 92145B 92145-0167 1
SPRING 92145C 92145-0384 1
BOLT,SOCKET,4X12 92150 92150-1426 2
COLLAR 92152 92152-0141 1
BOLT 92153 92153-0638 1
BOLT 92153A 92153-0639 1
CLAMP,JET NEEDLE 92170 92170-1204 1
CLAMP 92170A 92170-1582 2
CLAMP 92171 92171-0149 2
CLAMP 92171A 92171-0246 1
SCREW 92172 92172-0127 1
SCREW 92172A 92172-0128 1
SCREW 92172B 92172-0129 1
TUBE 92192 92192-0083 2
TUBE 92192A 92192-0084 2
TUBE 92192B 92192-0085 1
TUBE,FUEL,L=257 92192C 92192-0311 1
WASHER 92200 92200-0107 1
WASHER,LINK ARM,STAINLESS 92200A 92200-1434 1
