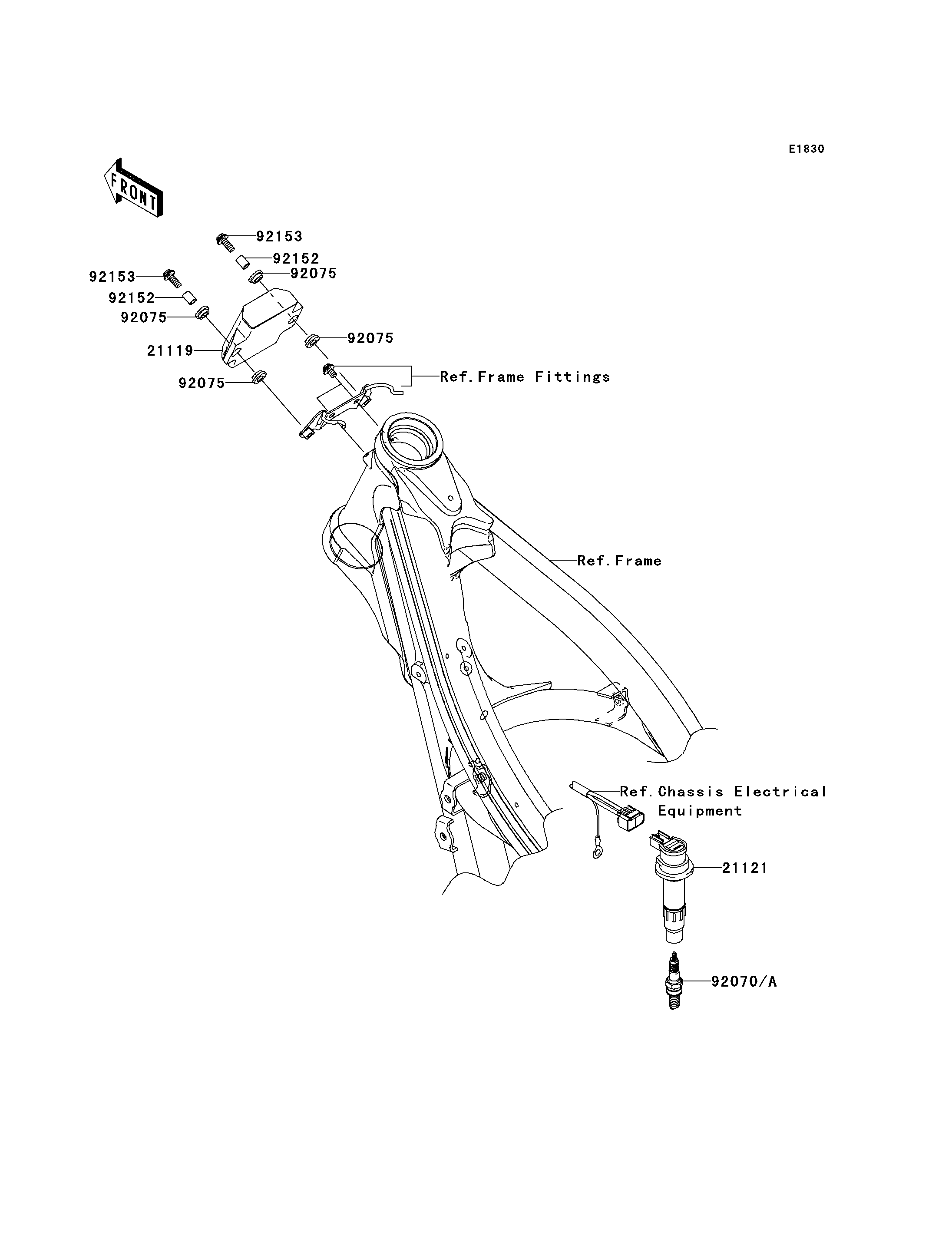

21119
21121
92070
92070A
92075
92075
92075
92075
92152
92152
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
IGNITER 21119 21119-0052 1
COIL-IGNITION 21121 21121-0021 1
PLUG-SPARK,CR8E(NGK) 92070 92070-0019 1
PLUG-SPARK,CR9E(NGK) 92070A 92070-1266 AR (OPTION)
DAMPER,8MM 92075 92075-1138 4
COLLAR,6.5X8.5X11.5 92152 92152-0261 2
BOLT,6X20 92153 92153-0626 2
