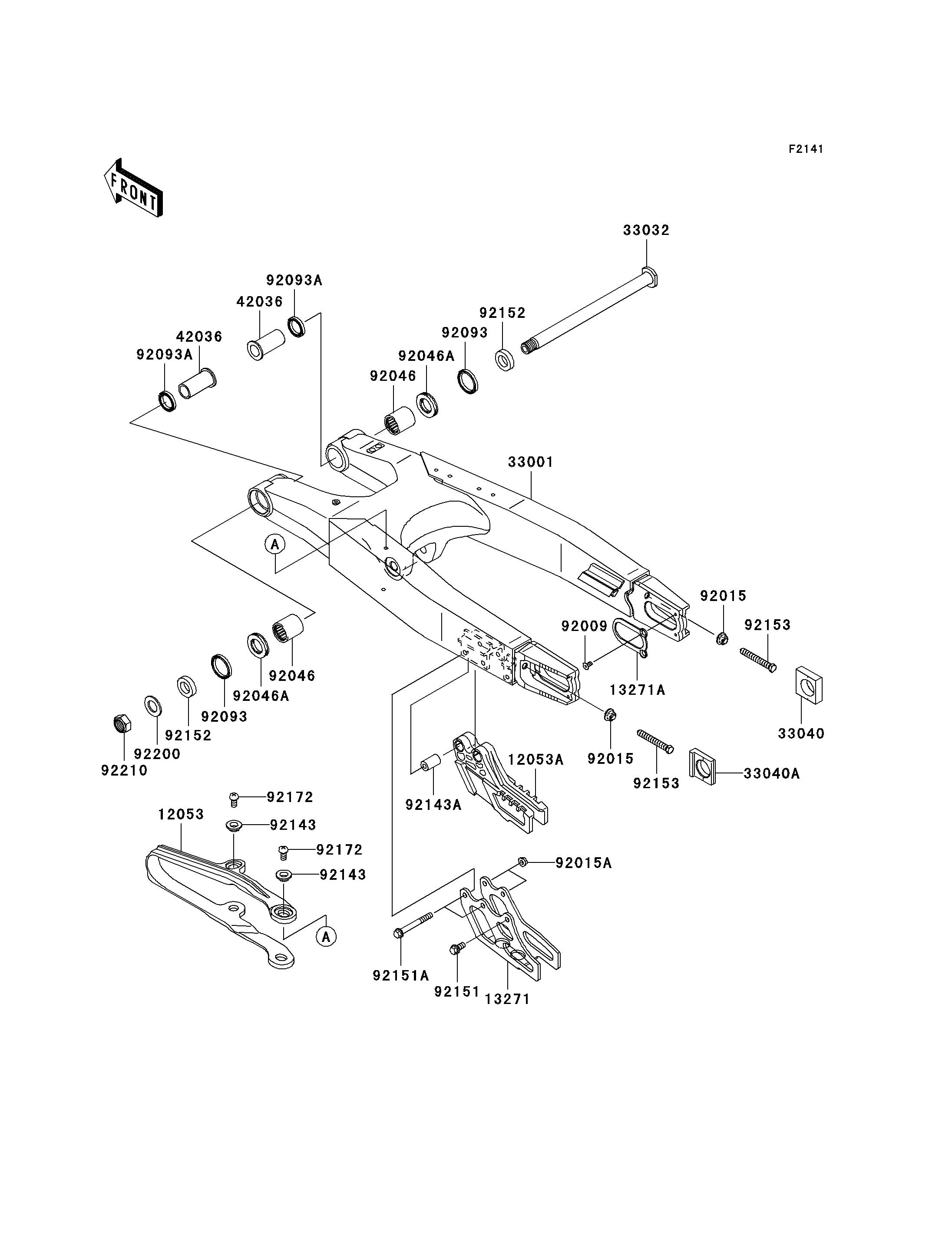

Parts Diagrams |
12053
12053A
13271
13271A
33001
33032
33040
33040A
42036
42036
92009
92015
92015
92015A
92046
92046
92046A
92046A
92093
92093
92093A
92093A
92143
92143
92143A
92151
92151A
92152
92152
92153
92153
92172
92172
92200
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GUIDE-CHAIN,DRIVE,FR | 12053 | 12053-0053 | 1 | ||
GUIDE-CHAIN | 12053A | 12053-0061 | 1 | ||
PLATE,CHAIN GUIDE | 13271 | 13271-0593 | 1 | ||
PLATE,AXLE | 13271A | 13271-1833 | 2 | ||
ARM-COMP-SWING | 33001 | 33001-0069 | 1 | ||
SHAFT-SWING ARM | 33032 | 33032-0012 | 1 | ||
ADJUSTER-CHAIN,RH | 33040 | 33040-0020 | 1 | ||
ADJUSTER-CHAIN,LH | 33040A | 33040-1189 | 1 | ||
SLEEVE,SWING ARM,L=47.5 | 42036 | 42036-0019 | 2 | ||
SCREW,5X10 | 92009 | 92009-1828 | 4 | ||
NUT,FLANGED,8MM | 92015 | 92015-1014 | 2 | ||
NUT,FLANGED,6MM | 92015A | 92015-1078 | 2 | ||
BEARING-NEEDLE,TA2230Z | 92046 | 92046-1174 | 2 | ||
BEARING-NEEDLE,NTBR22356E01 | 92046A | 92046-1240 | 2 | ||
SEAL,SDO29X35X4.5 | 92093 | 92093-1434 | 2 | ||
SEAL,SDO22X29X5 | 92093A | 92093-1435 | 2 | ||
COLLAR | 92143 | 92143-1676 | 4 | ||
COLLAR,6.5X14X24 | 92143A | 92143-1867 | 2 | ||
BOLT,6X12 | 92151 | 92151-1133 | 1 | ||
BOLT,6X50 | 92151A | 92151-1234 | 2 | ||
COLLAR,17.1X29X6 | 92152 | 92152-0292 | 2 | ||
BOLT,8X56 | 92153 | 92153-0620 | 2 | ||
SCREW,5X8 | 92172 | 92172-0119 | 4 | ||
WASHER,17.2X30X2.3 | 92200 | 92200-0285 | 1 | ||
NUT,LOCK,16MM | 92210 | 92210-0285 | 1 |
GUIDE-CHAIN,DRIVE,FR | |
REF # | 12053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN | |
REF # | 12053A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,CHAIN GUIDE | |
REF # | 13271 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,AXLE | |
REF # | 13271A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
ARM-COMP-SWING | |
REF # | 33001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-SWING ARM | |
REF # | 33032 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ADJUSTER-CHAIN,RH | |
REF # | 33040 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ADJUSTER-CHAIN,LH | |
REF # | 33040A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLEEVE,SWING ARM,L=47.5 | |
REF # | 42036 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,5X10 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,FLANGED,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,FLANGED,6MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,TA2230Z | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,NTBR22356E01 | |
REF # | 92046A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL,SDO29X35X4.5 | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL,SDO22X29X5 | |
REF # | 92093A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COLLAR,6.5X14X24 | |
REF # | 92143A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X12 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X50 | |
REF # | 92151A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,17.1X29X6 | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,8X56 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,5X8 | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,17.2X30X2.3 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,LOCK,16MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
