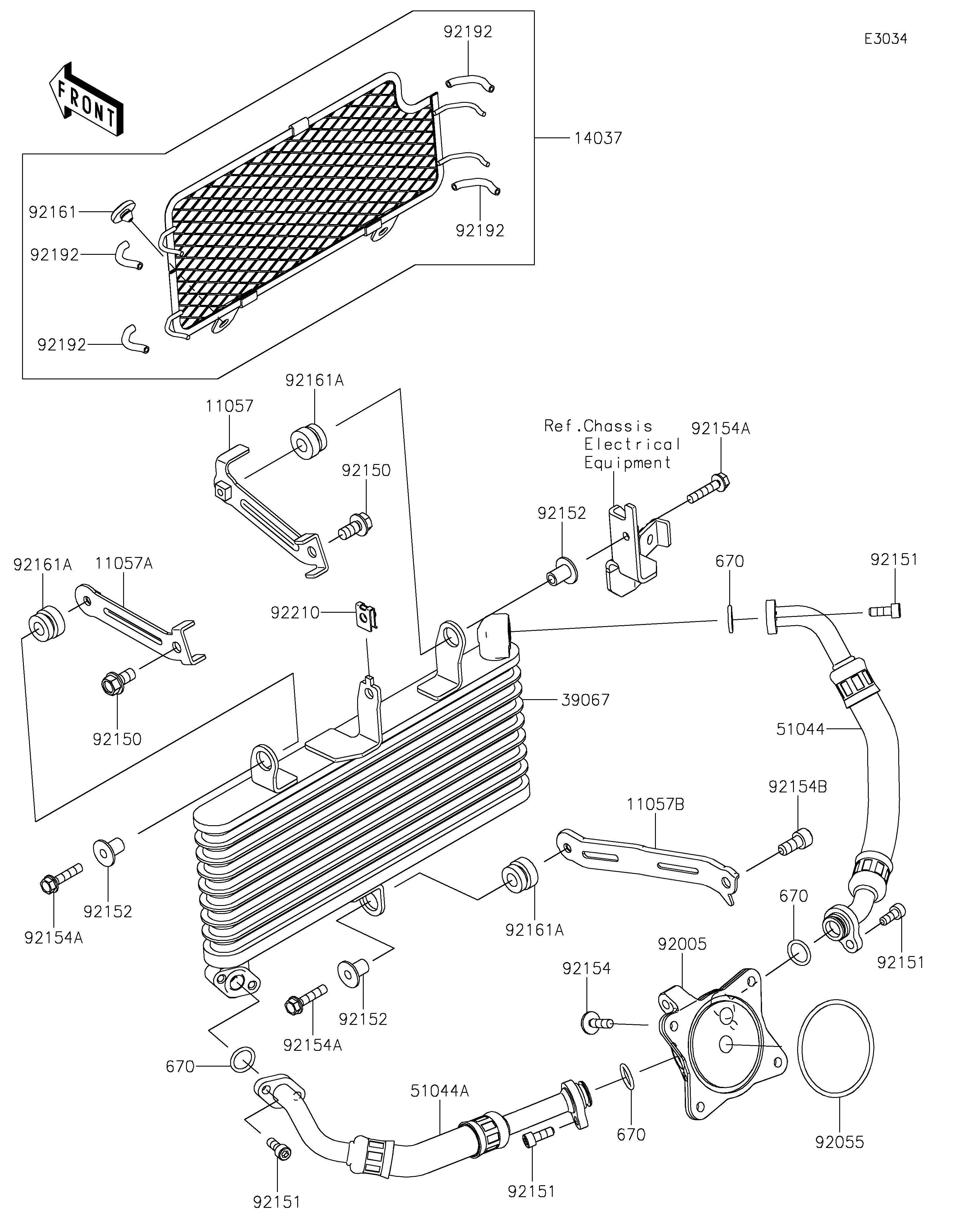

2021 Ninja® ZX™-10R ABS KRT Edition - Oil Cooler

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
11057B
14037
39067
51044
51044A
92005
92055
92150
92150
92151
92151
92151
92151
92152
92152
92152
92154
92154A
92154A
92154A
92154B
92161
92161A
92161A
92161A
92192
92192
92192
92192
92210
670
670
670
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,OIL COOLER,RH 11057 11057-4236 1
BRACKET,OIL COOLER,LH 11057A 11057-4237 1
BRACKET,OIL COOLER,UNDER 11057B 11057-4238 1
SCREEN,OIL COOLER 14037 14037-0819 1
COOLER-OIL 39067 39067-0025 1
TUBE-ASSY,RH 51044 51044-0958 1
TUBE-ASSY,LH 51044A 51044-0959 1
FITTING,OIL COOLER 92005 92005-0981 1
RING-O,63.3MM 92055 92055-0739 1
BOLT,8X16 92150 92150-3846 2
BOLT 92151 92151-1166 6
COLLAR 92152 92152-2721 3
BOLT,FLANGED,6X22 92154 92154-0403 4
BOLT,FLANGED,6X28 92154A 92154-4185 3
BOLT,SOCKET,8X18 92154B 92154-4221 1
DAMPER 92161 92161-2342 2
DAMPER 92161A 92161-2343 3
TUBE 92192 92192-2364 4
NUT 92210 92210-1323 1
O RING,15MM 670 670D2015 4
