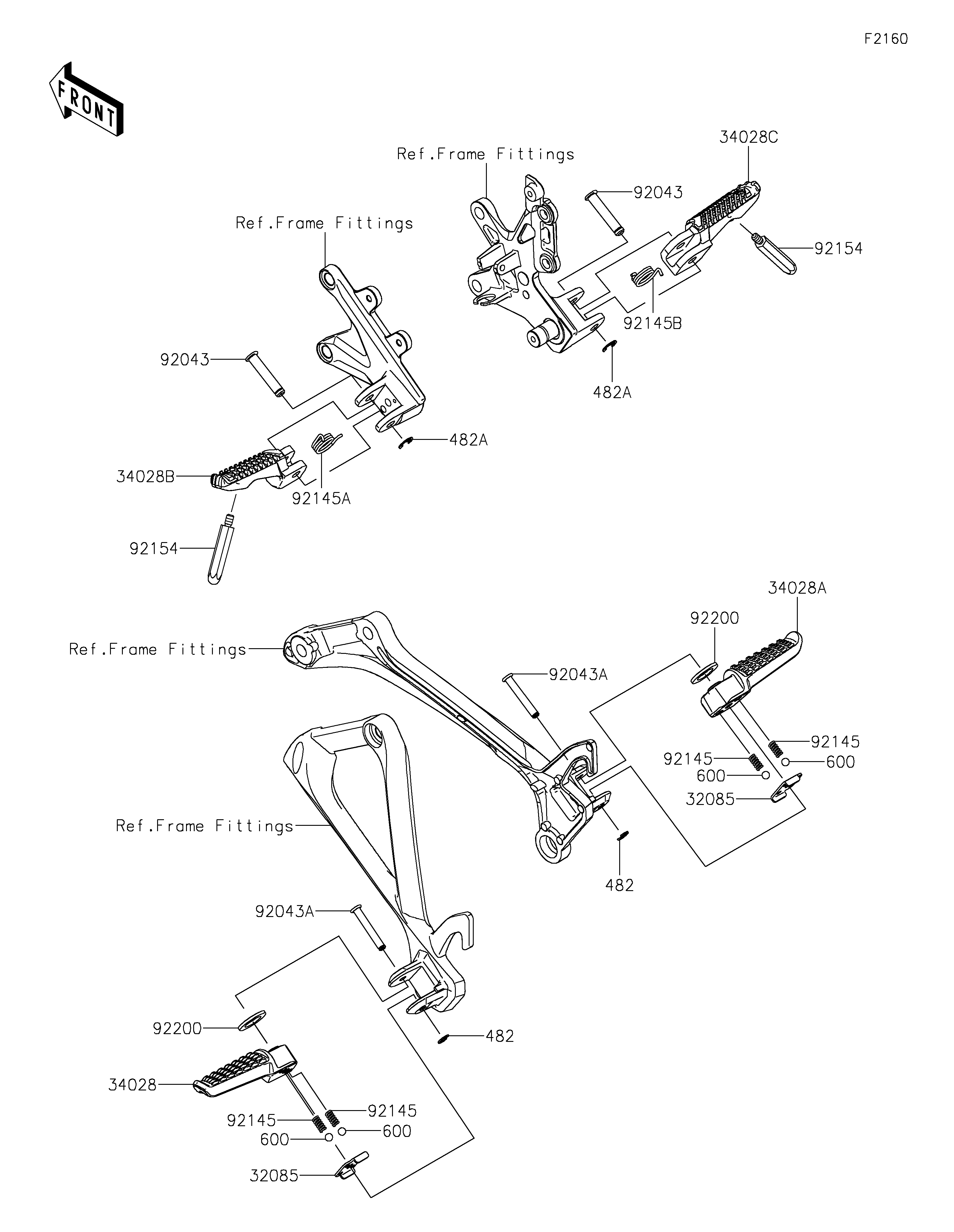

2021 Ninja® ZX™-10R ABS KRT Edition - Footrests
32085
32085
34028
34028A
34028B
34028C
92043
92043
92043A
92043A
92145
92145
92145
92145
92145A
92145B
92154
92154
92200
92200
482
482
482A
482A
600
600
600
600
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| STOPPER,REAR STEP | 32085 | 32085-0047 | 2 | ||
| STEP,RR,LH | 34028 | 34028-0380 | 1 | ||
| STEP,RR,RH | 34028A | 34028-0381 | 1 | ||
| STEP,FR,LH | 34028B | 34028-0384 | 1 | ||
| STEP,FR,RH | 34028C | 34028-0385 | 1 | ||
| PIN,8X40.5 | 92043 | 92043-0877 | 2 | ||
| PIN,6X40 | 92043A | 92043-1595 | 2 | ||
| SPRING | 92145 | 92145-1319 | 4 | ||
| SPRING | 92145A | 92145-1950 | 1 | ||
| SPRING | 92145B | 92145-2218 | 1 | ||
| BOLT,BANK SENSOR | 92154 | 92154-4254 | 2 | ||
| WASHER,16X26X2.3 | 92200 | 92200-0043 | 2 | ||
| CIRCLIP-TYPE-E | 482 | 482EA5000 | 2 | ||
| CIRCLIP-TYPE-E | 482A | 482EA7000 | 2 | ||
| BALL-STEEL,1/4 | 600 | 600A0800 | 4 |
