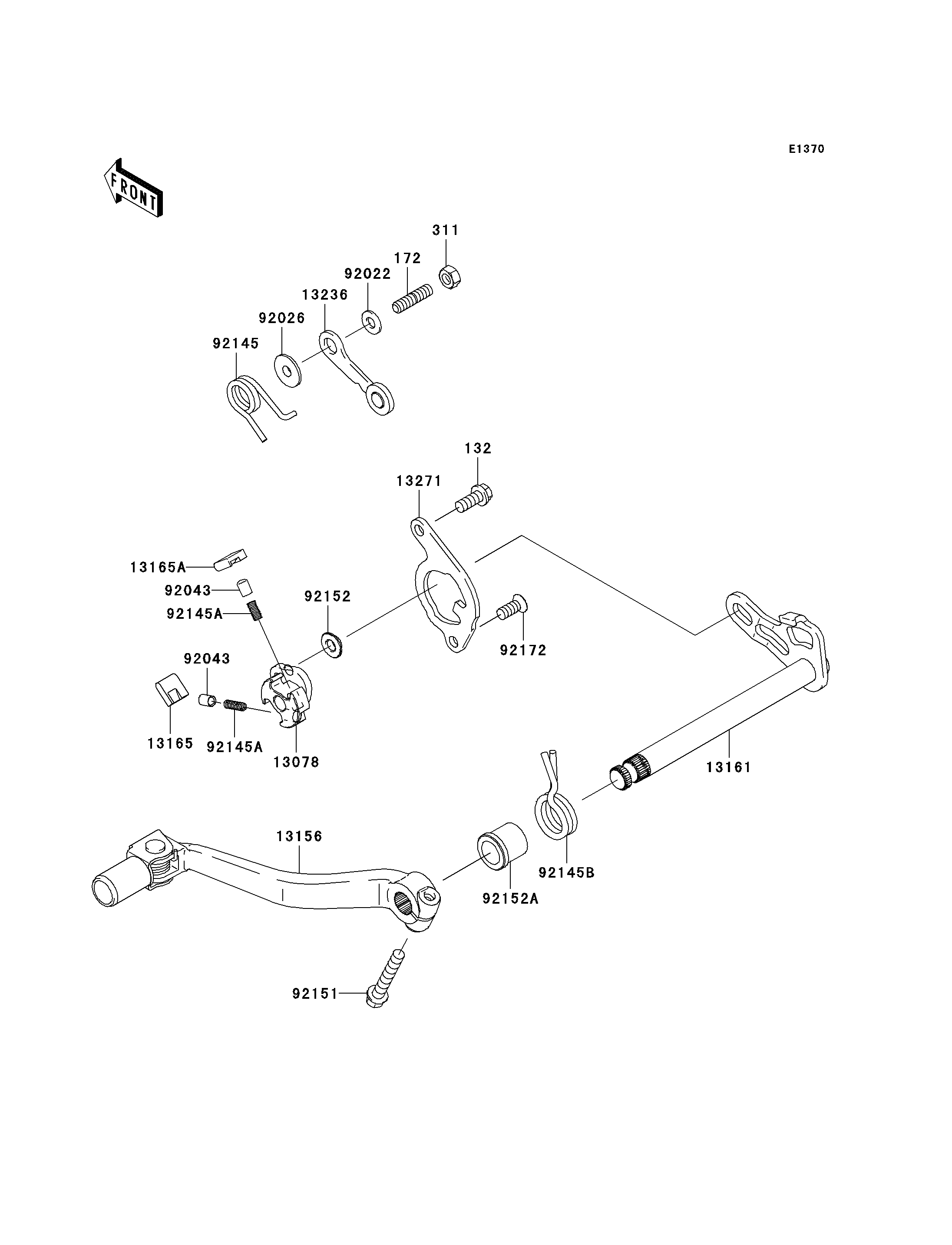

2006 KX450F - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
132
172
311
13078
13156
13161
13165
13165A
13236
13271
92022
92026
92043
92043
92145
92145A
92145A
92145B
92151
92152
92152A
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X14 132 132G0614 1
BOLT-STUD,6X12 172 172G0612 1
NUT-HEX,6MM 311 311G0600 1
RATCHET 13078 13078-0006 1
LEVER-CHANGE,PEDAL 13156 13156-0067 1
LEVER-COMP-CHANGE SHAFT 13161 13161-0031 1
PAWL 13165 13165-0009 1
PAWL 13165A 13165-0010 1
LEVER-COMP,POSITION 13236 13236-0102 1
PLATE,PAWL GUIDE 13271 13271-0248 1
WASHER,6X12.8X1.2 92022 92022-1827 1
SPACER 92026 92026-1217 1
PIN,PLUNGER 92043 92043-1676 2
SPRING 92145 92145-0374 1
SPRING 92145A 92145-1490 2
SPRING,RETURN 92145B 92145-1493 1
BOLT,FLANGED-SMALL,6X25 92151 92151-1930 1
COLLAR 92152 92152-1414 1
COLLAR,RETURN SPRING 92152A 92152-1419 1
SCREW,6X14 92172 92172-0110 1
