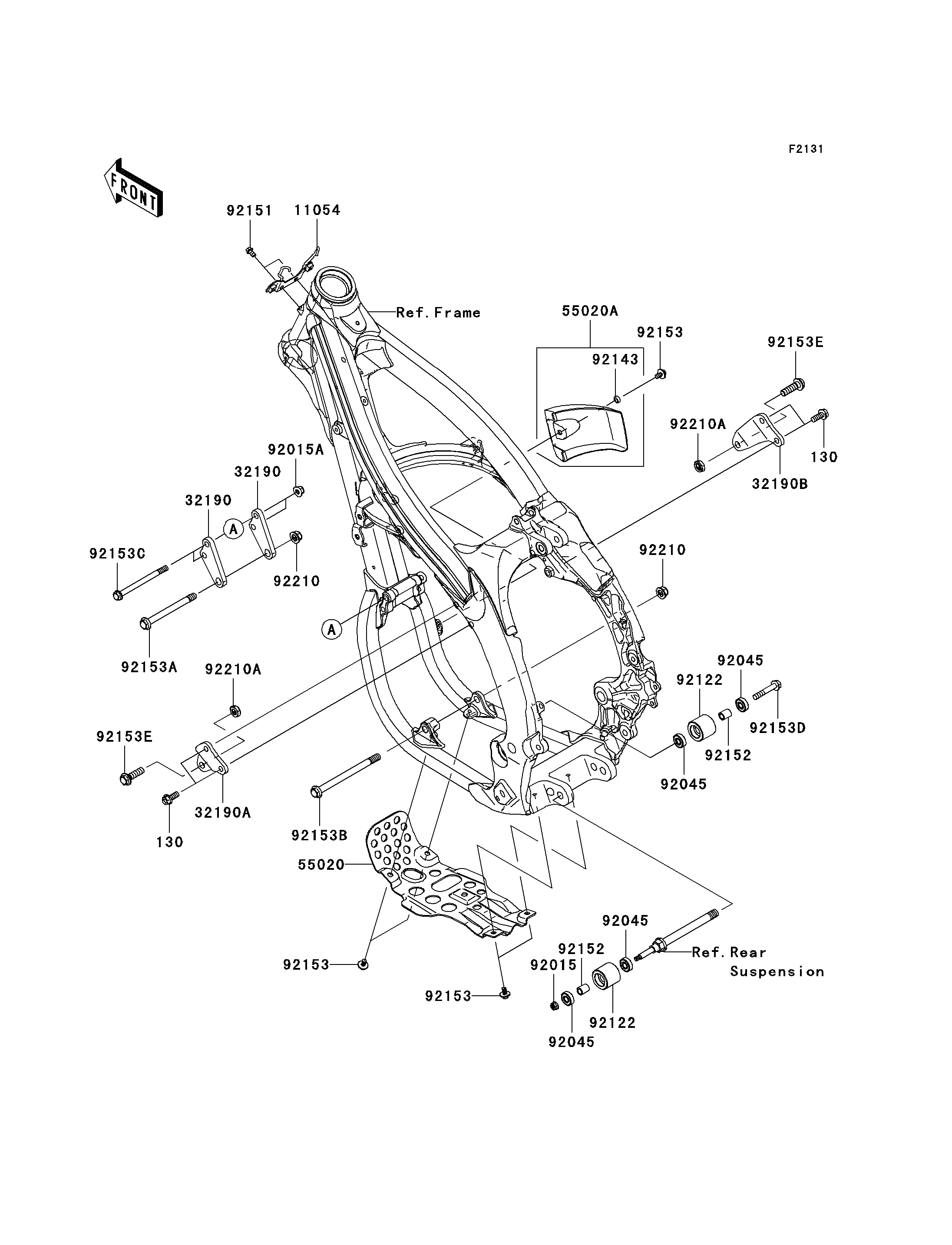

2006 KX450F - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
130
11054
32190
32190
32190A
32190B
55020
55020A
92015
92015A
92045
92045
92045
92045
92122
92122
92143
92151
92152
92152
92153
92153
92153
92153A
92153B
92153C
92153D
92153E
92153E
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X20 130 130P0820 4
BRACKET,IGNITER 11054 11054-0300 1
BRACKET-ENGINE,FR 32190 32190-0232 2
BRACKET-ENGINE,UPP,LH 32190A 32190-0244 1
BRACKET-ENGINE,UPP,RH 32190B 32190-0245 1
GUARD,SKID 55020 55020-0177 1
GUARD,ENGINE,RH,WHITE 55020A 55020-0179-RZ 1
NUT,LOCK,FLANGED,6MM 92015 92015-1339 1
NUT,8MM 92015A 92015-1432 2
BEARING-BALL,608LLU/2A 92045 92045-1009 4
ROLLER,CHAIN GUIDE 92122 92122-0007 2
COLLAR 92143 92143-1307 1
BOLT,FLANGED,6X10 92151 92151-1233 2
COLLAR,8.5X12.5X15.5 92152 92152-0211 2
BOLT,6X12 92153 92153-0503 5
BOLT,FLANGED,10X102 92153A 92153-0659 1
BOLT,FLANGED,10X137 92153B 92153-0704 1
BOLT,FLANGED,8X100 92153C 92153-0705 2
BOLT,FLANGED,8X45 92153D 92153-0751 1
BOLT,FLANGED,10X35 92153E 92153-0802 2
NUT,LOCK,FLANGED,10MM 92210 92210-1080 2
NUT,LOCK,10MM 92210A 92210-1184 2
