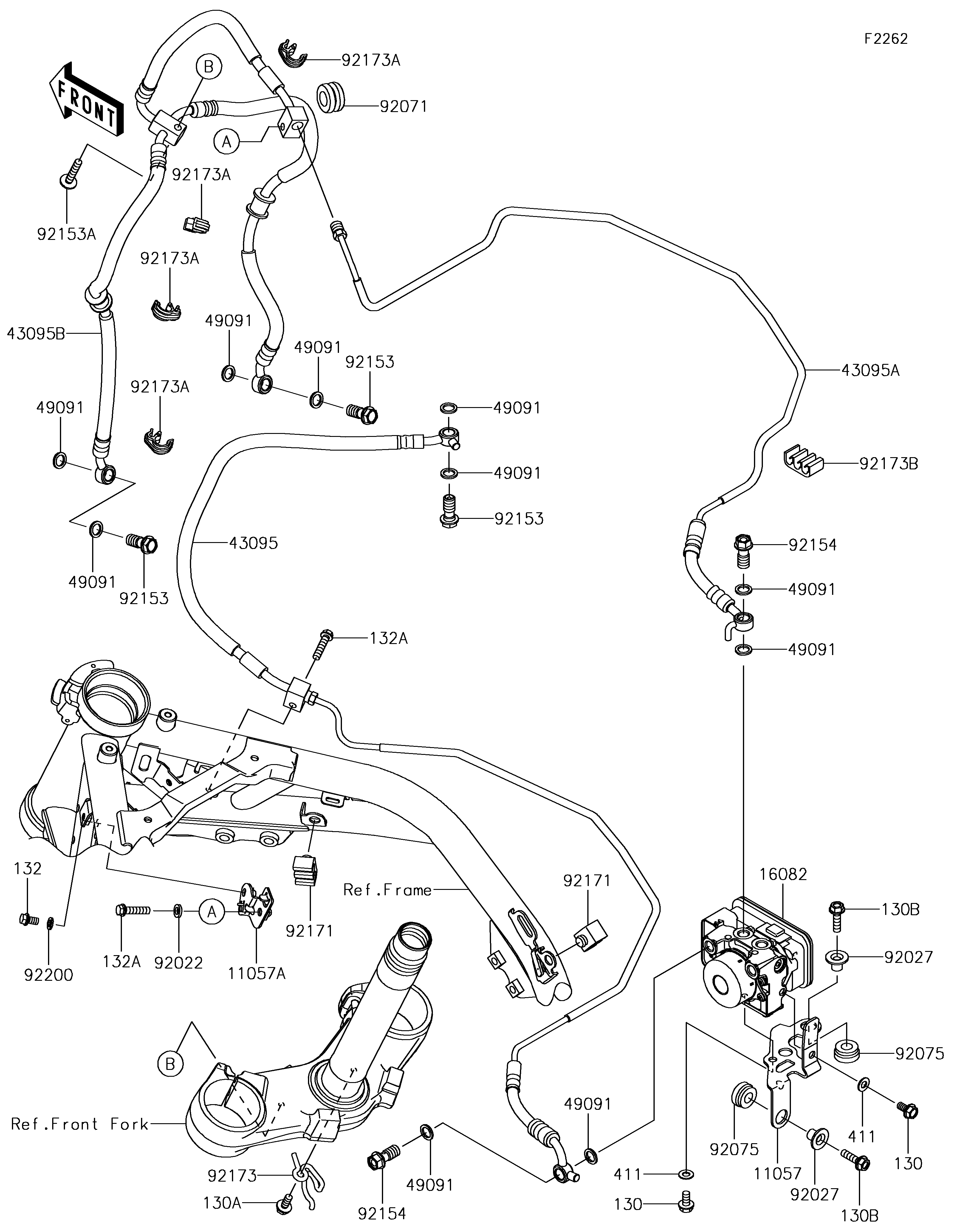

2018 Z900RS - Brake Piping

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
16082
43095
43095A
43095B
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
92022
92027
92027
92071
92075
92075
92153
92153
92153
92153A
92154
92154
92171
92171
92173
92173A
92173A
92173A
92173A
92173B
92200
130
130
130A
130B
130B
132
132A
132A
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,ABS UNIT 11057 11057-1319 1
BRACKET,HEAD PIPE,LH 11057A 11057-1397 1
PUMP-ASSY-OIL,ABS 16082 16082-0787 1
HOSE-BRAKE,FR M/CYL.-ABS UNIT 43095 43095-1475 1
HOSE-BRAKE,ABS UNIT-FITTING 43095A 43095-1479 1
HOSE-BRAKE,FITTING-FR CALIPER 43095B 43095-1583 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 10
WASHER,6.5X11.5X2 92022 92022-1506 1
COLLAR,FLANGED,L=12.1,BLACK 92027 92027-1651 2
GROMMET,12.2X26X16 92071 92071-0785 1
DAMPER 92075 92075-277 2
BOLT,OIL,L=23 92153 92153-0627 3
BOLT,SOCKET,6X30 92153A 92153-1528 1
BOLT,BANJO,10X22 92154 92154-1138 2
CLAMP 92171 92171-0818 2
CLAMP,UNDER BKT,RH 92173 92173-1793 1
CLAMP,HOSE & SENSOR 92173A 92173-1796 4
CLAMP,3 PIPE 92173B 92173-1797 1
WASHER,6.5X11X1.2 92200 92200-1964 1
BOLT-FLANGED,6X12 130 130BA0612 2
BOLT-FLANGED,6X14 130A 130BA0614 1
BOLT-FLANGED,6X22 130B 130BA0622 2
BOLT-FLANGED-SMALL,6X10 132 132BA0610 1
BOLT-FLANGED-SMALL,6X25 132A 132BA0625 2
WASHER-PLAIN,6MM 411 411AA0600 2
