Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |

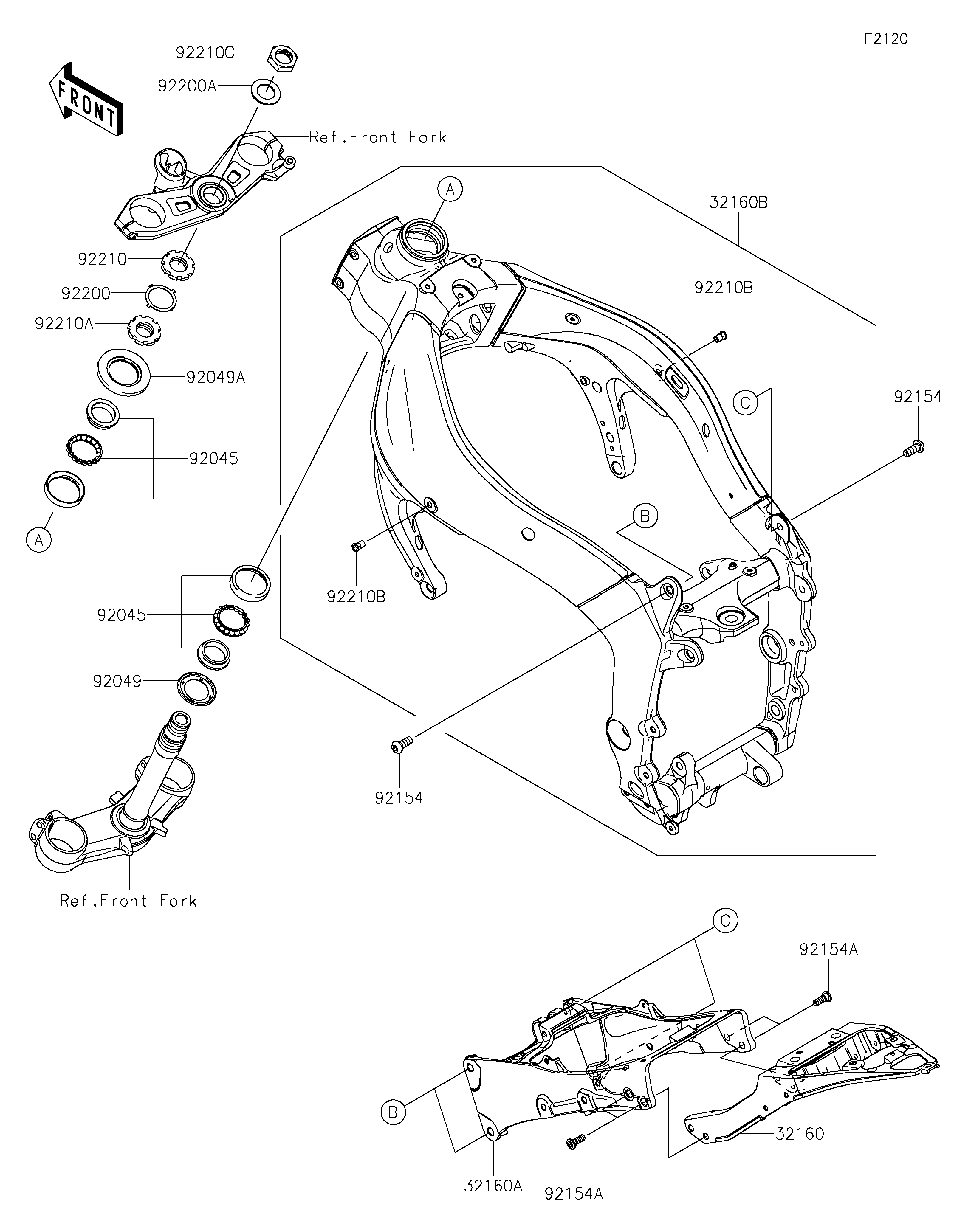

32160
32160A
32160B
92045
92045
92049
92049A
92154
92154
92154A
92154A
92200
92200A
92210
92210A
92210B
92210B
92210C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FRAME-COMP,RR,RR | 32160 | 32160-0398 | 1 | ||
| FRAME-COMP,RR,FR | 32160A | 32160-0399 | 1 | ||
| FRAME-COMP,FR | 32160B | 32160-0423 | 1 | ||
| BEARING-BALL,SF07A17PX1V1 | 92045 | 92045-1384 | 2 | ||
| SEAL-OIL,DS35X55X4 | 92049 | 92049-0022 | 1 | ||
| SEAL-OIL,XMH 43 75 6.4J | 92049A | 92049-1382 | 1 | ||
| BOLT,SOCKET,10X25 | 92154 | 92154-1900 | 4 | ||
| BOLT,SOCKET,8X23 | 92154A | 92154-1901 | 4 | ||
| WASHER | 92200 | 92200-0036 | 1 | ||
| WASHER,28.5X42X1.6 | 92200A | 92200-0209 | 1 | ||
| NUT,35MM | 92210 | 92210-0095 | 1 | ||
| NUT,35MM | 92210A | 92210-0096 | 1 | ||
| NUT,6MM | 92210B | 92210-0099 | 2 | ||
| NUT,28MM | 92210C | 92210-0209 | 1 |
