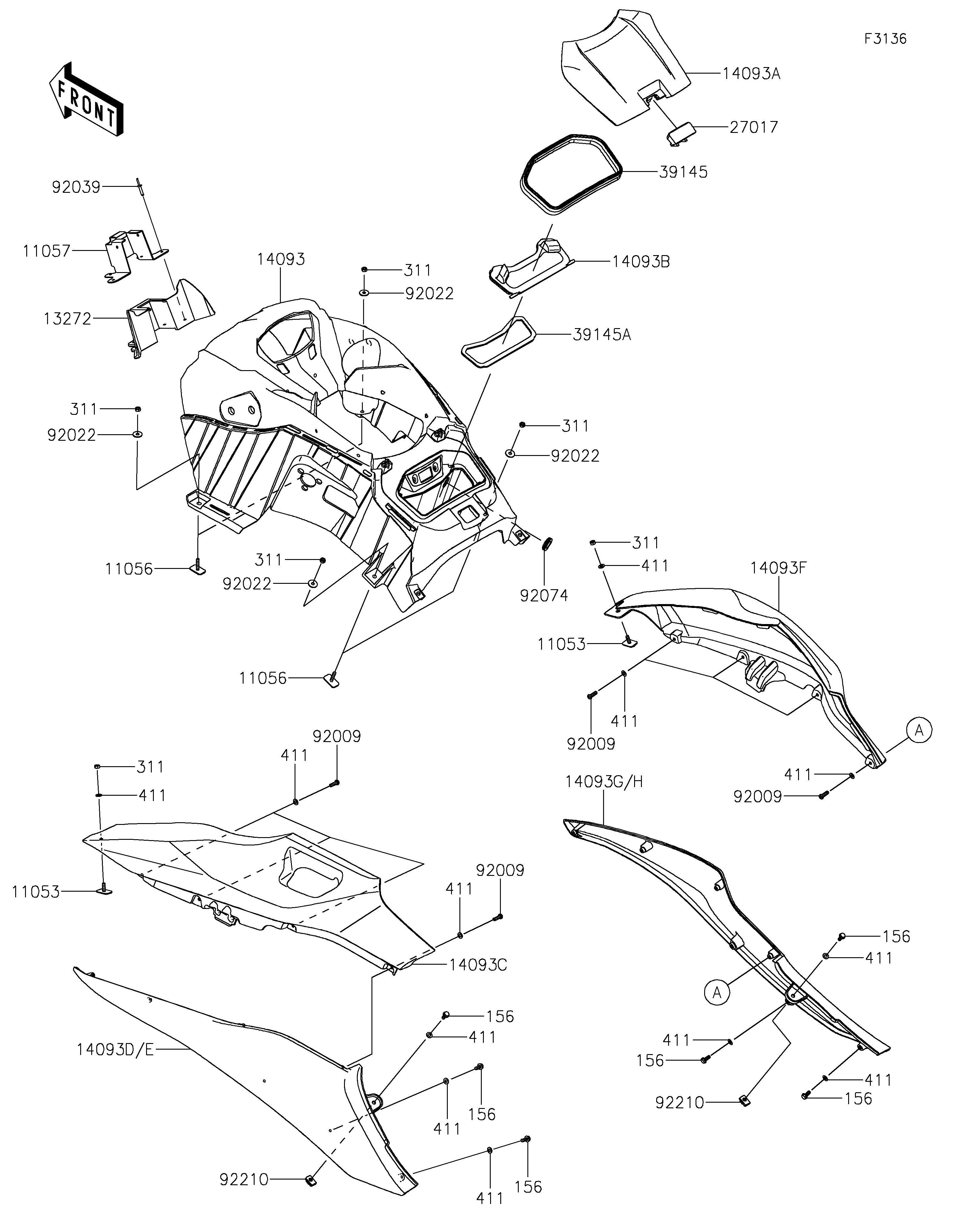

2021 JET SKI® STX®160X - Hull Middle Fittings

DOWNLOAD PDF
SELECT A NEW PART
11053
11053
11056
11056
11057
13272
14093
14093A
14093B
14093C
14093D
14093E
14093F
14093G
14093H
156
156
156
156
156
156
27017
311
311
311
311
311
311
39145
39145A
411
411
411
411
411
411
411
411
411
411
411
411
92009
92009
92009
92009
92022
92022
92022
92022
92039
92074
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11053 11053-3776 2
BRACKET 11056 11056-3724 4
BRACKET 11057 11057-7457 1
PLATE 13272 13272-2736 1
COVER,METER 14093 14093-0881 1
COVER,CNT STRAGE,EBONY 14093A 14093-0884-H8 1
COVER,INNER,CNT 14093B 14093-0885 1
COVER,LH,UPP,EBONY 14093C 14093-0887-H8 1
COVER,LH,LWR,R.TURQUISE 14093D 14093-0889-66A 1
COVER,LH,LWR,L.GREEN 14093E 14093-0889-777 1 CN
COVER,RH,UPP,EBONY 14093F 14093-0891-H8 1
COVER,RH,LWR,R.TURQUISE 14093G 14093-0893-66A 1
COVER,RH,LWR,L.GREEN 14093H 14093-0893-777 1 CN
BOLT-WP,6X16 156 156R0616 6
LOCK,CNT STRAGE 27017 27017-0554 1
NUT-HEX,6MM 311 311R0600 6
TRIM-SEAL,STRAGE,CNT 39145 39145-0716 1
TRIM-SEAL,INNER,CNT 39145A 39145-0717 1
WASHER-PLAIN,6MM 411 411S0600 16
SCREW,TAPPING,6X20 92009 92009-3842 8
WASHER,6.5X20X1.5 92022 92022-3710 4
RIVET 92039 92039-3771 4
PLUG,25X2.5 92074 92074-027 1
NUT,6MM 92210 92210-3768 2
