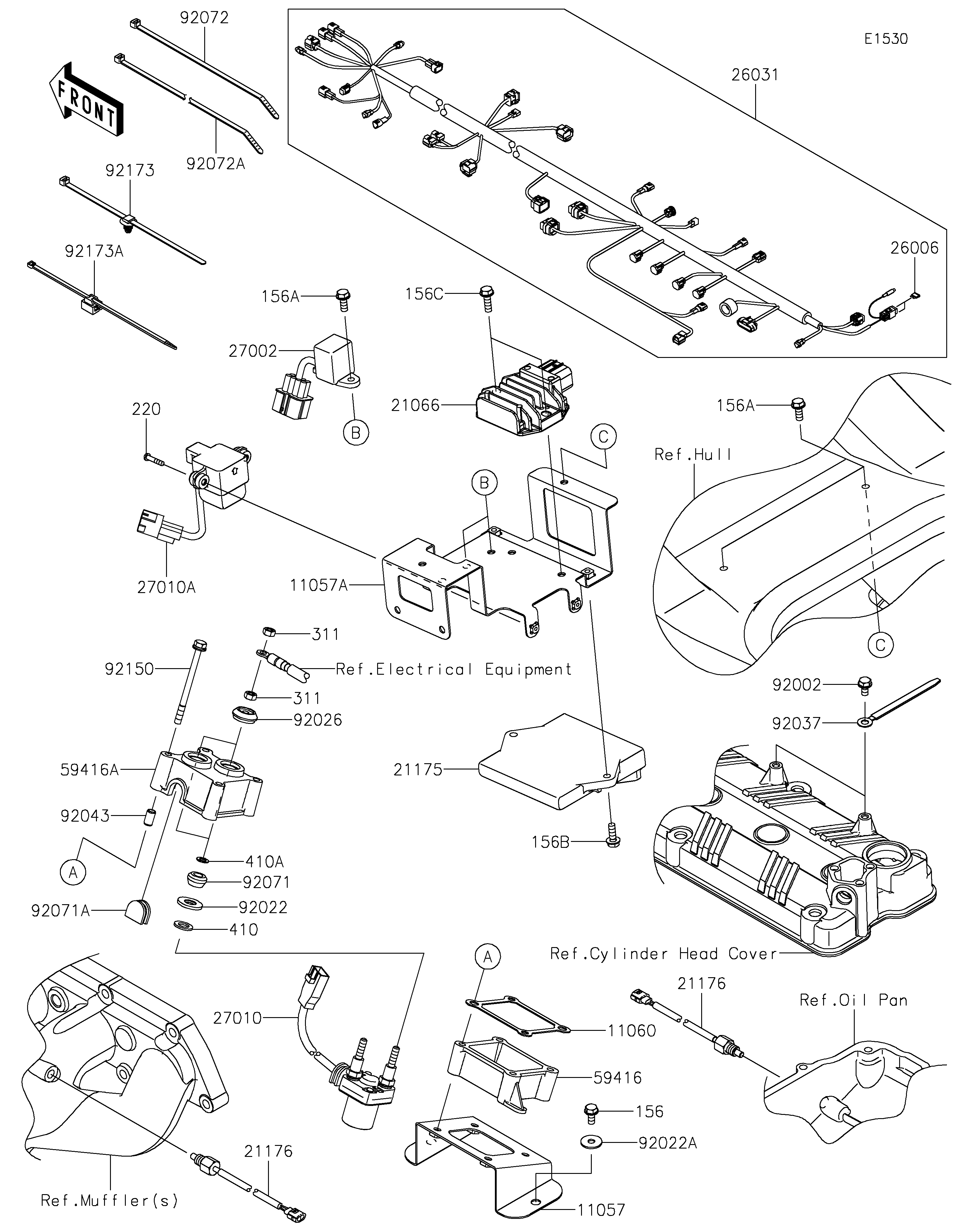

2020 JET SKI® STX®160X - Fuel Injection

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
11060
156
156A
156A
156B
156C
21066
21175
21176
21176
220
26006
26031
27002
27010
27010A
311
311
410
410A
59416
59416A
92002
92022
92022A
92026
92037
92043
92071
92071A
92072
92072A
92150
92173
92173A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,ELECTRIC CASE 11057 11057-0452 1
BRACKET,ECU&RELAY 11057A 11057-2560 1
GASKET 11060 11060-3709 1
BOLT-WP,6X14 156 156R0614 2
BOLT-WP,6X16 156A 156R0616 4
BOLT-WP,6X18 156B 156R0618 2
BOLT-WP,6X20 156C 156R0620 2
REGULATOR-VOLTAGE 21066 21066-0755 1
CONTROL UNIT-ELECTRONIC 21175 21175-1530 1
SENSOR,TEMP 21176 21176-0741 2
SCREW-PAN-CROS,4X20 220 220R0420 2
FUSE,MINI BLADE,20A,YELLOW 26006 26006-3704 2
HARNESS,MAIN 26031 26031-2609 1
RELAY-ASSY 27002 27002-3703 2
SWITCH,MAGNETIC 27010 27010-0860 1
SWITCH,VDS 27010A 27010-3785 1
NUT-HEX,6MM 311 311R0600 4
WASHER-PLAIN-SMALL,10MM 410 410AA1000 2
WASHER-PLAIN-SMALL,6MM 410A 410S0600 2
CASE-ELECTRIC 59416 59416-3765 1
CASE-ELECTRIC 59416A 59416-3766 1
BOLT,6X12 92002 92002-3763 2
WASHER 92022 92022-3035 2
WASHER,6.5X20X1.5 92022A 92022-3710 2
SPACER 92026 92026-3703 2
CLAMP,L=100 92037 92037-3736 2
PIN 92043 92043-3715 2
GROMMET 92071 92071-3004 2
GROMMET 92071A 92071-3837 1
BAND,L=188.85 92072 92072-0105 4
BAND,L=372.24 92072A 92072-3883 1
BOLT,6X80 92150 92150-3711 4
CLAMP 92173 92173-0742 2
CLAMP 92173A 92173-1578 1
