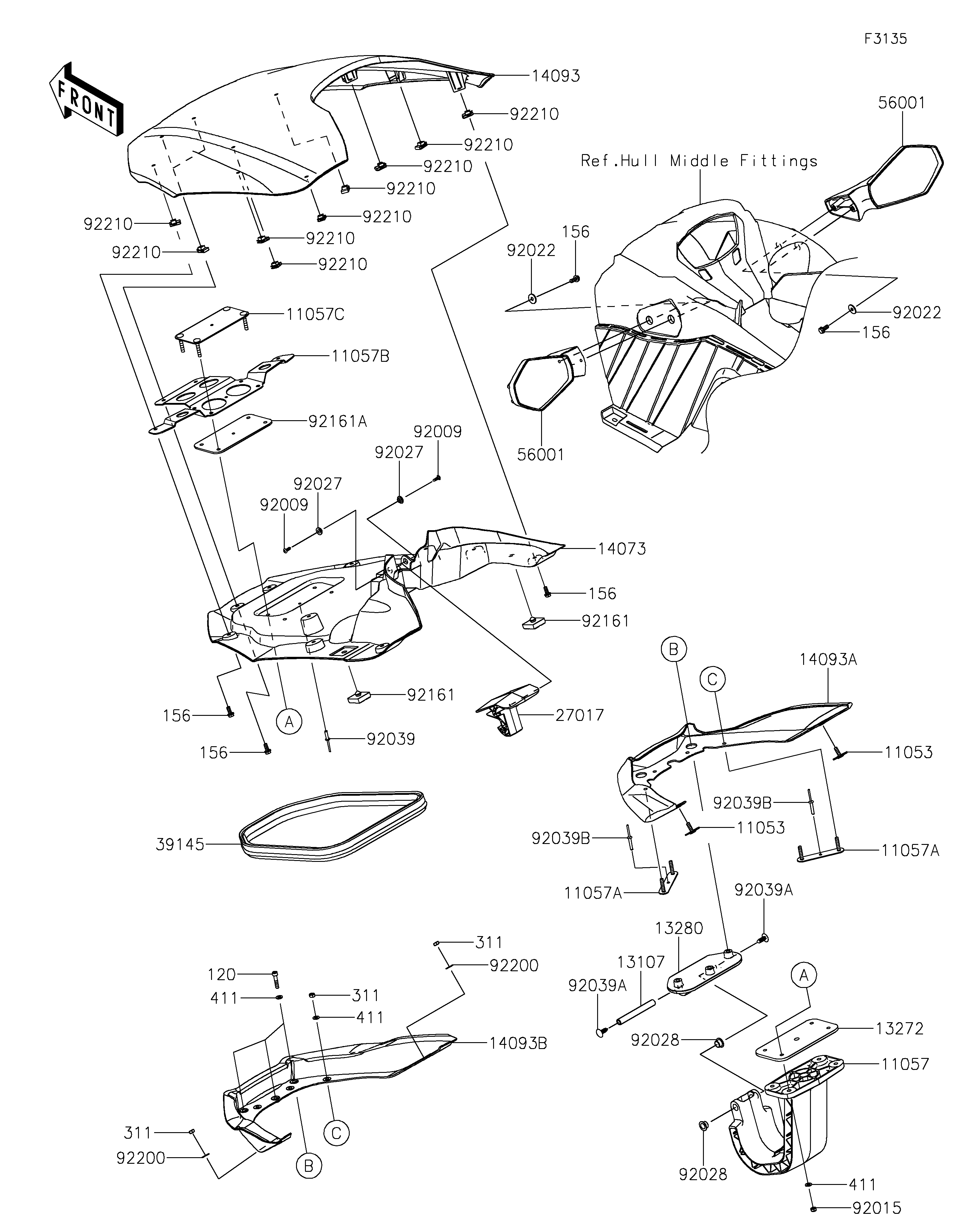

2020 JET SKI® STX®160X - Hull Front Fittings

DOWNLOAD PDF
SELECT A NEW PART
11053
11053
11057
11057A
11057A
11057B
11057C
120
13107
13272
13280
14073
14093
14093A
14093B
156
156
156
156
156
27017
311
311
311
39145
411
411
411
56001
56001
92009
92009
92015
92022
92022
92027
92027
92028
92028
92039
92039A
92039A
92039B
92039B
92161
92161
92161A
92200
92200
92210
92210
92210
92210
92210
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11053 11053-3776 2
BRACKET 11057 11057-2590 1
BRACKET 11057A 11057-2645 2
BRACKET 11057B 11057-7456 1
BRACKET 11057C 11057-7460 1
BOLT-SOCKET,6X30 120 120R0630 3
SHAFT,FRONT HINGE 13107 13107-3802 1
PLATE 13272 13272-3882 AR
HOLDER 13280 13280-0952 1
DUCT,HATCH INNER 14073 14073-0987 1
COVER,FR,HATCH,R.TURQUISE 14093 14093-0895-66A 1
COVER,TRIM,S.BLACK 14093A 14093-0896-839 1
COVER,INNER 14093B 14093-1189 1
BOLT-WP,6X16 156 156R0616 14
LOCK,FR,HATCH 27017 27017-0555 1
NUT-HEX,6MM 311 311R0600 6
TRIM-SEAL,FR,HATCH 39145 39145-0718 1
WASHER-PLAIN,6MM 411 411S0600 11
MIRROR-ASSY 56001 56001-0410 2
SCREW,TAPPING,4X16 92009 92009-3849 2
NUT,LOCK,6MM 92015 92015-3766 4
WASHER,6.5X20X1.5 92022 92022-3710 4
COLLAR,L=4.6 92027 92027-1168 2
BUSHING 92028 92028-3770 2
RIVET 92039 92039-3783 1
RIVET 92039A 92039-3788 2
RIVET 92039B 92039-3794 2
DAMPER,10X34X10 92161 92161-1920 2
DAMPER 92161A 92161-2337 1
WASHER,6.5X16X1.0 92200 92200-3712 2
NUT,6MM 92210 92210-3768 10
