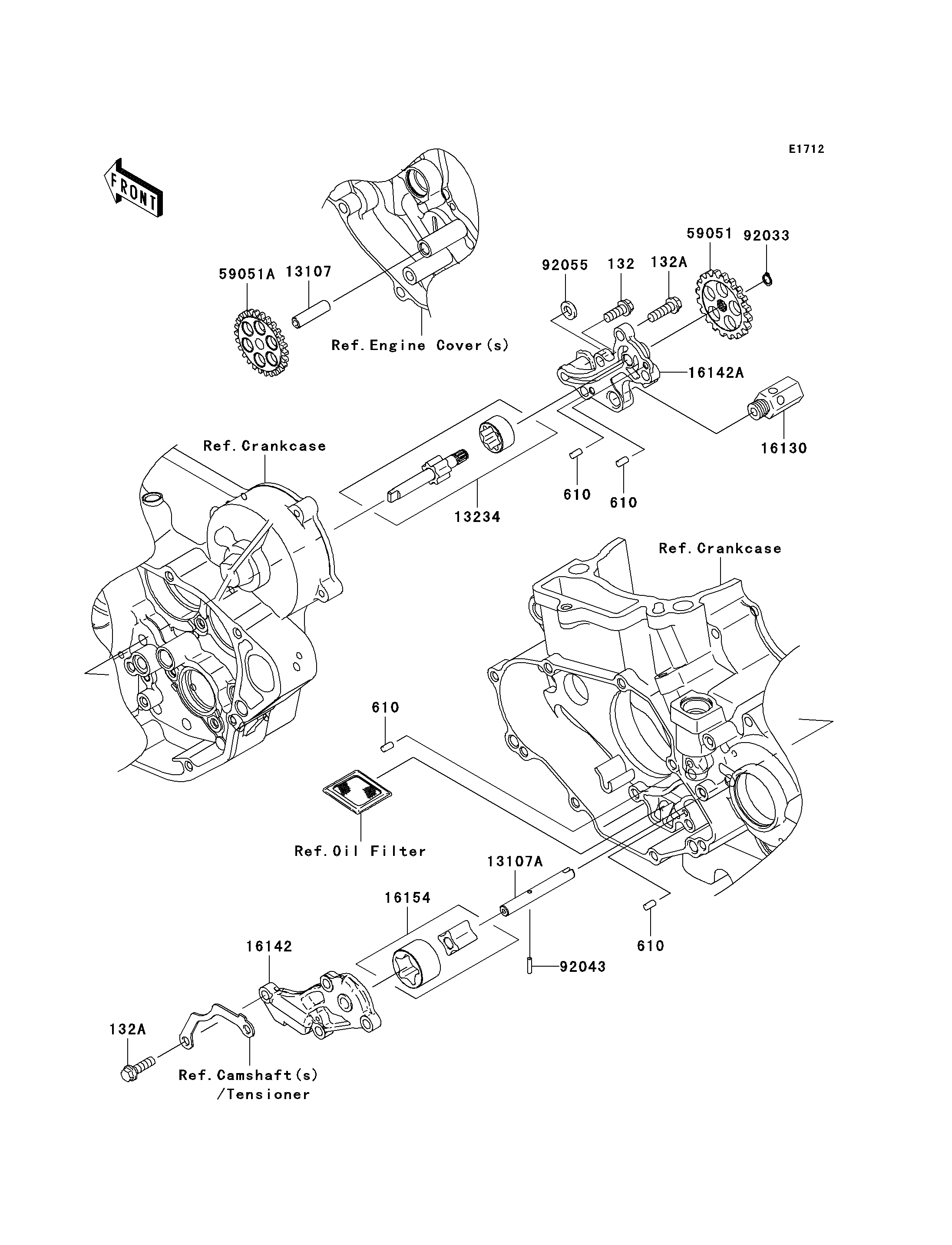

Parts Diagrams |
132
132A
132A
610
610
610
610
13107
13107A
13234
16130
16142
16142A
16154
59051
59051A
92033
92043
92055
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X16 | 132 | 132G0616 | 1 | ||
| BOLT-FLANGED-SMALL,6X20 | 132A | 132G0620 | 7 | ||
| ROLLER,4X8 | 610 | 610A0408 | 4 | ||
| SHAFT | 13107 | 13107-0056 | 1 | ||
| SHAFT,OIL PUMP,SCAVENGE | 13107A | 13107-0134 | 1 | ||
| SHAFT-COMP,FEED | 13234 | 13234-0014 | 1 | ||
| VALVE-ASSY-RELIEF | 16130 | 16130-1058 | 1 | ||
| COVER-PUMP,OIL,LH | 16142 | 16142-0042 | 1 | ||
| COVER-PUMP,OIL,RH | 16142A | 16142-0043 | 1 | ||
| ROTOR-PUMP,SCAVENGE | 16154 | 16154-0069 | 1 | ||
| GEAR-SPUR,O/P DRIVEN,28T | 59051 | 59051-0044 | 1 | ||
| GEAR-SPUR,O/P IDLER,26T | 59051A | 59051-0045 | 1 | ||
| RING-SNAP | 92033 | 92033-0019 | 1 | ||
| PIN,2.5X11.8 | 92043 | 92043-0018 | 1 | ||
| RING-O,OD=13 | 92055 | 92055-074 | 1 |
