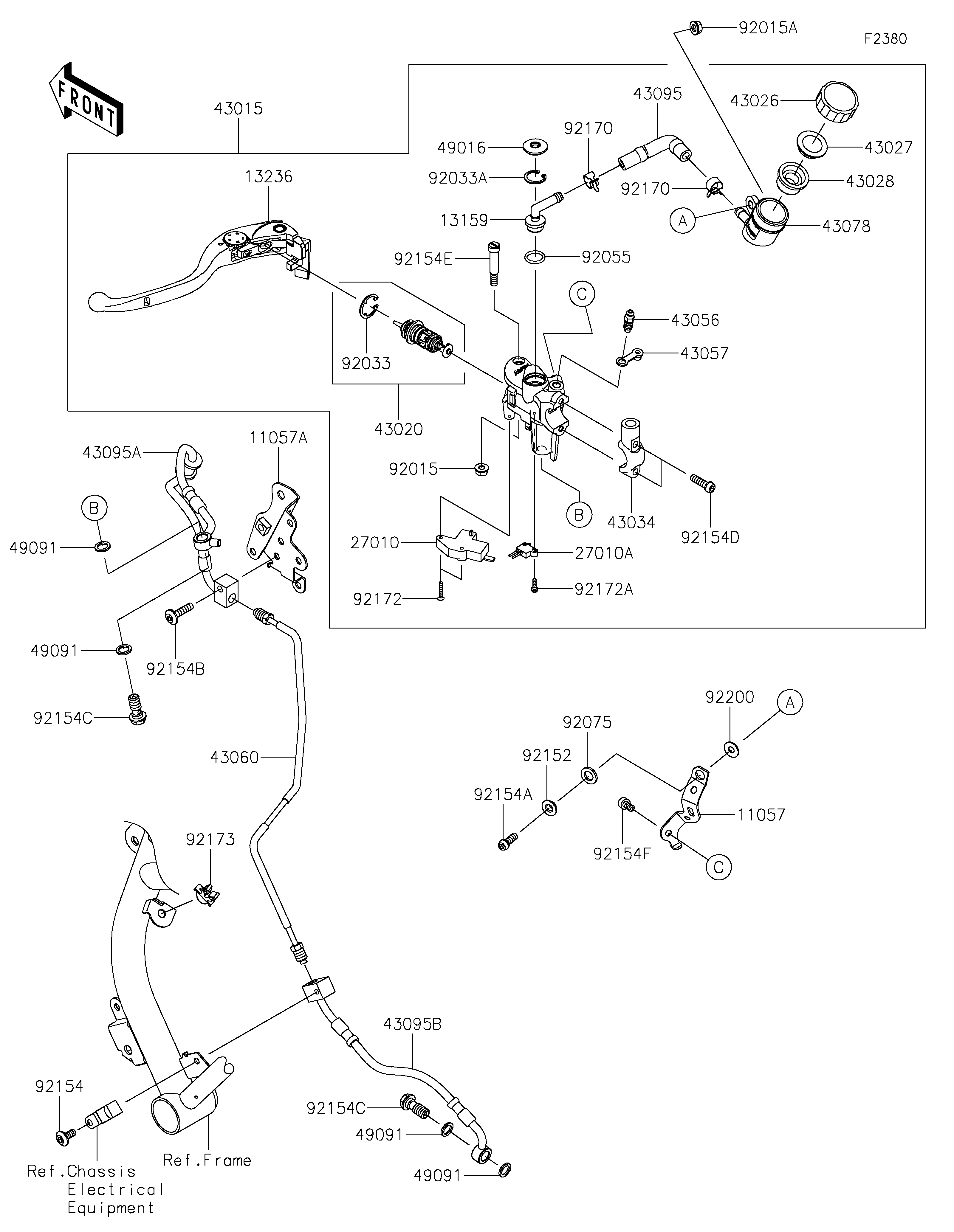

2021 Z H2 SE - Clutch Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
13159
13236
27010
27010A
43015
43020
43026
43027
43028
43034
43056
43057
43060
43078
43095
43095A
43095B
49016
49091
49091
49091
49091
92015
92015A
92033
92033A
92055
92075
92152
92154
92154A
92154B
92154C
92154C
92154D
92154E
92154F
92170
92170
92172
92172A
92173
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RESERVOIR TANK 11057 11057-2909 1
BRACKET,HEAD PIPE 11057A 11057-7240 1
CONNECTOR 13159 13159-1061 1
LEVER-COMP,CLUTCH 13236 13236-0803 1
SWITCH,CLUTCH 27010 27010-0854 1
SWITCH,CRUISE CONTROL CANCEL 27010A 27010-0967 1
CYLINDER-ASSY-MASTER,CLUTCH 43015 43015-0785 1
PISTON-COMP-BRAKE 43020 43020-0028 1
CAP-BRAKE 43026 43026-1070 1
PLATE-DIAPHRAGM 43027 43027-1054 1
DIAPHRAGM 43028 43028-1073 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-0057 1
BREATHER-BRAKE 43056 43056-1056 1
CAP-BREATHER 43057 43057-1001 1
PIPE-BRAKE 43060 43060-0346 1
RESERVOIR 43078 43078-0580 1
HOSE-BRAKE,FR MASTER CYLINDER 43095 43095-0040 1
HOSE-BRAKE,M/C-BRAKE PIPE 43095A 43095-1701 1
HOSE-BRAKE,BRAKE PIPE-ENG. 43095B 43095-1702 1
COVER-SEAL 49016 49016-1147 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
NUT,FLANGED,6MM 92015A 92015-1367 1
RING-SNAP 92033 92033-0034 1
RING-SNAP,20.5MM 92033A 92033-1186 1
RING-O,14.8X2.4 92055 92055-0741 1
DAMPER 92075 92075-1564 1
COLLAR,6.5X10X5.3 92152 92152-1863 1
BOLT,SOCKET,6X14 92154 92154-0907 1
BOLT,SOCKET,6X18 92154A 92154-1455 1
BOLT,SOCKET,6X25 92154B 92154-1532 1
BOLT,BANJO,10X23 92154C 92154-1712 2
BOLT,SOCKET,6X22 92154D 92154-1724 2
BOLT,LEVER 92154E 92154-1912 1
BOLT,SOCKET,6X8 92154F 92154-2914 1
CLAMP,HOSE 92170 92170-1091 2
SCREW 92172 92172-1242 2
SCREW 92172A 92172-1243 1
CLAMP 92173 92173-2180 1
WASHER,6.5X16X1.0 92200 92200-3712 1
