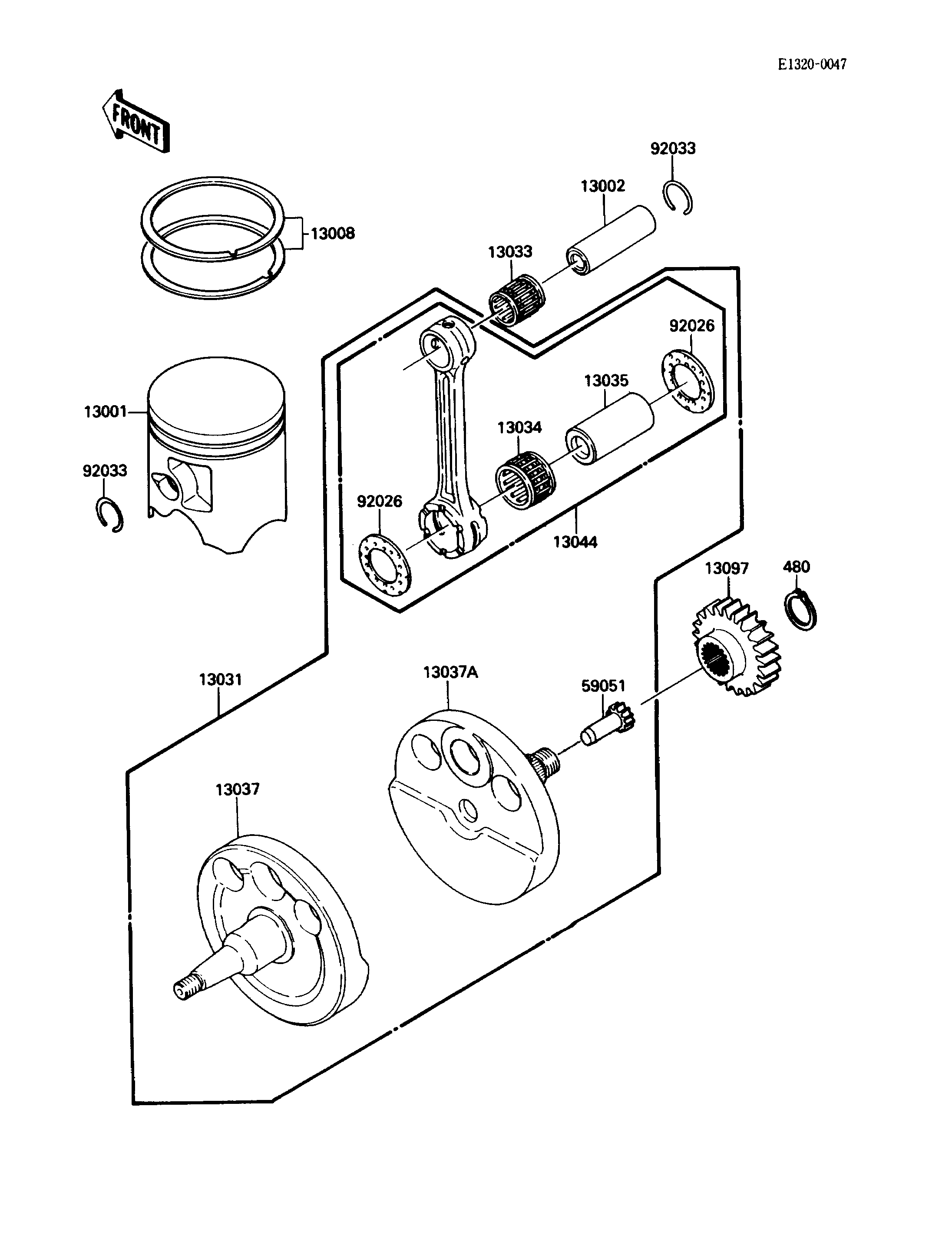

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PISTON-ENGINE 13001 13001-1267 1
PIN-PISTON 13002 13002-1067 1
RING-SET-PISTON 13008 13008-1103 1
CRANKSHAFT-COMP 13031 13031-1260 1
BEARING-NEEDLE,KTV19242.5 13033 13033-031 1
BEARING-BIG END 13034 13034-1083 1
PIN-CRANK 13035 13035-1008 1
CRANKSHAFT,LH 13037 13037-1323 1
CRANKSHAFT,RH 13037A 13037-1324 1
SET-CONNECTING ROD 13044 13044-5072 1
GEAR-PRIMARY SPUR,26T 13097 13097-1205 1
GEAR-SPUR,WATER PUMP,13T 59051 59051-1128 1
SPACER,26X44X1.0 92026 92026-1346 4
RING-SNAP,PISTON PIN 92033 92036-008 2
CIRCLIP-TYPE-C,24MM 480 480J2400 1
