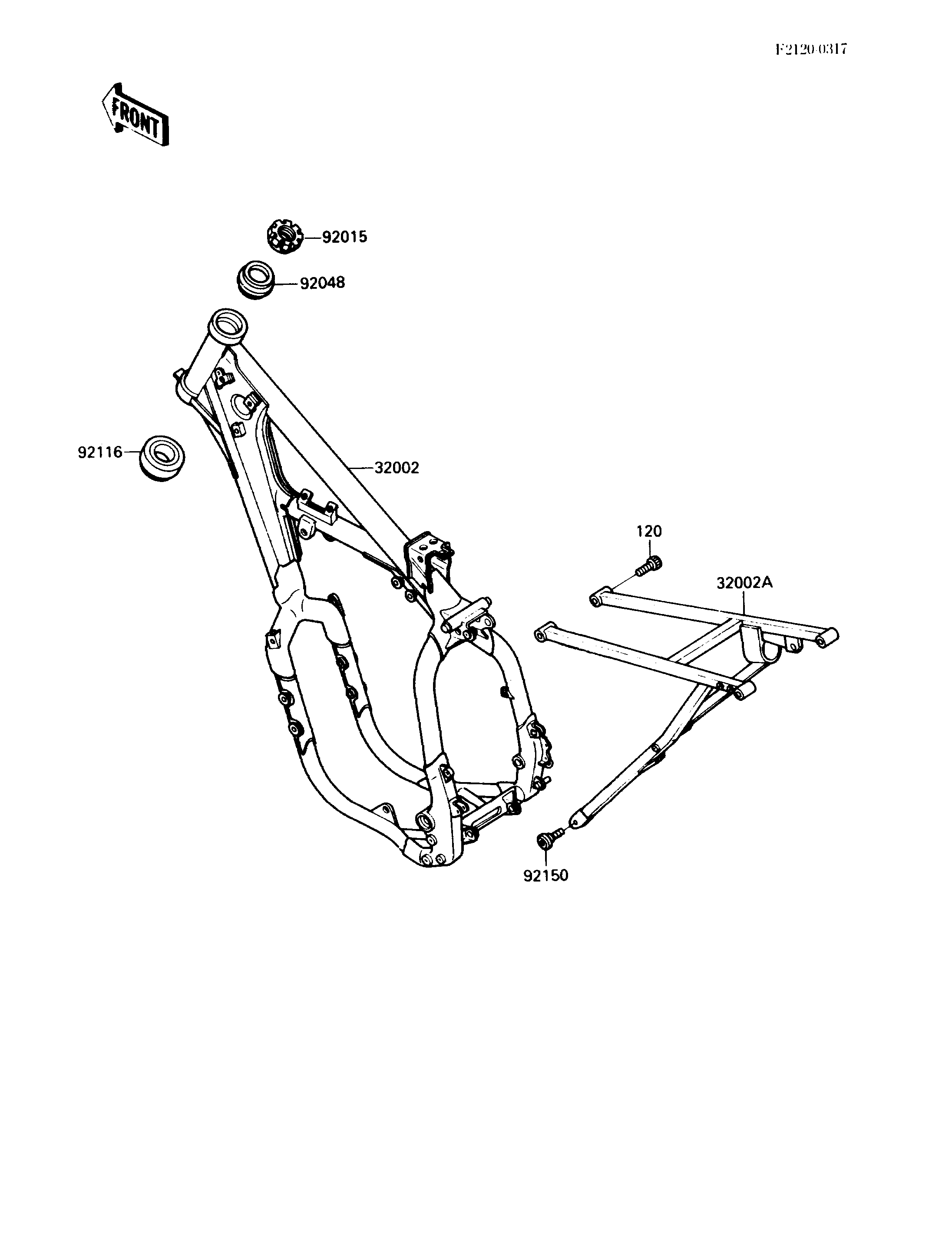

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME-COMP,FR 32002 32002-1964 1
FRAME-COMP,AL,RR 32002A 32002-1965 1
NUT,STEERING STEM,25MM 92015 92015-1684 1
RACE,ROLLER,32005JR RS 92048 92047-017 1
BEARING-ROLLER,LWR,32006JR RS 92116 92116-1008 1
BOLT,SOCKET,8X19 92150 92150-1016 2
BOLT-SOCKET 120 120P0816 2
