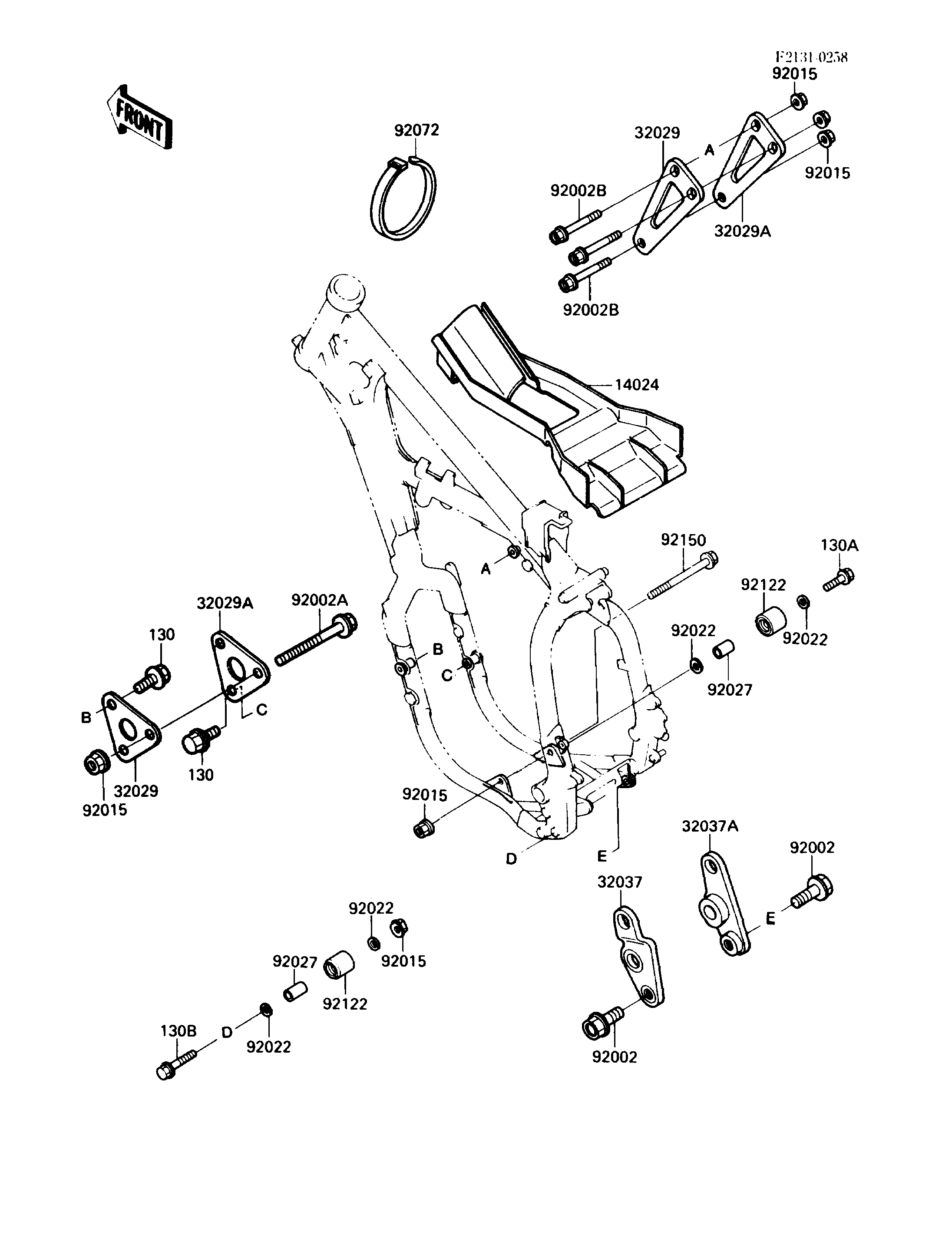

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,AIR FILTER 14024 14024-1561 1
BRACKET-ENGINE 32029 32029-1509 2
BRACKET-ENGINE 32029A 32029-1571 2
BRACKET-SHOCKABSORBER,LH 32037 32037-1461 1
BRACKET-SHOCKABSORBER,RH 32037A 32037-1462 1
BOLT,FLANGED,12X24 92002 92002-1845 2
BOLT,FLANGED,8X90 92002A 92002-1849 1
BOLT,FLANGED,8X47 92002B 92002-1850 3
NUT,8MM 92015 92015-1143 6
WASHER,8.5X22X1.5 92022 92022-1629 4
COLLAR,CHAIN ROLLER 92027 92027-1670 2
BAND,L=218 92072 92072-032 1
ROLLER,CHAIN GUIDE 92122 92122-1153 2
BOLT,FLANGED,8X105 92150 92001-1649 1
BOLT-FLANGED,8X25 130 130G0825 4
BOLT-FLANGED,8X40 130A 130G0840 1
BOLT-FLANGED,8X70 130B 130G0870 1
