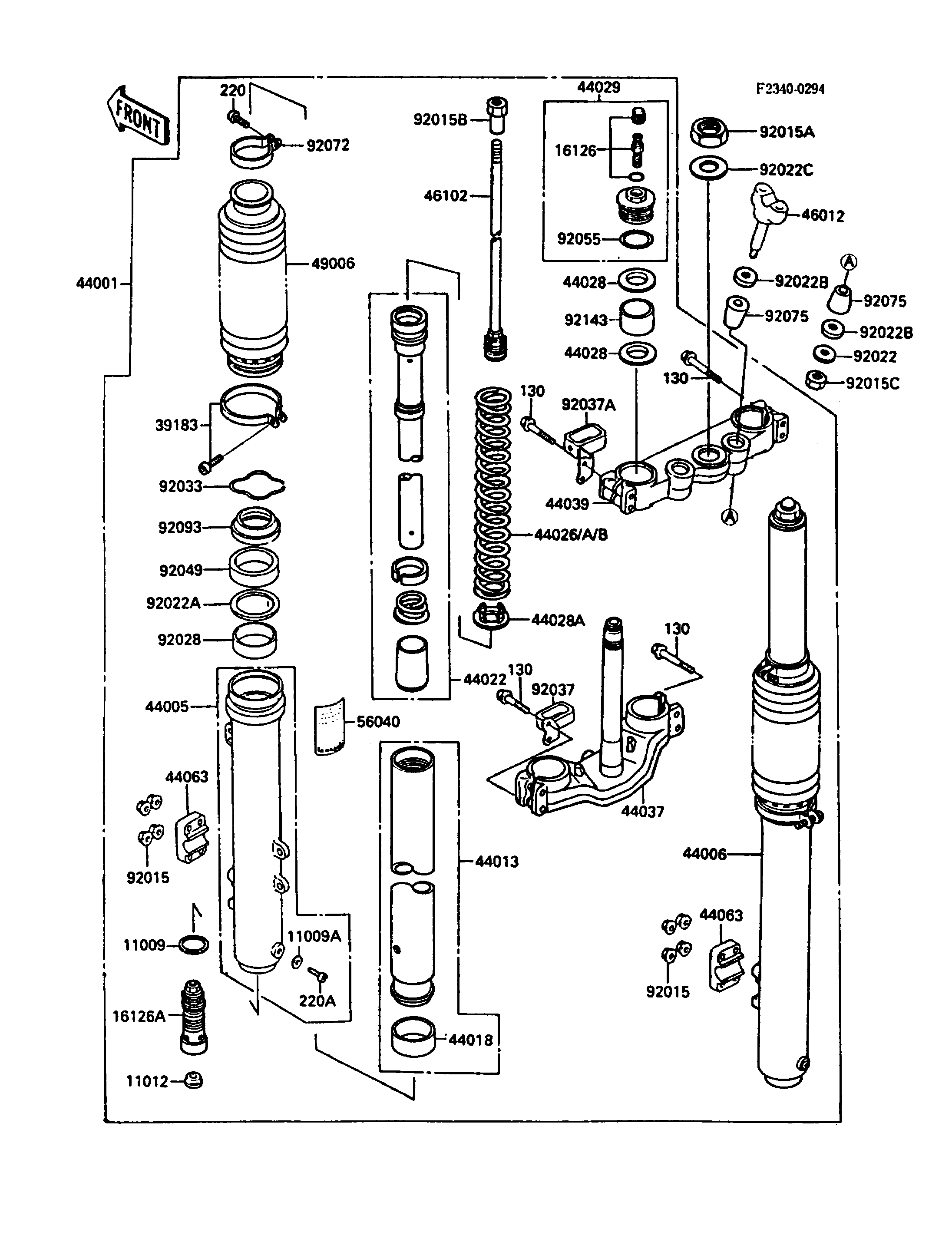

1988 KX500 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER BOLT 11009 11009-1592 2
GASKET,FORK DRAIN PLUG 11009A 44045-002 2
CAP,FORK CYLINDER 11012 11012-1381 2
VALVE,AIR 16126 16126-1052 2
VALVE,FORK CYLINDER 16126A 16126-1206 2
BAND-ASSY,BOOT 39183 39183-1054 2
FORK-FRONT 44001 44001-1675 1
PIPE-LEFT FORK OUTER 44005 44005-1270 1
PIPE-RIGHT FORK OUTER 44006 44006-1267 1
PIPE-FORK INNER 44013 44013-1277 2
BUSHING-FRONT FORK,INNER PIPE 44018 44018-1005 2
CYLINDER-FORK 44022 44022-1225 2
SPRING-FRONT FORK,K=0.38 44026 44026-1325 2 (OPTION)
SPRING-FRONT FORK,K=0.40 44026A 44026-1359 2 (OPTION)
SPRING-FRONT FORK,K=0.39 44026B 44026-1378 2
GUIDE-FORK SPRING 44028 44028-1010 4
GUIDE-FORK SPRING 44028A 44028-1054 2
SEAT-FORK SPRING 44029 44029-1129 2
HOLDER-FORK UNDER 44037 44037-1236 1
HOLDER-FORK UPPER 44039 44039-1176 1
HOLDER-FRONT AXLE 44063 44063-1008 2
HOLDER-HANDLE,LWR 46012 46012-1192 2
ROD,FORK 46102 46102-1237 2
BOOT,FORK 49006 49006-1239 2
LABEL-WARNING,FRONT FORK 56040 56040-1120 1
NUT,FLANGED,6MM 92015 92015-1078 8
NUT,STEERING STEM,22MM 92015A 92015-1653 1
NUT 92015B 92015-1680 2
NUT,LOCK,10MM 92015C 92019-021 2
WASHER,10.2X28X2 92022 92022-1088 2
WASHER 92022A 92022-1299 2
WASHER 92022B 92022-1737 4
WASHER,STEERING STEM 92022C 92022-1873 1
BUSHING 92028 92028-1145 2
RING-SNAP 92033 92033-1077 2
CLAMP 92037 92037-1627 1
CLAMP 92037A 92037-1628 1
SEAL-OIL,FORK OUTER TUBE 92049 92049-1316 2
RING-O 92055 92055-1123 2
BAND,BOOT 92072 92072-1077 2
DAMPER 92075 92075-1776 4
SEAL,FORK DUST 92093 92093-1260 2
COLLAR,FORK,L=23 92143 92143-1142 2
BOLT-FLANGED,8X40 130 130G0840 8
SCREW-PAN-CROS 220 220B0316 2
SCREW-PAN-CROS 220A 220B0408 2
