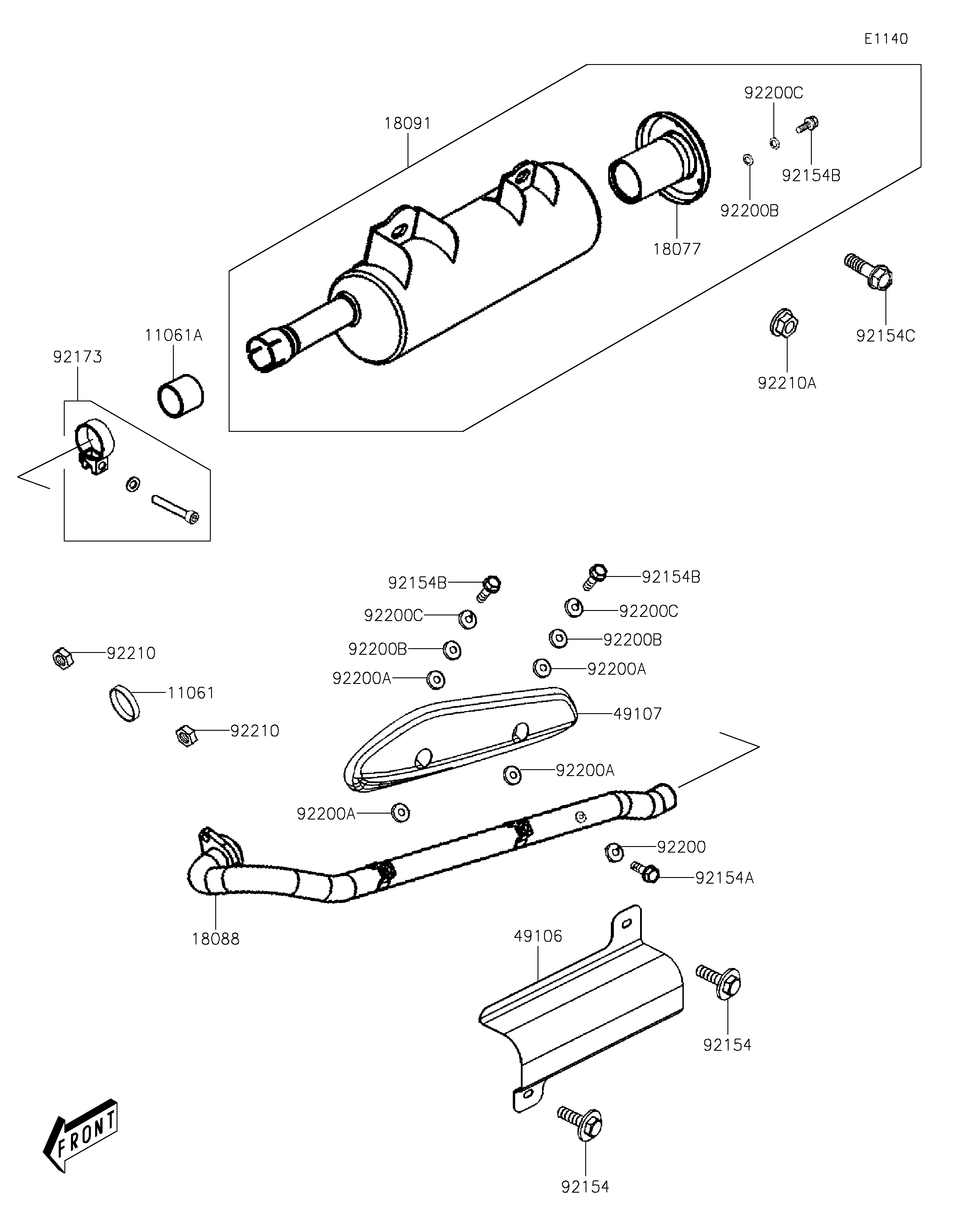

2020 BRUTE FORCE® 300 - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
18077
18088
18091
49106
49107
92154
92154
92154A
92154B
92154B
92154B
92154C
92173
92200
92200A
92200A
92200A
92200A
92200B
92200B
92200B
92200C
92200C
92200C
92210
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE 11061 11061-Y032 1
GASKET,EXHAUST PIPE CONNECTING 11061A 11061-Y033 1
ARRESTER-SPARK 18077 18077-Y001 1
PIPE-EXHAUST 18088 18088-Y001 1
BODY-COMP-MUFFLER 18091 18091-Y001 1
COVER-MUFFLER 49106 49106-Y001 1
COVER-EXHAUST PIPE 49107 49107-Y001 1
BOLT,6X12 92154 92154-Y032 2
BOLT,FLANGE,6X8 92154A 92154-Y034 1
BOLT,FLANGE,6X12 92154B 92154-Y035 3
BOLT,FLANGE,8X30 92154C 92154-Y137 1
CLAMP,MUFFLER 92173 92173-Y021 1
WASHER,6MM 92200 92200-0459 1
WASHER 92200A 92200-Y039 4
WASHER,6MM 92200B 92200-Y040 3
WASHER,6MM 92200C 92200-Y042 3
NUT,8MM 92210 92210-Y075 2
NUT,8MM 92210A 92210-Y076 1
