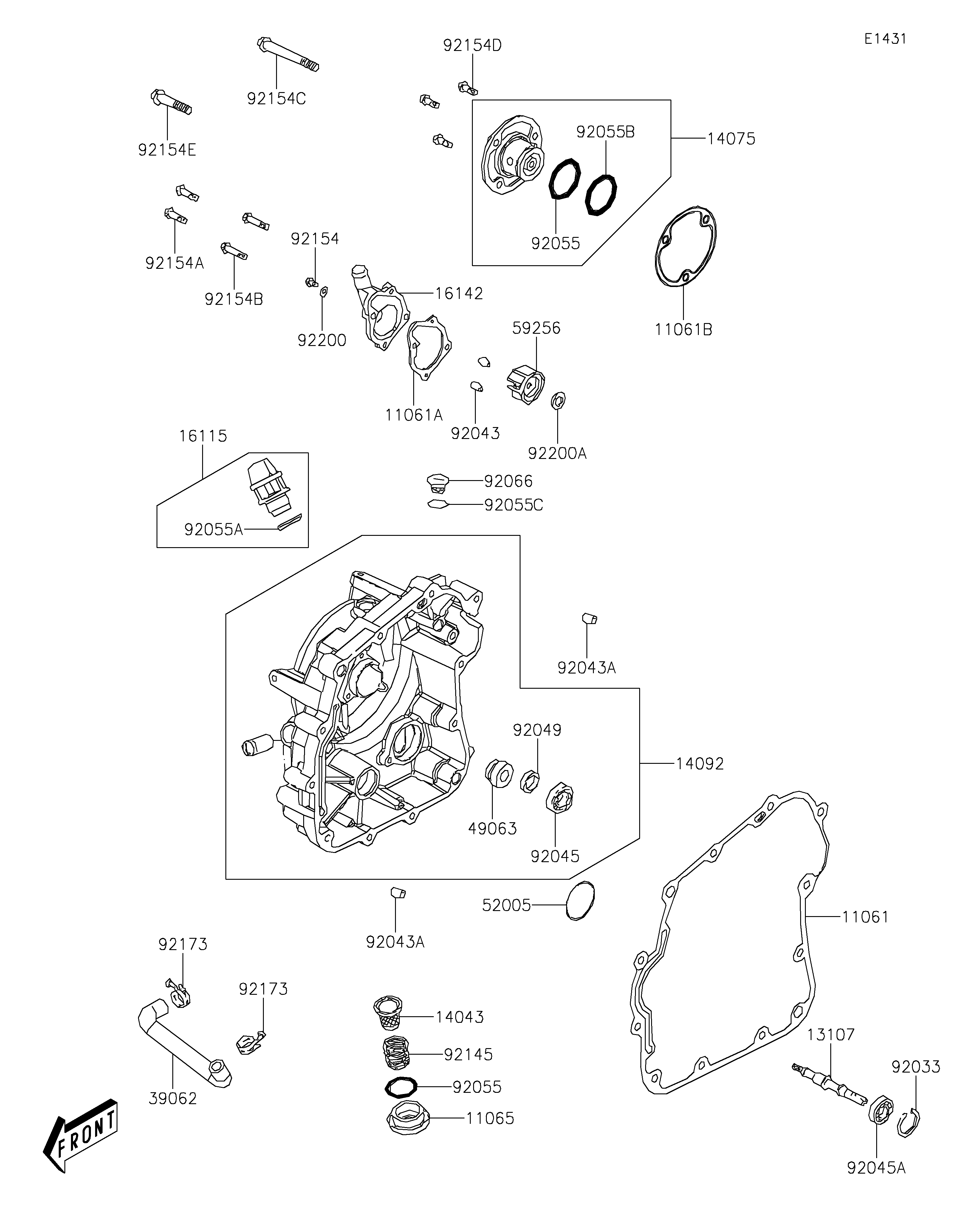

2020 BRUTE FORCE® 300 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
11061B
11065
13107
14043
14075
14092
16115
16142
39062
49063
52005
59256
92033
92043
92043A
92043A
92045
92045A
92049
92055
92055
92055A
92055B
92055C
92066
92145
92154
92154A
92154B
92154C
92154D
92154E
92173
92173
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CRANK CASE COVER,RH 11061 11061-Y028 1
GASKET,WATER PUMP COVER 11061A 11061-Y029 1
GASKET,CRANK CASE COVER CAP 11061B 11061-Y035 1
CAP 11065 11065-Y006 1
SHAFT,WATER PUMP 13107 13107-Y006 1
FILTER,OIL 14043 14043-Y001 1
CAP-ASSY,CRANK CASE COVER,RH 14075 14075-Y001 1
COVER,CRANK CASE,RH 14092 14092-Y007 1
CAP-OIL FILLER 16115 16115-Y002 1
COVER-PUMP,WATER,BLACK 16142 16142-Y001-944 1
HOSE-COOLING 39062 39062-Y006 1
SEAL-MECHANICAL 49063 49063-Y002 1
GAUGE,OIL LEVEL 52005 52005-Y002 1
IMPELLER 59256 59256-Y001 1
RING-SNAP,26MM 92033 92033-Y015 1
PIN,8X14 92043 92043-Y012 2
PIN,10X16 92043A 92043-Y013 2
BEARING-BALL,6901 92045 92045-Y017 1
BEARING-BALL,6000 92045A 92045-Y018 1
SEAL-OIL,12X20X4 92049 92049-Y011 1
RING-O,30.8MM 92055 92055-Y005 2
RING-O,18X3 92055A 92055-Y011 1
RING-O,27.4X2.1 92055B 92055-Y022 1
RING-O,13.8X2.5 92055C 92055-Y023 1
PLUG,COVER 92066 92066-Y009 1
SPRING 92145 92145-Y005 1
BOLT,FLANGE,6X10 92154 92154-Y013 1
BOLT,FLANGE,6X22 92154A 92154-Y067 2
BOLT,FLANGE,6X28 92154B 92154-Y068 2
BOLT,6X125 92154C 92154-Y121 8
BOLT,FLANGE,6X16 92154D 92154-Y134 3
BOLT,FLANGE,6X45 92154E 92154-Y135 4
CLAMP 92173 92173-Y005 2
WASHER,6MM 92200 92200-Y024 1
WASHER,7.2X13X1.2 92200A 92200-Y025 1
