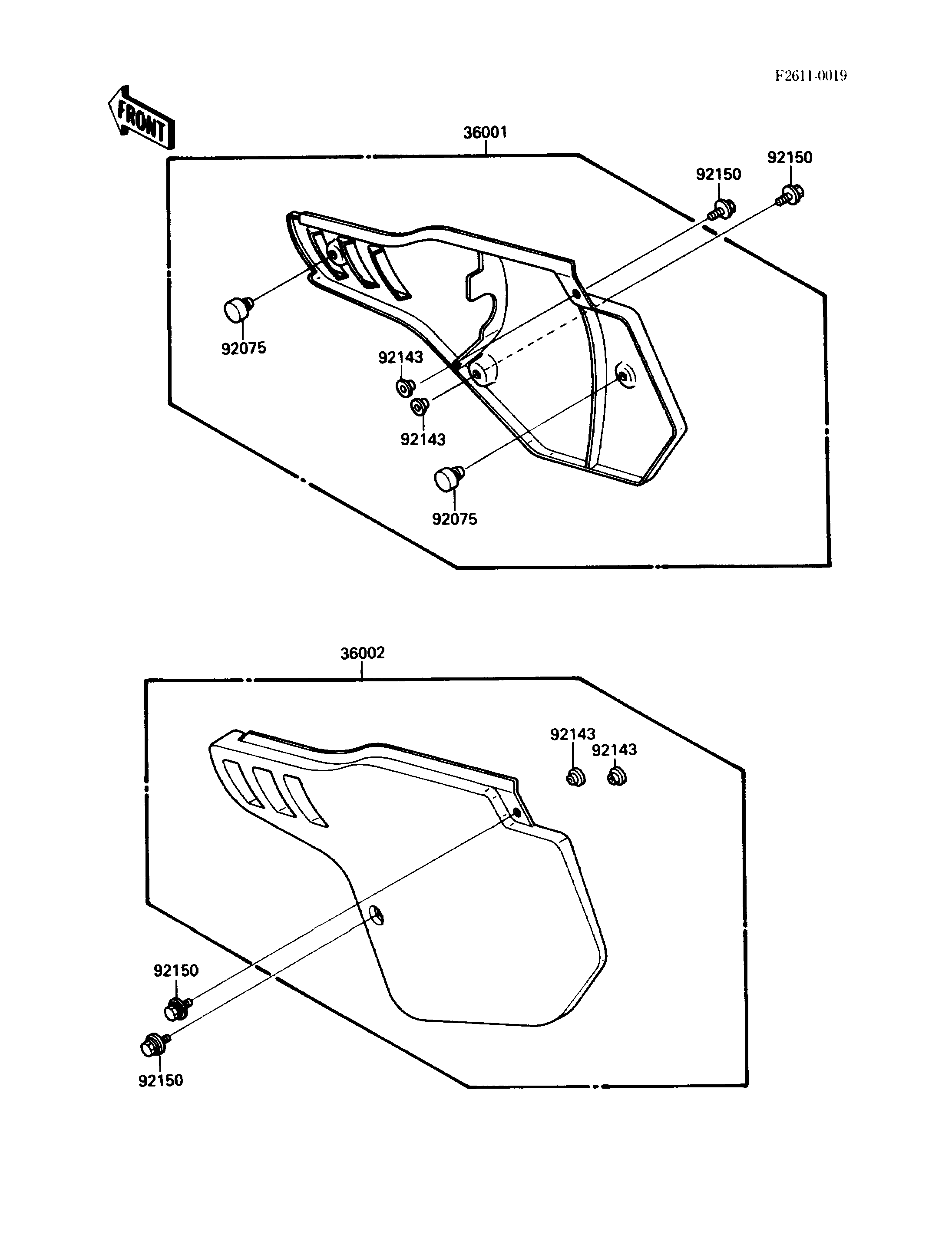

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,RH,GREEN/WHITE 36001 36001-1376-AC 1
COVER-SIDE,LH,L.GREEN 36002 36002-5451-6W 1
DAMPER 92075 92075-1598 2
COLLAR 92143 92143-1196 4
BOLT,FLANGED,6X20 92150 92150-1131 4
