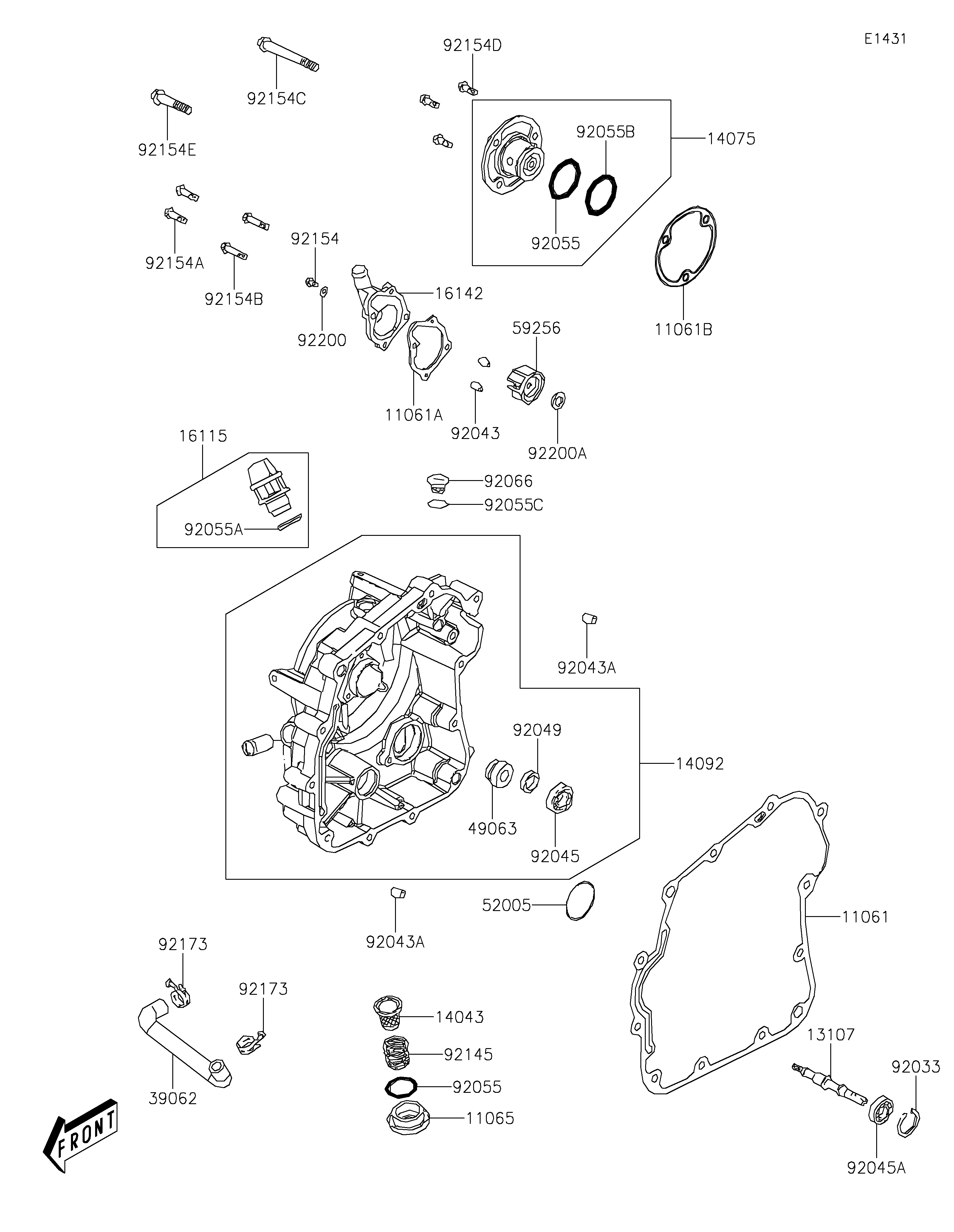

2021 BRUTE FORCE® 300 - Engine Cover(s)
11061
11061A
11061B
11065
13107
14043
14075
14092
16115
16142
39062
49063
52005
59256
92033
92043
92043A
92043A
92045
92045A
92049
92055
92055
92055A
92055B
92055C
92066
92145
92154
92154A
92154B
92154C
92154D
92154E
92173
92173
92200
92200A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,CRANK CASE COVER,RH | 11061 | 11061-Y028 | 1 | ||
GASKET,WATER PUMP COVER | 11061A | 11061-Y029 | 1 | ||
GASKET,CRANK CASE COVER CAP | 11061B | 11061-Y035 | 1 | ||
CAP | 11065 | 11065-Y006 | 1 | ||
SHAFT,WATER PUMP | 13107 | 13107-Y006 | 1 | ||
FILTER,OIL | 14043 | 14043-Y001 | 1 | ||
CAP-ASSY,CRANK CASE COVER,RH | 14075 | 14075-Y001 | 1 | ||
COVER,CRANK CASE,RH | 14092 | 14092-Y007 | 1 | ||
CAP-OIL FILLER | 16115 | 16115-Y002 | 1 | ||
COVER-PUMP,WATER,BLACK | 16142 | 16142-Y001-944 | 1 | ||
HOSE-COOLING | 39062 | 39062-Y006 | 1 | ||
SEAL-MECHANICAL | 49063 | 49063-Y002 | 1 | ||
GAUGE,OIL LEVEL | 52005 | 52005-Y002 | 1 | ||
IMPELLER | 59256 | 59256-Y001 | 1 | ||
RING-SNAP,26MM | 92033 | 92033-Y015 | 1 | ||
PIN,8X14 | 92043 | 92043-Y012 | 2 | ||
PIN,10X16 | 92043A | 92043-Y013 | 2 | ||
BEARING-BALL,6901 | 92045 | 92045-Y017 | 1 | ||
BEARING-BALL,6000 | 92045A | 92045-Y018 | 1 | ||
SEAL-OIL,12X20X4 | 92049 | 92049-Y011 | 1 | ||
RING-O,30.8MM | 92055 | 92055-Y005 | 2 | ||
RING-O,18X3 | 92055A | 92055-Y011 | 1 | ||
RING-O,27.4X2.1 | 92055B | 92055-Y022 | 1 | ||
RING-O,13.8X2.5 | 92055C | 92055-Y023 | 1 | ||
PLUG,COVER | 92066 | 92066-Y009 | 1 | ||
SPRING | 92145 | 92145-Y005 | 1 | ||
BOLT,FLANGE,6X10 | 92154 | 92154-Y013 | 1 | ||
BOLT,FLANGE,6X22 | 92154A | 92154-Y067 | 2 | ||
BOLT,FLANGE,6X28 | 92154B | 92154-Y068 | 2 | ||
BOLT,6X125 | 92154C | 92154-Y121 | 8 | ||
BOLT,FLANGE,6X16 | 92154D | 92154-Y134 | 3 | ||
BOLT,FLANGE,6X45 | 92154E | 92154-Y135 | 4 | ||
CLAMP | 92173 | 92173-Y005 | 2 | ||
WASHER,6MM | 92200 | 92200-Y024 | 1 | ||
WASHER,7.2X13X1.2 | 92200A | 92200-Y025 | 1 |
