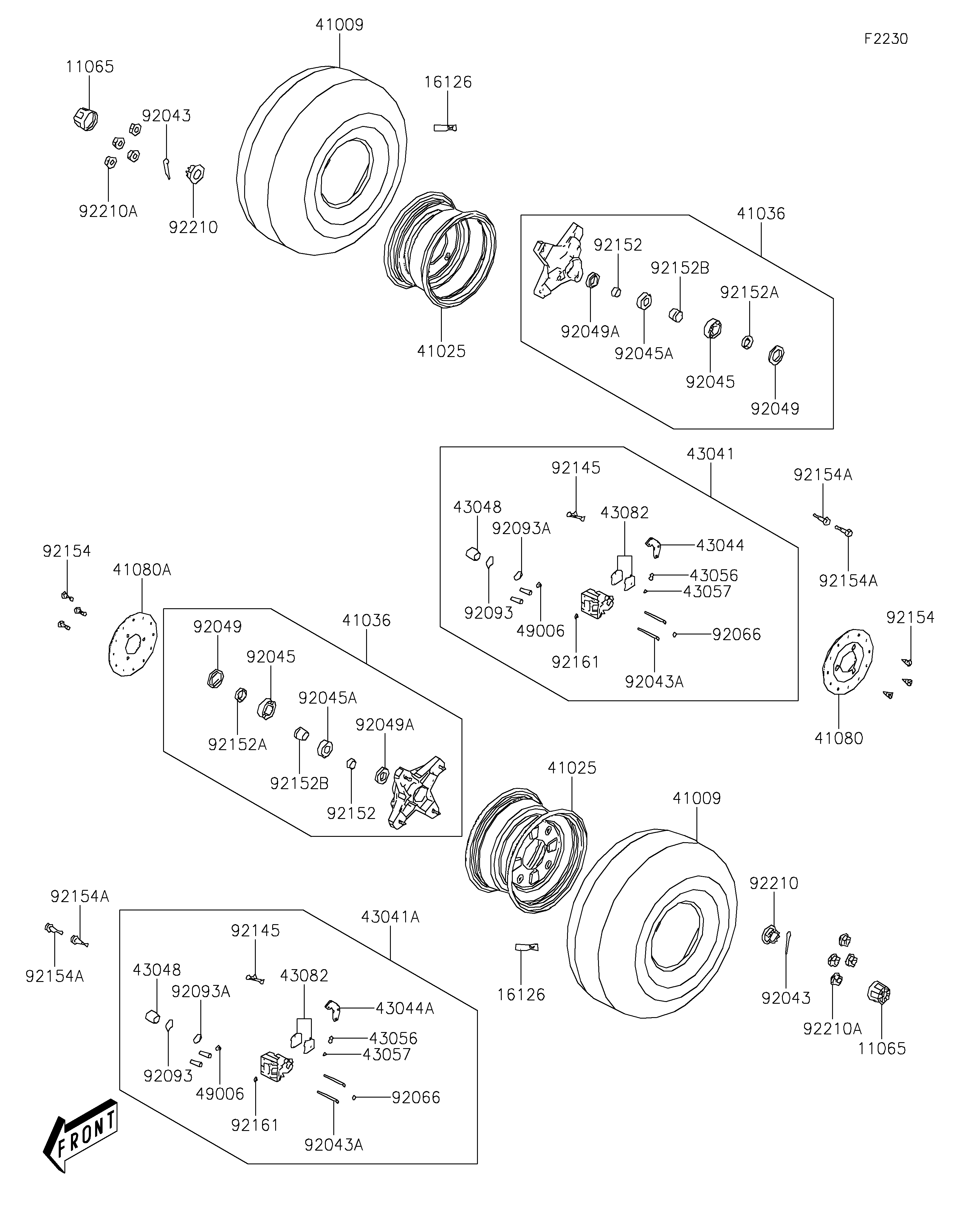

Parts Diagrams |
11065
11065
16126
16126
41009
41009
41025
41025
41036
41036
41080
41080A
43041
43041A
43044
43044A
43048
43048
43056
43056
43057
43057
43082
43082
49006
49006
92043
92043
92043A
92043A
92045
92045
92045A
92045A
92049
92049
92049A
92049A
92066
92066
92093
92093
92093A
92093A
92145
92145
92152
92152
92152A
92152A
92152B
92152B
92154
92154
92154A
92154A
92154A
92154A
92161
92161
92210
92210
92210A
92210A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,WHEEL | 11065 | 11065-Y015 | 2 | ||
VALVE,RIM | 16126 | 16126-Y001 | 2 | ||
TIRE,FR | 41009 | 41009-Y004 | 2 | ||
RIM,FR,BLACK | 41025 | 41025-Y004-935 | 2 | ||
HUB-ASSY,FR | 41036 | 41036-Y004 | 2 | ||
DISC,FR,RH | 41080 | 41080-Y002 | 1 | ||
DISC,FR,LH | 41080A | 41080-Y003 | 1 | ||
CALIPER-ASSY,FR,RH | 43041 | 43041-Y002 | 1 | ||
CALIPER-ASSY,FR,LH | 43041A | 43041-Y003 | 1 | ||
HOLDER-COMP-CALIPER,FR | 43044 | 43044-Y001 | 1 | ||
HOLDER-COMP-CALIPER,FR,LH | 43044A | 43044-Y005 | 1 | ||
PISTON-CALIPER | 43048 | 43048-Y002 | 2 | ||
BREATHER-BRAKE | 43056 | 43056-Y001 | 2 | ||
CAP-BREATHER | 43057 | 43057-Y001 | 2 | ||
PAD-ASSY-BRAKE | 43082 | 43082-Y003 | 2 | ||
BOOT,CALIPER | 49006 | 49006-Y005 | 2 | ||
PIN,3X25 | 92043 | 92043-Y011 | 2 | ||
PIN,HANGER | 92043A | 92043-Y019 | 4 | ||
BEARING-BALL,6004 | 92045 | 92045-Y024 | 2 | ||
BEARING-BALL,6202 | 92045A | 92045-Y025 | 2 | ||
SEAL-OIL,28X42X7 | 92049 | 92049-Y016 | 2 | ||
SEAL-OIL,20X35X7 | 92049A | 92049-Y017 | 2 | ||
PLUG | 92066 | 92066-Y001 | 2 | ||
SEAL,DUST | 92093 | 92093-Y005 | 2 | ||
SEAL,PISTON | 92093A | 92093-Y006 | 2 | ||
SPRING,PAD | 92145 | 92145-Y035 | 2 | ||
COLLAR | 92152 | 92152-Y020 | 2 | ||
COLLAR | 92152A | 92152-Y021 | 2 | ||
COLLAR | 92152B | 92152-Y022 | 2 | ||
BOLT,8X24 | 92154 | 92154-Y025 | 6 | ||
BOLT,FLANGE,8X20 | 92154A | 92154-Y053 | 4 | ||
DAMPER | 92161 | 92161-Y012 | 2 | ||
NUT,14MM | 92210 | 92210-Y025 | 2 | ||
NUT,10MM | 92210A | 92210-Y044 | 8 |
