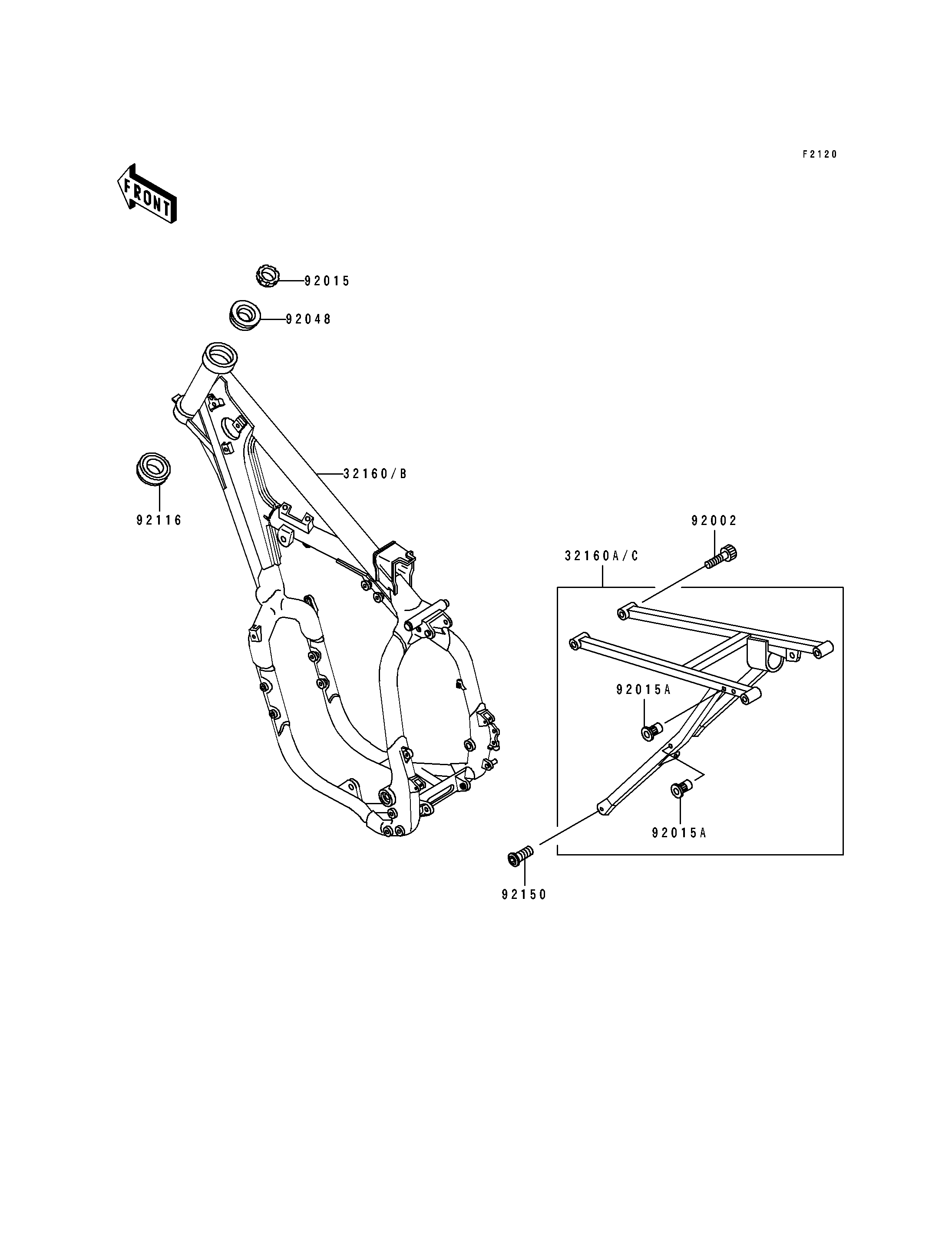

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME-COMP,RR 32160A 32160-1031 1
FRAME-COMP,FR 32160B 32160-1095 1
BOLT,SOCKET,10X17 92002 92002-1713 2
NUT,STEERING STEM,25MM 92015 92015-1684 1
NUT,POP,6MM 92015A 92015-1792 8
RACE,ROLLER,32005JR RS 92048 92047-017 1
BEARING-ROLLER,LWR,32006JR RS 92116 92116-1008 1
BOLT,SOCKET,8X19 92150 92150-1266 2
