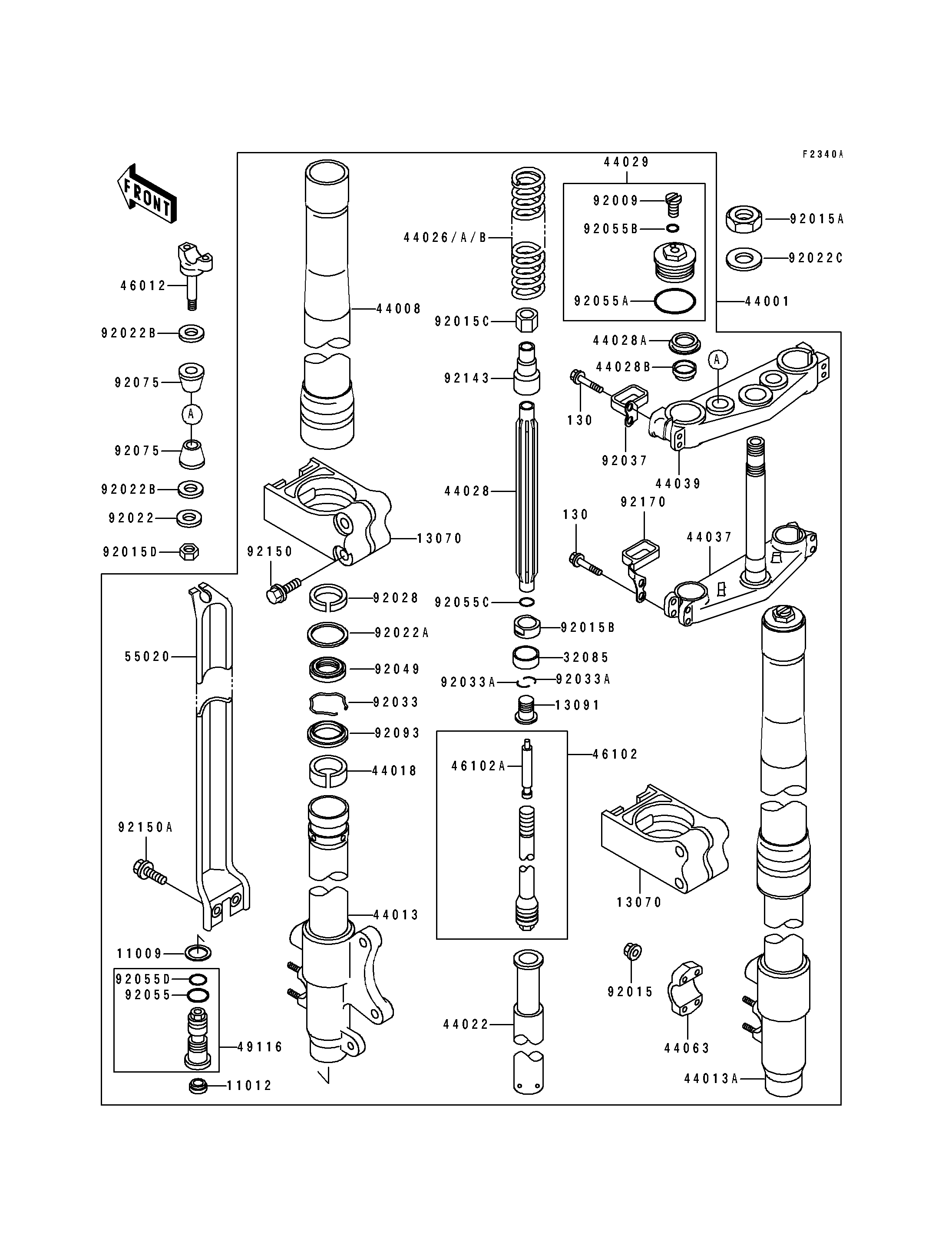

1990 KX500 - Front Fork(KX500-E2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11009 11009-1791 2
CAP 11012 11012-1692 2
GUIDE 13070 13070-1204 2
HOLDER 13091 13091-1651 2
STOPPER 32085 32085-1323 2
FORK-FRONT 44001 44001-1767 1
PIPE-FORK OUTER 44008 44008-1006 2
PIPE-FORK INNER,LH 44013 44013-1307 1
PIPE-FORK INNER,RH 44013A 44013-1308 1
PISTON-FORK 44018 44018-1054 2
CYLINDER-FORK 44022 44022-1248 2
SPRING-FRONT FORK,K=0.39 44026 44026-1444 2
SPRING-FRONT FORK,K=0.38 44026A 44026-1453 2 (OPTION)
SPRING-FRONT FORK,K=0.40 44026B 44026-1455 2 (OPTION)
GUIDE-FORK SPRING 44028 44028-1069 2
GUIDE-FORK SPRING 44028A 44028-1070 2
GUIDE-FORK SPRING 44028B 44028-1071 2
SEAT-FORK SPRING 44029 44029-1141 2
HOLDER-FORK UNDER 44037 44037-1263 1
HOLDER-FORK UPPER 44039 44039-1190 1
HOLDER-FRONT AXLE 44063 44063-1056 2
HOLDER-HANDLE,LWR 46012 46012-1192 2
ROD,FORK 46102 46102-1290 2
ROD,FORK 46102A 46102-1303 2
VALVE-ASSY 49116 49116-1088 2
GUARD,FORK 55020 55020-1384 2
SCREW 92009 92009-1568 2
NUT,FLANGED,6MM 92015 92015-1078 8
NUT,STEERING STEM,22MM 92015A 92015-1653 1
NUT 92015B 92015-1805 2
NUT 92015C 92015-1806 2
NUT,LOCK,10MM 92015D 92019-021 2
WASHER,10.2X28X2 92022 92022-1088 2
WASHER,FORK OUTER TUBE 92022A 92022-1298 2
WASHER 92022B 92022-1737 4
WASHER,STEERING STEM 92022C 92022-1873 1
BUSHING 92028 92028-1566 2
RING-SNAP 92033 92033-1036 2
RING-SNAP 92033A 92033-1271 4
CLAMP 92037 92037-1628 1
SEAL-OIL 92049 92049-1338 2
RING-O,FORK TOP CAP 92055 92055-1062 2
RING-O 92055A 92055-1115 2
RING-O 92055B 92055-1441 2
RING-O 92055C 92055-1442 2
RING-O 92055D 92055-1513 2
DAMPER 92075 92075-1776 4
SEAL 92093 92093-1305 2
COLLAR,FORK 92143 92143-1374 2
BOLT,5X35 92150 92150-1270 4
BOLT,6X14 92150A 92150-1340 4
CLAMP 92170 92170-1088 1
BOLT-FLANGED,8X40 130 130G0840 8
