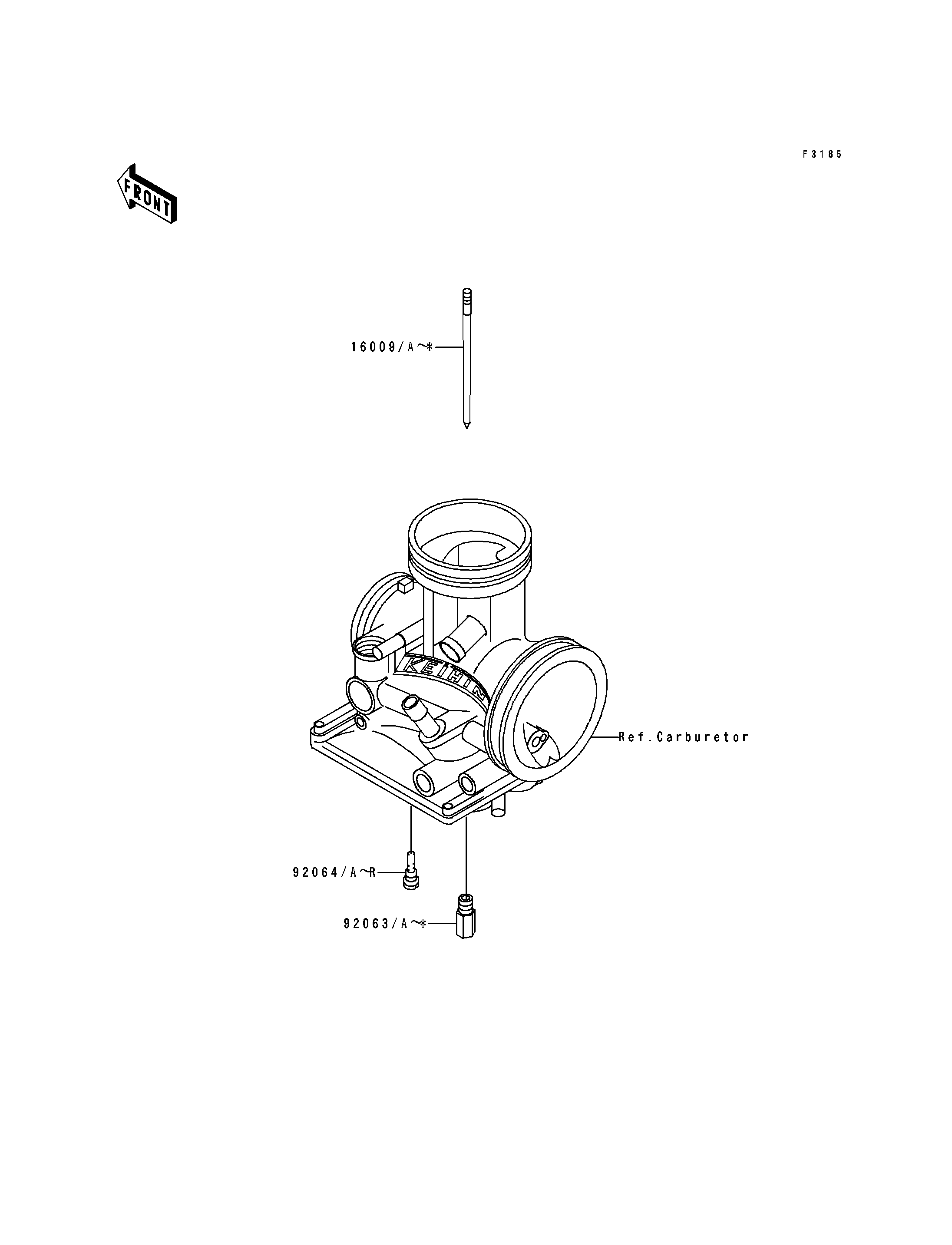

1989 KX500 - Optional Parts(4/4)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NEEDLE-JET,R1367N 16009 16009-1401 1
NEEDLE-JET,R1168N 16009* 16009-1438 1
NEEDLE-JET,R1169N 16009* 16009-1439 1
NEEDLE-JET,R1170N 16009* 16009-1440 1
NEEDLE-JET,R1368N 16009A 16009-1402 1
NEEDLE-JET,R1369N 16009B 16009-1403 1
NEEDLE-JET,R1370N 16009C 16009-1404 1
NEEDLE-JET,R1371N 16009D 16009-1405 1
NEEDLE-JET,R1366J 16009E 16009-1406 1
NEEDLE-JET,R1367J 16009F 16009-1407 1
NEEDLE-JET,R1368J 16009G 16009-1408 1
NEEDLE-JET,R1369J 16009H 16009-1409 1
NEEDLE-JET,R1370J 16009I 16009-1410 1
NEEDLE-JET,R2069J 16009J 16009-1411 1
NEEDLE-JET,R2070J 16009K 16009-1412 1
NEEDLE-JET,R2071J 16009L 16009-1413 1
NEEDLE-JET,R2072J 16009M 16009-1414 1
NEEDLE-JET,R2073J 16009N 16009-1415 1
NEEDLE-JET,R1166J 16009O 16009-1416 1
NEEDLE-JET,R1167J 16009P 16009-1417 1
NEEDLE-JET,R1168J 16009Q 16009-1418 1
NEEDLE-JET,R1169J 16009R 16009-1419 1
NEEDLE-JET,R1170J 16009S 16009-1420 1
NEEDLE-JET,R1171J 16009T 16009-1421 1
NEEDLE-JET,R1371J 16009U 16009-1422 1
NEEDLE-JET,R1466J 16009V 16009-1423 1
NEEDLE-JET,R1467J 16009W 16009-1424 1
NEEDLE-JET,R1468J 16009X 16009-1425 1
NEEDLE-JET,R1469J 16009Y 16009-1426 1
NEEDLE-JET,R1470J 16009Z 16009-1427 1
NEEDLE-JET,R1471J 160090 16009-1428 1
NEEDLE-JET,R1472J 160091 16009-1429 1
NEEDLE-JET,R1473J 160092 16009-1430 1
NEEDLE-JET,R2269J 160093 16009-1431 1
NEEDLE-JET,R2270J 160094 16009-1432 1
NEEDLE-JET,R2271J 160095 16009-1433 1
NEEDLE-JET,R2272J 160096 16009-1434 1
NEEDLE-JET,R2273J 160097 16009-1435 1
NEEDLE-JET,R1166N 160098 16009-1436 1
NEEDLE-JET,R1167N 160099 16009-1437 1
NEEDLE-JET,R1171N 16009* 16009-1441 1
NEEDLE-JET,R1366N 16009* 16009-1442 1
NEEDLE-JET,R1466N 16009* 16009-1443 1
NEEDLE-JET,R1467N 16009* 16009-1444 1
NEEDLE-JET,R1468N 16009* 16009-1445 1
NEEDLE-JET,R1469N 16009* 16009-1446 1
NEEDLE-JET,R1470N 16009* 16009-1447 1
NEEDLE-JET,R1471N 16009* 16009-1448 1
NEEDLE-JET,R1472N 16009* 16009-1449 1
NEEDLE-JET,R1473N 16009* 16009-1450 1
NEEDLE-JET,R2069N 16009* 16009-1451 1
NEEDLE-JET,R2070N 16009* 16009-1452 1
NEEDLE-JET,R2071N 16009* 16009-1453 1
NEEDLE-JET,R2072N 16009* 16009-1454 1
NEEDLE-JET,R2073N 16009* 16009-1455 1
NEEDLE-JET,R2269N 16009* 16009-1456 1
NEEDLE-JET,R2270N 16009* 16009-1457 1
NEEDLE-JET,R2271N 16009* 16009-1458 1
NEEDLE-JET,R2272N 16009* 16009-1459 1
NEEDLE-JET,R2273N 16009* 16009-1460 1
NEEDLE-JET,R2065N 16009* 16009-1510 1
NEEDLE-JET,R2066N 16009* 16009-1511 1
NEEDLE-JET,R2067N 16009* 16009-1512 1
NEEDLE-JET,R2068N 16009* 16009-1513 1
NEEDLE-JET,R1364N 16009* 16009-1514 1
NEEDLE-JET,R1365N 16009* 16009-1515 1
NEEDLE-JET,R1172N 16009* 16009-1523 1
NEEDLE-JET,R1173N 16009* 16009-1524 1
NEEDLE-JET,R1174N 16009* 16009-1525 1
NEEDLE-JET,R1366H 16009* 16009-1526 1
NEEDLE-JET,R1367H 16009* 16009-1527 1
NEEDLE-JET,R1368H 16009* 16009-1528 1
NEEDLE-JET,R1369H 16009* 16009-1529 1
NEEDLE-JET,R1370H 16009* 16009-1530 1
NEEDLE-JET,R2065M 16009* 16009-1531 1
NEEDLE-JET,R2066M 16009* 16009-1532 1
NEEDLE-JET,R2067M 16009* 16009-1533 1
NEEDLE-JET,R2068M 16009* 16009-1534 1
NEEDLE-JET,R2069M 16009* 16009-1535 1
JET-MAIN,#125 92063 92063-1334 1
JET-MAIN,#192 92063* 92063-1381 1
JET-MAIN,#195 92063* 92063-1382 1
JET-MAIN,#198 92063* 92063-1383 1
JET-MAIN,#200 92063* 92063-1384 1
JET-MAIN,#128 92063A 92063-1335 1
JET-MAIN,#130 92063B 92063-1336 1
JET-MAIN,#132 92063C 92063-1337 1
JET-MAIN,#135 92063D 92063-1338 1
JET-MAIN,#100 92063E 92063-1349 1
JET-MAIN,#102 92063F 92063-1350 1
JET-MAIN,#105 92063G 92063-1351 1
JET-MAIN,#108 92063H 92063-1352 1
JET-MAIN,#110 92063I 92063-1353 1
JET-MAIN,#112 92063J 92063-1354 1
JET-MAIN,#115 92063K 92063-1355 1
JET-MAIN,#118 92063L 92063-1356 1
JET-MAIN,#120 92063M 92063-1357 1
JET-MAIN,#122 92063N 92063-1358 1
JET-MAIN,#138 92063O 92063-1359 1
JET-MAIN,#140 92063P 92063-1360 1
JET-MAIN,#142 92063Q 92063-1361 1
JET-MAIN,#145 92063R 92063-1362 1
JET-MAIN,#148 92063S 92063-1363 1
JET-MAIN,#150 92063T 92063-1364 1
JET-MAIN,#152 92063U 92063-1365 1
JET-MAIN,#155 92063V 92063-1366 1
JET-MAIN,#158 92063W 92063-1367 1
JET-MAIN,#160 92063X 92063-1368 1
JET-MAIN,#162 92063Y 92063-1369 1
JET-MAIN,#165 92063Z 92063-1370 1
JET-MAIN,#168 920630 92063-1371 1
JET-MAIN,#170 920631 92063-1372 1
JET-MAIN,#172 920632 92063-1373 1
JET-MAIN,#175 920633 92063-1374 1
JET-MAIN,#178 920634 92063-1375 1
JET-MAIN,#180 920635 92063-1376 1
JET-MAIN,#182 920636 92063-1377 1
JET-MAIN,#185 920637 92063-1378 1
JET-MAIN,#188 920638 92063-1379 1
JET-MAIN,#190 920639 92063-1380 1
JET-PILOT,#52 92064 92064-1130 1
JET-PILOT,#35 92064A 92064-1138 1
JET-PILOT,#38 92064B 92064-1139 1
JET-PILOT,#40 92064C 92064-1140 1
JET-PILOT,#42 92064D 92064-1141 1
JET-PILOT,#45 92064E 92064-1142 1
JET-PILOT,#48 92064F 92064-1143 1
JET-PILOT,#50 92064G 92064-1144 1
JET-PILOT,#55 92064H 92064-1145 1
JET-PILOT,#58 92064I 92064-1146 1
JET-PILOT,#60 92064J 92064-1147 1
JET-PILOT,#62 92064K 92064-1148 1
JET-PILOT,#65 92064L 92064-1149 1
JET-PILOT,#68 92064M 92064-1150 1
JET-PILOT,#70 92064N 92064-1151 1
JET-PILOT,#72 92064O 92064-1152 1
JET-PILOT,#75 92064P 92064-1153 1
JET-PILOT,#78 92064Q 92064-1154 1
JET-PILOT,#80 92064R 92064-1155 1
