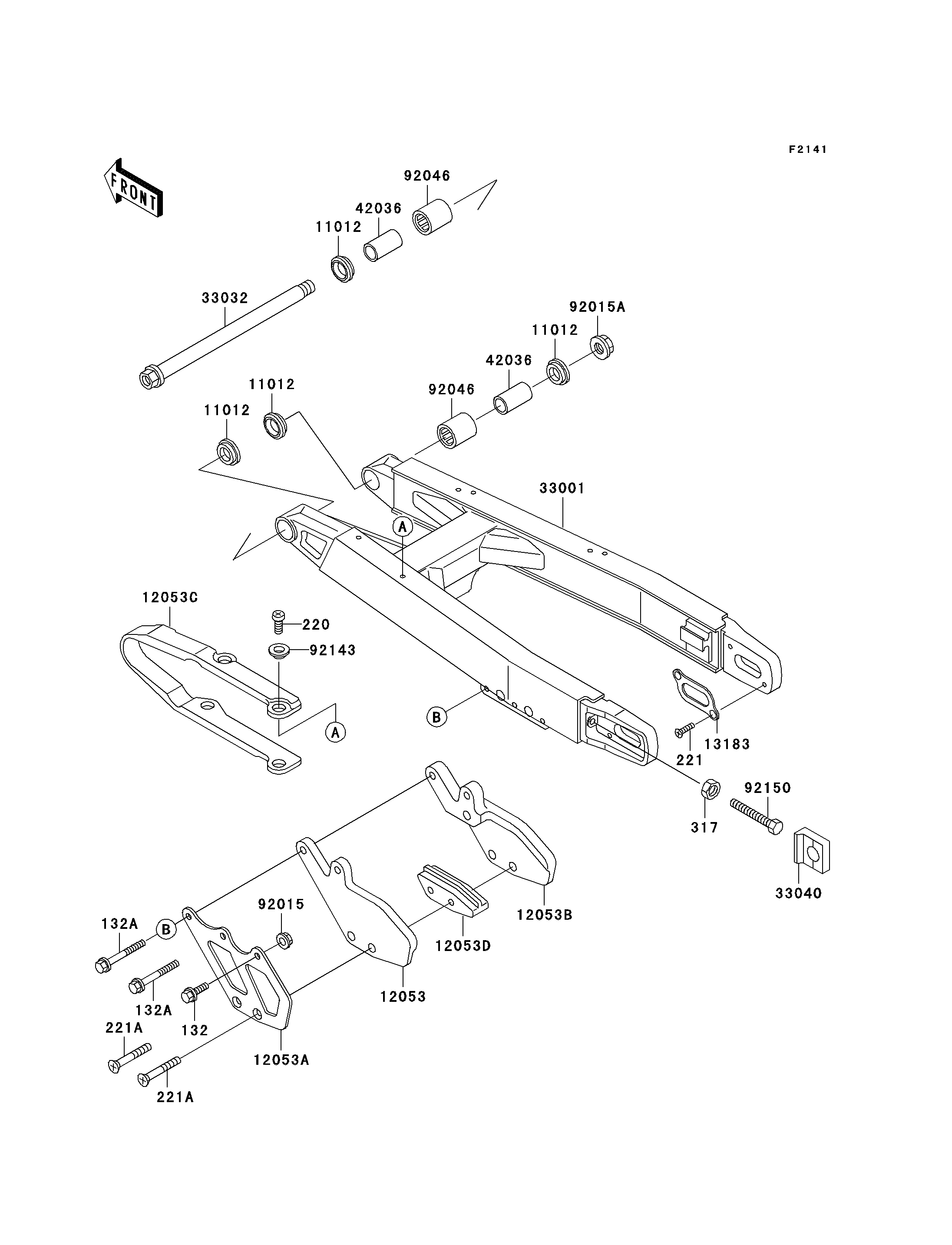

Parts Diagrams |
132
132A
132A
220
221
221A
221A
317
11012
11012
11012
11012
12053
12053A
12053B
12053C
12053D
13183
33001
33032
33040
42036
42036
92015
92015A
92046
92046
92143
92150
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132G0616 | 1 | ||
BOLT-FLANGED-SMALL | 132A | 132G0635 | 2 | ||
SCREW-PAN-CROS,6X8 | 220 | 220B0608 | 4 | ||
SCREW-CSK-CROS | 221 | 221B0510 | 4 | ||
SCREW-CSK-CROS,6X45 | 221A | 221B0645 | 2 | ||
NUT-HEX-SMALL,8MM | 317 | 317G0800 | 2 | ||
CAP,SWING ARM | 11012 | 11012-1259 | 4 | ||
GUIDE-CHAIN,RR,INSIDE | 12053 | 12053-1234 | 1 | ||
GUIDE-CHAIN,RR,OUTSIDE | 12053A | 12053-1235 | 1 | ||
GUIDE-CHAIN,RR,OUTSIDE | 12053B | 12053-1236 | 1 | ||
GUIDE-CHAIN,FR | 12053C | 12053-1240 | 1 | ||
GUIDE-CHAIN,DRIVE,RR,INSIDE | 12053D | 12053-1270 | 1 | ||
PLATE | 13183 | 13183-1546 | 2 | ||
ARM-COMP-SWING,SILVER | 33001 | 33001-1496-TX | 1 | ||
SHAFT-SWING ARM | 33032 | 33032-1137 | 1 | ||
ADJUSTER-CHAIN | 33040 | 33040-1106 | 2 | ||
SLEEVE,SWING ARM | 42036 | 42036-1064 | 2 | ||
NUT,FLANGED,6MM | 92015 | 92015-1078 | 1 | ||
NUT,14MM | 92015A | 92015-1407 | 1 | ||
BEARING-NEEDLE,TA2030Z | 92046 | 92046-1128 | 2 | ||
COLLAR | 92143 | 92143-1156 | 4 | ||
BOLT,8X55 | 92150 | 92150-1385 | 2 |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS,6X8 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW-CSK-CROS | |
REF # | 221 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW-CSK-CROS,6X45 | |
REF # | 221A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT-HEX-SMALL,8MM | |
REF # | 317 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP,SWING ARM | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,RR,INSIDE | |
REF # | 12053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,RR,OUTSIDE | |
REF # | 12053A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,RR,OUTSIDE | |
REF # | 12053B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,FR | |
REF # | 12053C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,DRIVE,RR,INSIDE | |
REF # | 12053D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE | |
REF # | 13183 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
ARM-COMP-SWING,SILVER | |
REF # | 33001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-SWING ARM | |
REF # | 33032 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ADJUSTER-CHAIN | |
REF # | 33040 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SLEEVE,SWING ARM | |
REF # | 42036 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,FLANGED,6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,14MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,TA2030Z | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,8X55 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
