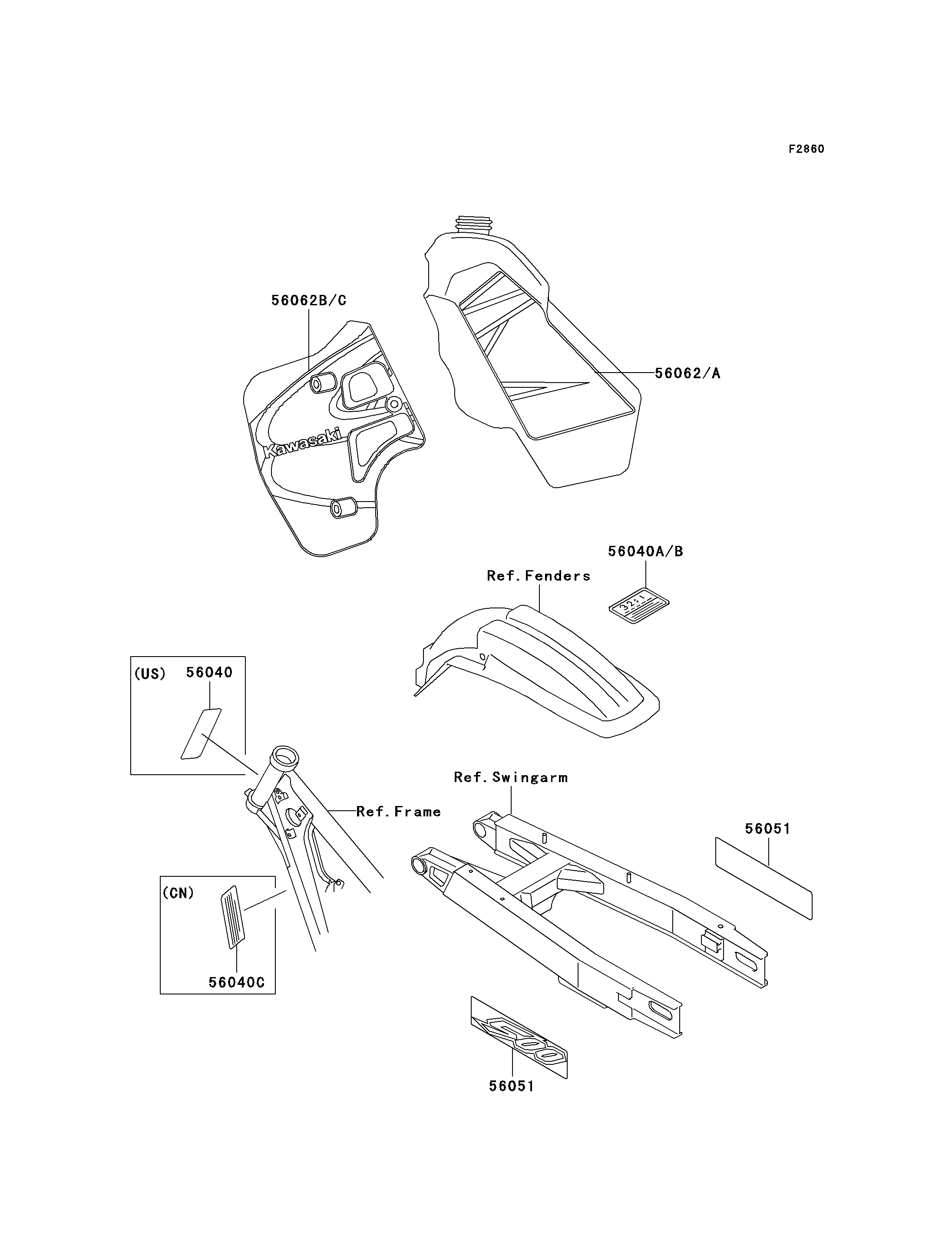

56051
56051
56062
56062A
56062B
56062C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SWING ARM,500 56051 56051-1658 2
PATTERN,FUEL TANK,LH 56062 56062-1155 1
PATTERN,FUEL TANK,RH 56062A 56062-1156 1
PATTERN,SHROUD,LH 56062B 56062-1157 1
PATTERN,SHROUD,RH 56062C 56062-1158 1
LABEL-WARNING,NOISE 56040 56040-1101 1 US
LABEL-WARNING,GASOLINE/OIL 56040A 56040-1129 1 US
LABEL-WARNING,GASOLINE/OIL 56040B 56040-1306 1 CN
LABEL-WARNING,WARRANTY 56040C 56040-1335 1 CN
