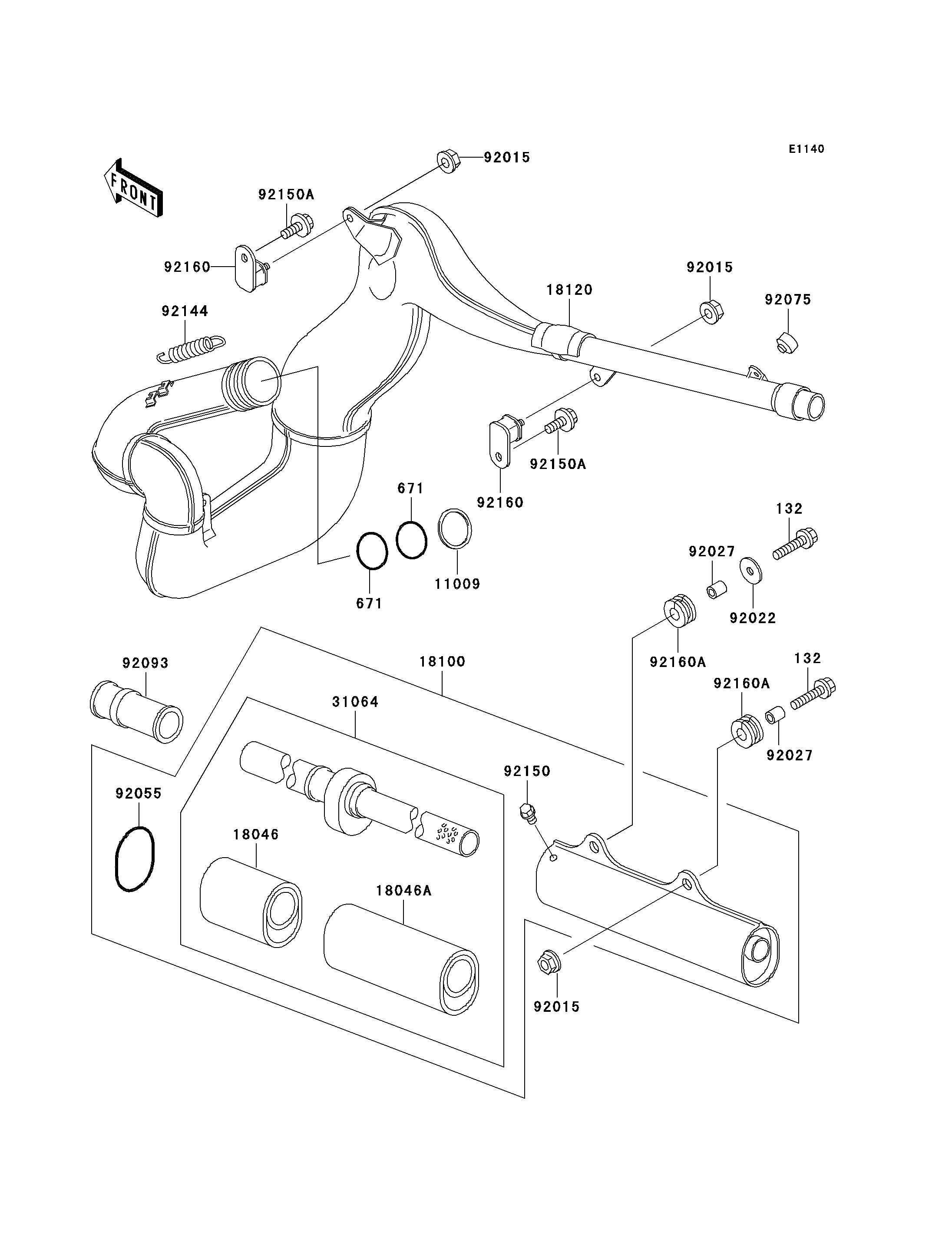

2004 KX500 - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132
671
671
11009
18046
18046A
18100
18120
31064
92015
92015
92015
92022
92027
92027
92055
92075
92093
92144
92150
92150A
92150A
92160
92160
92160A
92160A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0630 2
O RING,50MM 671 671E2550 2
GASKET,EXHAUST PIPE 11009 11009-1949 1
WOOL,L=158 18046 18046-1113 1
WOOL,L=200 18046A 18046-1114 1
BODY-ASSY-MUFFLER 18100 18100-1064 1
CHAMBER-EXHAUST 18120 18120-1094 1
PIPE-COMP,MUFFLER 31064 31064-1170 1
NUT,FLANGED,6MM 92015 92015-1078 5
WASHER,6.5X22X1.6 92022 92022-237 1
COLLAR,6.8X10X11.5 92027 92027-1210 2
RING-O,BAFFLE PIPE 92055 92055-1445 1
DAMPER 92075 92075-1598 2
SEAL 92093 92093-1279 1
SPRING 92144 92144-1035 3
BOLT,5X8 92150 92150-1406 2
BOLT,6X12 92150A 92150-1435 3
DAMPER,MUFFLER,FR 92160 92160-1176 3
DAMPER,MUFFLER FITTING 92160A 92160-1913 2
