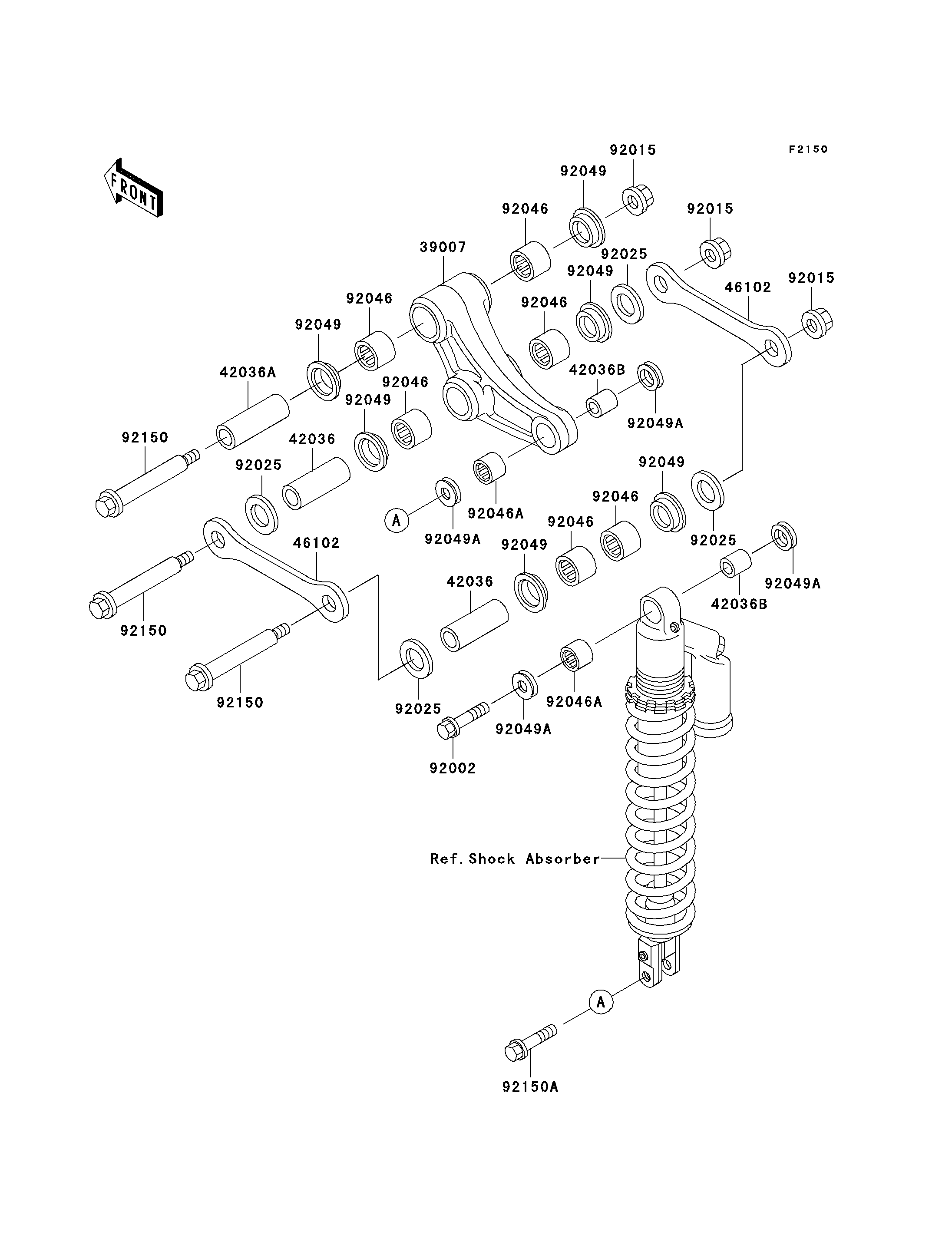

Parts Diagrams |
39007
42036
42036
42036A
42036B
42036B
46102
46102
92002
92015
92015
92015
92025
92025
92025
92025
92046
92046
92046
92046
92046
92046
92046A
92046A
92049
92049
92049
92049
92049
92049
92049A
92049A
92049A
92049A
92150
92150
92150
92150A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ARM-SUSP,UNI TRAK | 39007 | 39007-1186 | 1 | ||
| SLEEVE,15X22X57 | 42036 | 42036-1245 | 2 | ||
| SLEEVE,15X22X63 | 42036A | 42036-1246 | 1 | ||
| SLEEVE,10X16X19 | 42036B | 42036-1248 | 2 | ||
| ROD,SUSPENSION | 46102 | 46102-1253 | 2 | ||
| BOLT,FLANGED,10X53 | 92002 | 92002-1936 | 1 | ||
| NUT,FLANGED,12MM | 92015 | 92015-1433 | 3 | ||
| SHIM,15.3X27.5X0.6 | 92025 | 92025-1135 | 4 | ||
| BEARING-NEEDLE,F-2220 | 92046 | 92046-1162 | 6 | ||
| BEARING-NEEDLE,16BM2212 | 92046A | 92046-1192 | 2 | ||
| SEAL-OIL,MHA22 28 5.7F | 92049 | 92049-1254 | 6 | ||
| SEAL-OIL | 92049A | 92049-1330 | 4 | ||
| BOLT,ARM,12MM | 92150 | 92150-1195 | 3 | ||
| BOLT,FLANGED,10X40 | 92150A | 92150-1711 | 1 |
