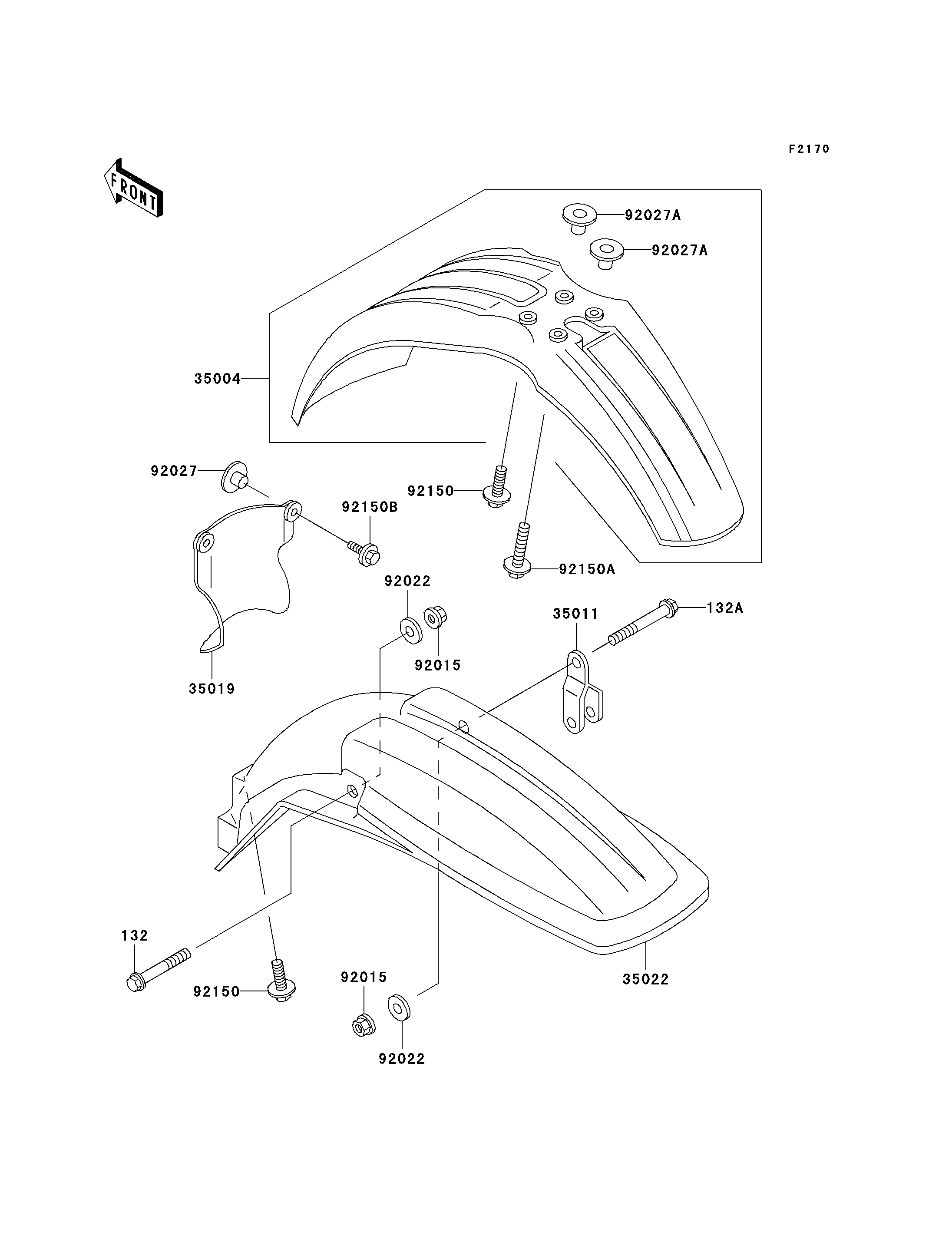

Parts Diagrams |
132
132A
35004
35011
35019
35022
92015
92015
92022
92022
92027
92027A
92027A
92150
92150
92150A
92150B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL | 132 | 132G0640 | 1 | ||
| BOLT-FLANGED-SMALL | 132A | 132G0645 | 1 | ||
| FENDER-FRONT,L.GREEN | 35004 | 35004-1318-6W | 1 | ||
| STAY,MUFFLER | 35011 | 35011-1534 | 1 | ||
| FLAP,AIR FILTER | 35019 | 35019-1159 | 1 | ||
| FENDER-COMP-REAR,L.GREEN | 35022 | 35022-1241-6W | 1 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1078 | 2 | ||
| WASHER,6.5X20X1.6 | 92022 | 92022-125 | 2 | ||
| COLLAR | 92027 | 92027-1794 | 2 | ||
| COLLAR | 92027A | 92027-1936 | 4 | ||
| BOLT,6X20 | 92150 | 92150-1339 | 4 | ||
| BOLT,FLANGED,6X30 | 92150A | 92150-1486 | 2 | ||
| BOLT,FLANGED,6X16 | 92150B | 92150-1506 | 2 |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-FRONT,L.GREEN | |
| REF # | 35004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,MUFFLER | |
| REF # | 35011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLAP,AIR FILTER | |
| REF # | 35019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-COMP-REAR,L.GREEN | |
| REF # | 35022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.6 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X30 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X16 | |
| REF # | 92150B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
