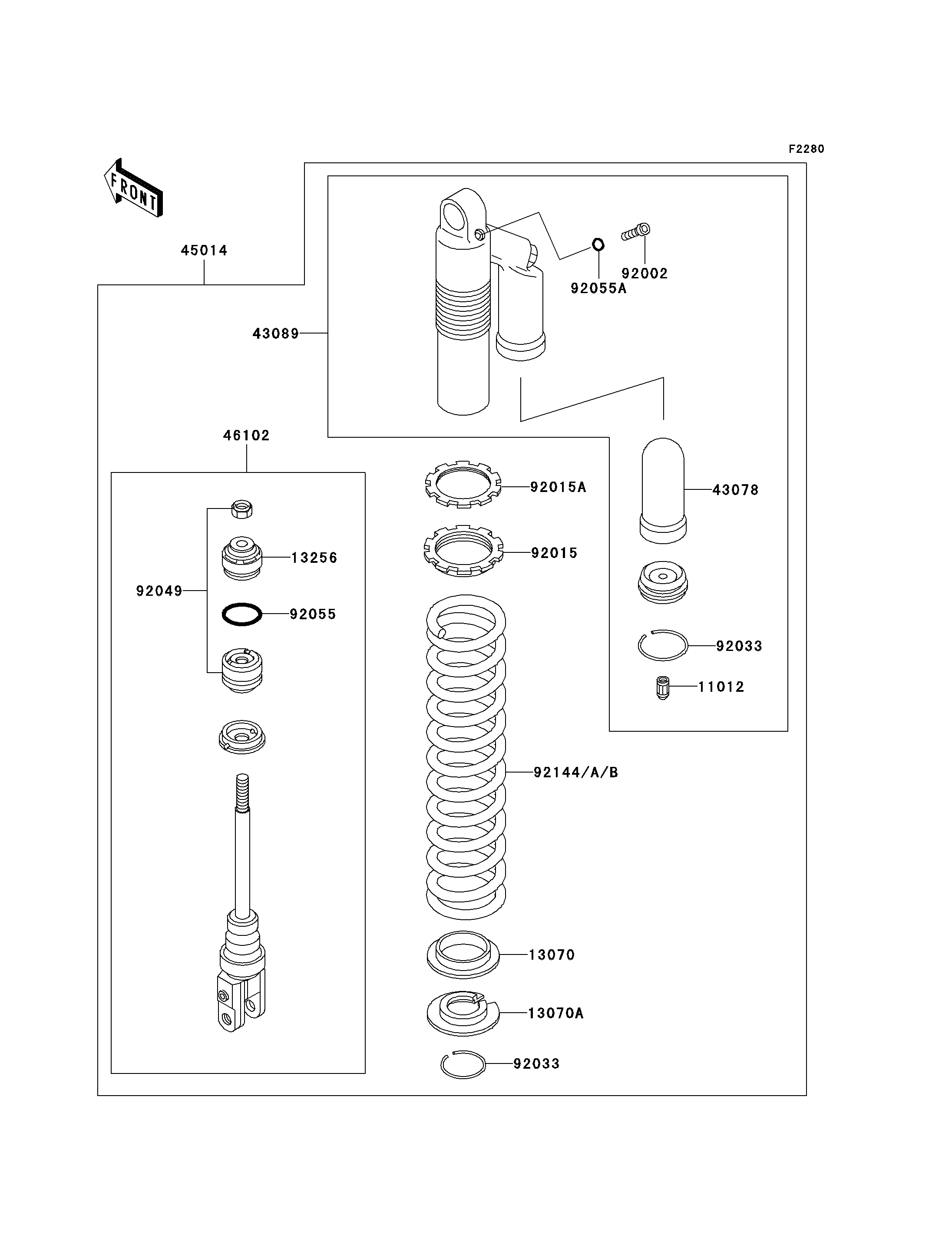

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,AIR VALVE 11012 11012-1552 1
GUIDE,SPRING 13070 13070-1161 1
GUIDE,SPRING 13070A 13070-1165 1
PISTON,SHOCKABSORBER 13256 13256-1057 1
RESERVOIR,SHOCKABSORBER 43078 43078-1094 1
CYLINDER-SHOCKABSORBER 43089 43089-1160 1
SHOCKABSORBER,I.SILVER 45014 45014-1652-8V 1
ROD,SHOCKABSORBER 46102 46102-1405 1
BOLT,DRAIN 92002 92002-1955 1
NUT,SPRING ADJUST 92015 92015-1703 1
NUT,SPRING ADJUST LOCK 92015A 92015-1704 1
RING-SNAP 92033 92033-1209 2
SEAL-OIL 92049 92049-1407 1
RING-O,ROD 92055 92055-1346 1
RING-O 92055A 92055-1383 1
SPRING,SHOCKABSORBER,K=5.3,SIL 92144 92144-1505-8V 1 (OPTION)
SPRING,SHOCKABSORBER,K=5.5,SIL 92144A 92144-1506-8V 1
SPRING,SHOCKABSORBER,K=5.7,SIL 92144B 92144-1929-8V 1 (OPTION)
