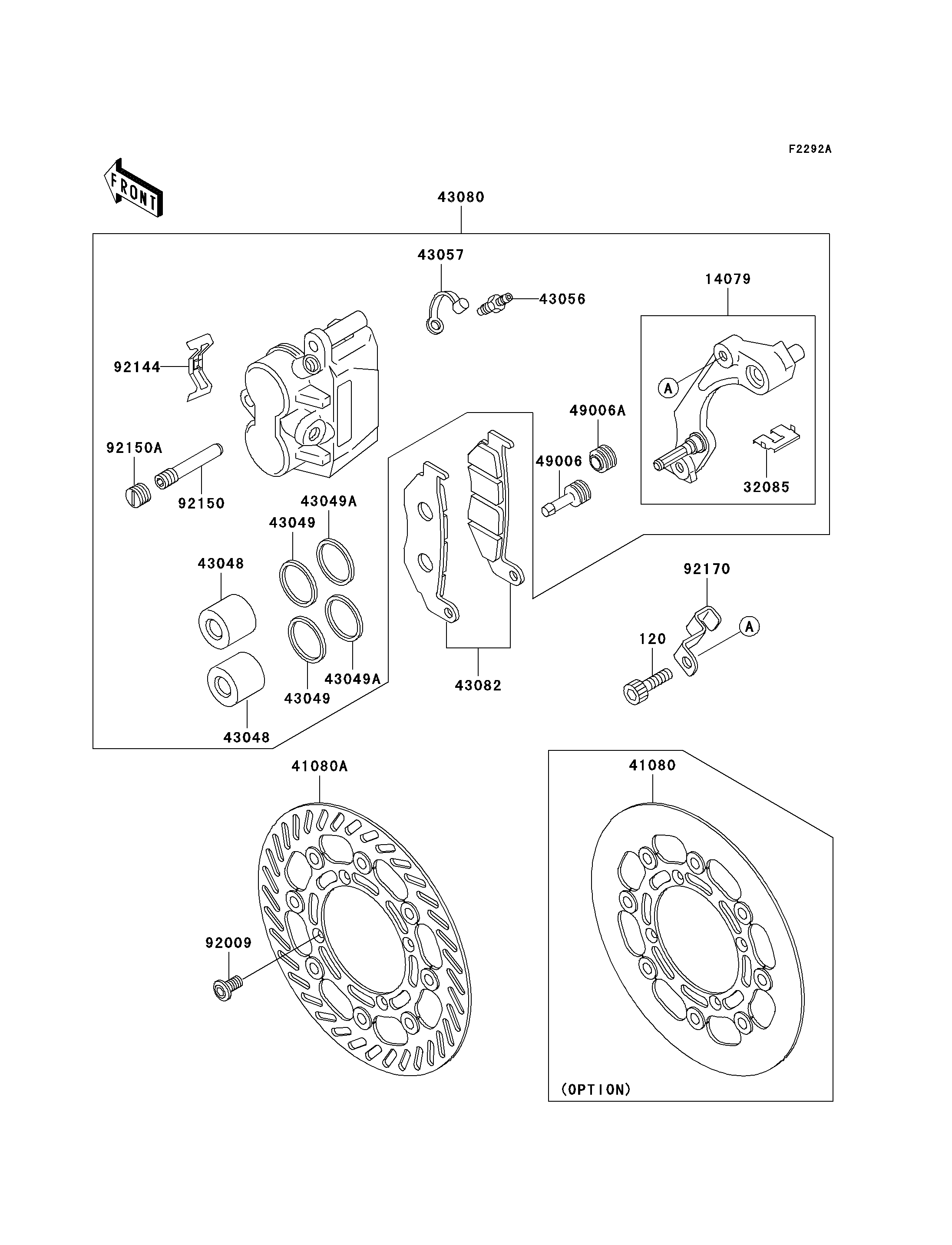

Parts Diagrams |
120
14079
32085
41080
41080A
43048
43048
43049
43049
43049A
43049A
43056
43057
43080
43082
49006
49006A
92009
92144
92150
92150A
92170
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET,8X40 | 120 | 120P0840 | 2 | ||
HOLDER-ASSY,FRONT CALIPER | 14079 | 14079-1097 | 1 | ||
STOPPER,PAD | 32085 | 32085-1361 | 1 | ||
DISC,FR | 41080 | 41080-1365 | 1 | (OPTION) | |
DISC,FR | 41080A | 41080-1387 | 1 | ||
PISTON-CALIPER | 43048 | 43048-1064 | 2 | ||
PACKING,PISTON SEAL | 43049 | 43049-1060 | 2 | ||
PACKING,PISTON SEAL | 43049A | 43049-1061 | 2 | ||
BREATHER-BRAKE | 43056 | 43056-1055 | 1 | ||
CAP-BREATHER | 43057 | 43057-1001 | 1 | ||
CALIPER-SUB-ASSY,FR,LH | 43080 | 43080-5119 | 1 | ||
PAD-ASSY-BRAKE | 43082 | 43082-1172 | 1 | ||
BOOT,CALIPER | 49006 | 49006-1088 | 1 | ||
BOOT,CALIPER | 49006A | 49006-1242 | 1 | ||
SCREW,6X14 | 92009 | 92009-1546 | 4 | ||
SPRING,PAD | 92144 | 92144-1721 | 1 | ||
BOLT,HANGER | 92150 | 92150-1691 | 1 | ||
BOLT,PLUG | 92150A | 92150-1692 | 1 | ||
CLAMP,HOSE | 92170 | 92170-1404 | 1 |
BOLT-SOCKET,8X40 | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOLDER-ASSY,FRONT CALIPER | |
REF # | 14079 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STOPPER,PAD | |
REF # | 32085 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DISC,FR | |
REF # | 41080 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
DISC,FR | |
REF # | 41080A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON-CALIPER | |
REF # | 43048 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PACKING,PISTON SEAL | |
REF # | 43049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PACKING,PISTON SEAL | |
REF # | 43049A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BREATHER-BRAKE | |
REF # | 43056 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-BREATHER | |
REF # | 43057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CALIPER-SUB-ASSY,FR,LH | |
REF # | 43080 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD-ASSY-BRAKE | |
REF # | 43082 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,CALIPER | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,CALIPER | |
REF # | 49006A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X14 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SPRING,PAD | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,HANGER | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,PLUG | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,HOSE | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
