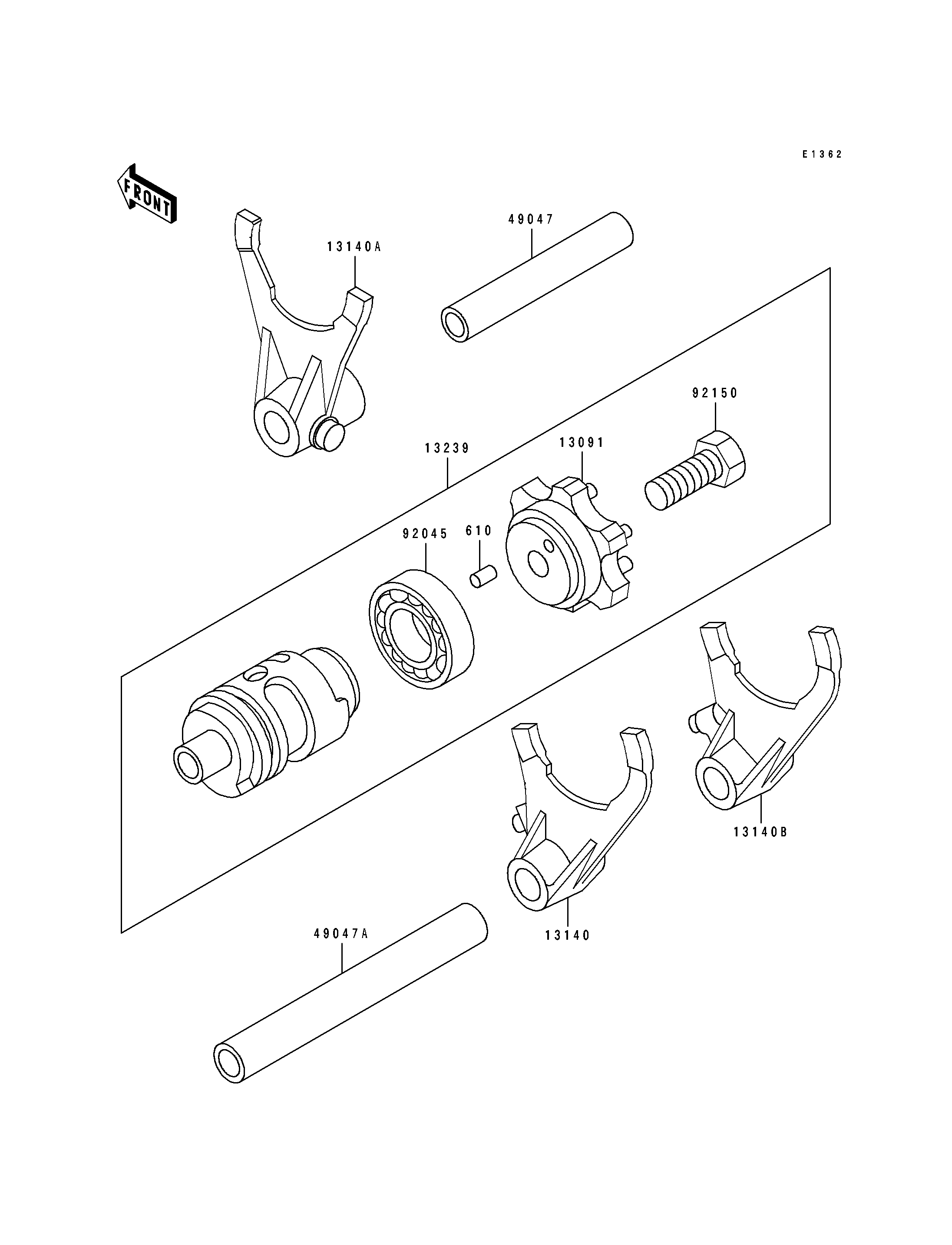

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,CHANGE DRUM 13091 13091-1555 1
FORK-SHIFT,2ND&3RD 13140 13140-1058 1
FORK-SHIFT,4TH&TOP 13140A 13140-1059 1
FORK-SHIFT,LOW 13140B 13140-1142 1
DRUM-ASSY-CHANGE 13239 13239-1143 1
ROD-SHIFT,5.9X10X64.5 49047 49047-1063 1
ROD-SHIFT,5.9X10X81 49047A 49047-1064 1
BEARING-BALL,#6905 92045 92045-036 1
BOLT,8X18 92150 92150-1490 1
ROLLER,4X8 610 610A0408 1
