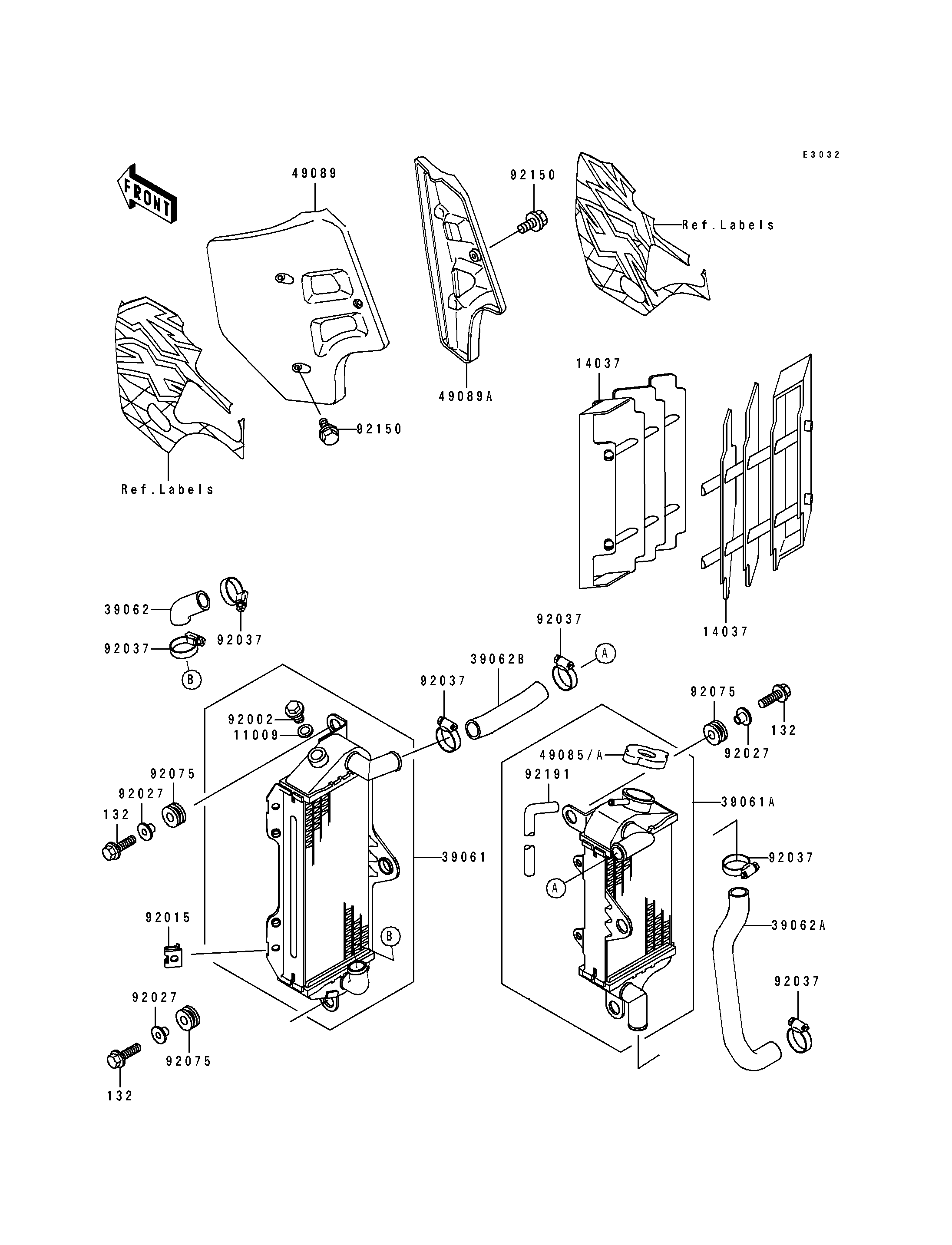

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,DRAIN BOLT | 11009 | 11009-1152 | 1 | ||
SCREEN,WHITE | 14037 | 14037-1099-RZ | 2 | ||
RADIATOR-ASSY,LH | 39061 | 39061-1235 | 1 | ||
RADIATOR-ASSY,RH | 39061A | 39061-1236 | 1 | ||
HOSE-COOLING,RADIATOR,LH | 39062 | 39062-1138 | 1 | ||
HOSE-COOLING,RADIATOR,RH-PUMP | 39062A | 39062-1209 | 1 | ||
HOSE-COOLING,RADIATOR LH-RH | 39062B | 39062-1274 | 1 | ||
CAP-ASSY-PRESSURE,P=1.6 | 49085 | 49085-1059 | 1 | (OPTION) | |
CAP-ASSY-PRESSURE | 49085A | 49085-1070 | 1 | ||
SHROUD-ENGINE,LH,L.GREEN | 49089 | 49089-1087-6W | 1 | ||
SHROUD-ENGINE,RH,L.GREEN | 49089A | 49089-1088-6W | 1 | ||
BOLT,RADIATOR DRAIN | 92002 | 92002-1682 | 1 | ||
NUT | 92015 | 92015-1487 | 4 | ||
COLLAR,L=11.1 | 92027 | 92027-194 | 6 | ||
CLAMP,COOLING HOSE | 92037 | 92037-1589 | 6 | ||
DAMPER | 92075 | 92075-209 | 6 | ||
BOLT,6X14 | 92150 | 92150-1340 | 6 | ||
TUBE,5X8X700 | 92191 | 92191-1122 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132G0620 | 6 |
